Stretchers

Mobile Surgi-Stretcher

A mobile surgical platform for EYE/ENT and plastic surgery procedures. Pre-induction, transport, treatment, and recovery all on one unit. The renowned articulating head piece is the surgeon’s preference because the dual operating knobs allow infinite adjustability and precise microscopic movement of the head section. The Hausted Surgi-Stretcher series is designed with a low-profile head piece allowing site access for both superior (over brow) and lateral (side approach) procedures.

Patient Outcome and Safety Benefits

  • Streamline patient efficiency using one stretcher entire patient experience.
  • Reduces staff time and prevents staff injury with fewer patient transfers during phases of care.
  • Reduce staff involvement in recover because patients can position themselves with handheld control.

Clinical Environment

  • Ophthalmology
  • Surgery

Features

  • Low profile height adjustable articulating headpiece with dual operation control knobs
  • Stainless steel 4-leg, 3-position Retracto Rails with top caps that eliminate patient transfer gap
  • Brake and center track steering activation from all 4 corners
  • 8 inches (20 cm) Easy roll casters
  • Painted cold roll steel patient surface
  • Seamless thermoformed case cover with storage and built-In oxygen tank holder
  • Heavy-duty sorner and full perimeter non-marring bumper system

Included Accessories

  • Post-Op/Pre-Op head section
  • 3 stage permanently mounted IV pole
  • Built-in O2 tank holder (Base)
  • Safety straps

Available as motorized with battery back-up or hydraulic.

Mobile Powered Surgi-Stretcher (5E8) Series

The powered Surgi-Stretcher Series (5E8) is a mobile surgical platform for EYE/ENT and plastic surgery procedures. The easy-to-use electric/battery powered controlled backrest and leg ­flex operated controls are available for height adjustment, backrest, leg section, and Trendelenburg/Reverse Trendelenburg. Battery back-up allows power functions when not plugged in.

Mobile Powered Surgi Stretcher.
Hover for Zoom

5E8EYEST [120V], 5D8EYEST [220V]

Features

  • Motorized controls for backrest: 0° – 80° – with emergency quick drop
  • Height adjustment 22 inches (56 cm) – 30 inches (76 cm)
  • Battery backup for full operation during transport or procedures
  • Patient/attendant Pendant Control Operates backrest, knee-flex and height
  • Attendant control tucks under foot end and operates backrest, knee-flex, height
  • Knee flex: 0° – 60°
  • Weight Capacity – evenly distributed: 720 lb (327 kg)

5E8 Models

5E8EYEST [120V], 5D8EYEST [220V] standard width

  • Patient surface: nominal 25 inches (64 cm) x 81.50 inches (207 cm)

5E8EYXST [120V], 5D8EYXST [220V] wide width

  • Patient surface: 30 inches (76 cm) x 81.50 inches (207 cm)

Accessories

  • Post-Op/Pre-Op head section
  • 3 stage permanently mounted IV pole
  • Built-in O2 tank holder (Base)
  • Safety straps 3 inches (8 cm)
  • Comfort mattress pad, navy

Optional Accessories

  • Oxyflex II oxygen delivery system, well mount – HSA400600
  • Oxyflex II oxygen delivery system disposable diffusion trays – HSA008000
  • Full “U” wrist rest – HSA078600
  • Dual lateral wrist rest – HSA078500
  • Full “U” wrist rest (large) – HSP100400
  • Contoured headrest set (2, 3, 4 inches) – H0101ST
  • Contoured headrest, navy, 4 inches (10.20 cm) – HSA063500B
  • Contoured headrest, navy, 3 inches (7.60 cm) – HP150830448B
  • Contoured headrest, navy 2 inches (5 cm) – HP150830447b
  • Vertical oxygen tank holder – H12845000
  • Armboard with 2 inches (5 cm) Pad – HSA400500
  • Surgical accessory rail – HSA400700
  • Surgical accessory rail (Retracto Rails) – H076336
  • Electric foot control, HI/Low – HSA080000
  • Pre-Op/Post-Op head extension – HSA078700
  • Footboard with monitor shelf and chart holder – H06883600
  • Footboard with monitor shelf and chart holder – H06884600
  • Fixed height IV pole, 42 inches (107 cm) – H000E1700
  • Telescoping IV pole 27 in (68 cm) – 54 inches (137 cm) – H000018
  • Monitor shelf (wide) – H00wn4500
  • Monitor shelf (standard width) – H00N4500
  • Universal patient tray – H06536600
  • Push handles (foot end only) – H07565600
  • Rail set, 4 leg Retracto Rail – HPD0602
  • Safety straps with buckle – H00001200

Related Documents (PDF Format)

Return to Top

Mobile Hydraulic Surgi-Stretcher (578) Series

The hydraulic Surgi-Stretcher Series (578) is a mobile surgical platform for EYE/ENT and plastic surgery procedures. The easy-to-use hydraulic/foot-end operated controlled backrest and leg ­flex operated controls are available for height adjustment, backrest, leg section, and Trendelenburg/Reverse Trendelenburg.

578 Surgical Stretcher
Hover for Zoom

578EYEST

Features

  • Dual side foot pedal hydraulic controls for height adjustment 24 inches (61 cm) – 32 inches (81 cm)
  • Trendelenburg: 0° – 16°
  • Crank operated backrest adjusts 0° – 90° provides stability during procedures
  • Crank operated knee-flex adjusts 0° – 75°
  • Patient surface: nominal 25 inches (64 cm)  x 81.50 inches (207 cm)

Accessories

  • Post-Op/Pre-Op head section
  • 3 Stage permanently mounted IV pole
  • Built-in O2 tank holder (base)
  • Safety straps
  • 3 inches (8 cm) comfort mattress pad, navy

 Optional Accessories

  • Oxyflex II Oxygen delivery system, well mount – HSA400600
  • Oxyflex II Oxygen delivery system disposable diffusion trays – HSA008000
  • Full “U” wrist rest – HSA078600
  • Dual lateral wrist rest – HSA078500
  • Full “U” wrist rest large – HSP100400
  • Contoured headrest set (2, 3, 4 inches) – H0101ST
  • Contoured headrest, navy, 4 inches (10.2 cm) – HSA063500B
  • Contoured headrest, navy, 3 inches (7.60 cm) – HP150830448B
  • Contoured headrest, navy, 2 inches (5 cm) – HP150830447B
  • Pre-Op/Post-Op head extension – HSA078700
  • Pre-Op/Post-Op head extension (wide) – HSA079000
  • Footboard with monitor shelf and chart holder – H06884600
  • Footboard with shart holder – H00CRW6B00
  • Fixed height IV pole, 42 inches (107 cm) – H000E1700
  • Vertical oxygen tank holder – H12845000
  • Armboard with 2 inches (5 cm) Pad – HSA400500
  • 3 inches (8 cm) comfort mattress pad, navy
  • Surgical accessory rail – HSA400700
  • Surgical accessory rail (Retracto Rails) – H076336
  • Telescoping IV pole 27 inches (68 cm) – 54 inches (137 cm) – H00018
  • Monitor shelf (Standard Width) – H00N4500
  • Vertical oxygen tank holder assembly – H12845000
  • Paper roll holder – H06925700
  • Universal patient tray – H06536600
  • Push handles – H07565600
  • Rail set, 4 legs Retracto Rail – HPD0602
  • Safety straps with buckle – H00001200

578EYEST standard width

  • Patient surface: nominal 25 inches (64 cm) x 81.50 inches (207 cm)

578EYXST  wide width

  • Patient surface: 30 inches (76 cm) x 81.50 inches (207 cm)

Related Documents (PDF Format)

User Manuals

Return to Top

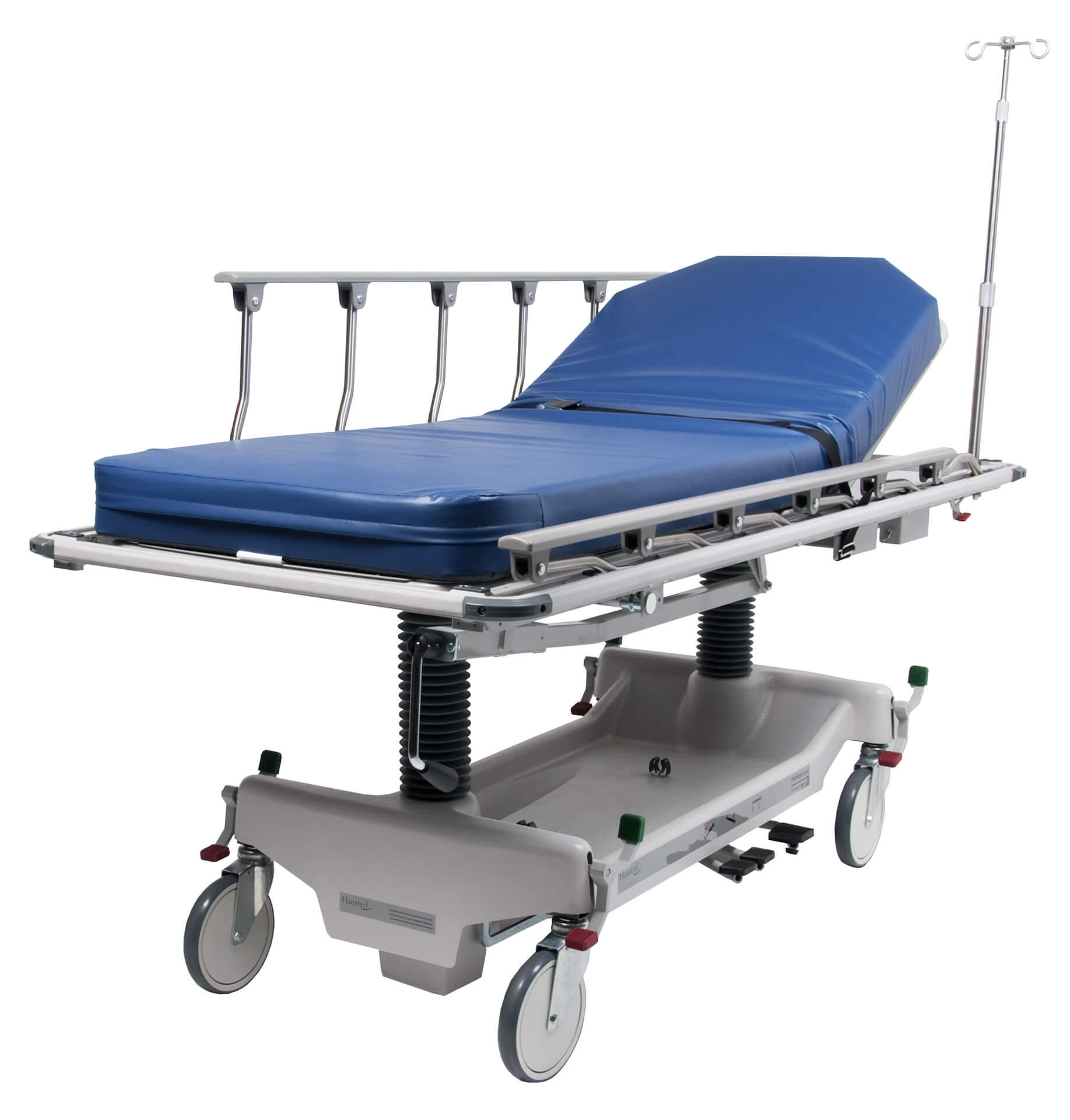

Horizon™ Retracto™ Rail Stretcher

 The 462 Horizon Retracto Rail stretcher is a dependable choice for general transportation needs. Featuring choice of 500 lb  (227 kg) or 800 lb (363 kg) weight capacity and standard or wide widths to accommodate most patients comfortably. Center Track Steering, Dual Side foot controls, and Pneumatic Assist Backrest provide greater patient and caregiver safety.

Retracto Rail Surgical Stretcher
Hover for Zoom

Horizon Retracto Rail Hydraulic Series with Stationary Leg / Knee Section

462 Series

Clinical Environment

  • Hospital Transport
  • Surgical
  • Outpatient

Features

  • Dual side foot controls for easy height adjustment and Trendelenburg positioning
  • Pneumatic assist backrest adjusts 0° – 90° for easy patient positioning and enhanced staff safety
  • Center track steering for superb mobility
  • Brake and steer controls accessible from all four corners
  • Knee flex feature for enhanced patient comfort is available on several models
  • Stainless steel 3-position Retracto rails offer convenient patient access
  • Comfort mattress pad

462EMCST &  462GMCST

  • Patient Surface: 25 inches (63.5 cm)   x 76 inches (193 cm)
  • Maximum Weight Capacity – evenly distributed: 500 lb (227 kg)

462GMCST also features Crank Operated Knee-Flex Adjusts 0 ̊ – 70 ̊ / Manual Lower Limb Lift

462FMCST & 462HMCST

  • Patient Surface: 30 inches (76 cm)  x 76 inches (193 cm)
  • Maximum Weight Capacity – evenly distributed: 800 lb (363 kg)

462HMCST also features Crank Operated Knee-Flex Adjusts 0 ̊ – 70 ̊ / Manual Lower Limb Lift

Accessories

  • 3 Stage permanently mounted IV pole
  • Built-in oxygen tank holder (base)
  • Safety strap

 Optional Accessories

  • Oxygen tank holder – H12845000
  • X-Ray cassette holder – H00005400
  • Push handles – H07565600
  • 4 inches (10 cm) comfort mattress pad, navy
  • Surgical accessory (Retracto Rails) – H076336
  • Armboard and surgical rail adapter – H07633400
  • Drainage bag hook – H12884A
  • Articulating headrest 22 inches (57 cm) – H131490
  • Articulating headrest 27 inches (69 cm) – H131495
  • Footboard with monitor shelf and chart holder  H0688360, H06884600
  • Head/Footboard (stationary) – H00006B00, H000W6B00
  • Footboard with chart holder – H00CR6B00
  • Footboard with chart holder (Extra-Wide) – HOCRW6B00
  • Heel Stirrups with mounting adapter – H00N16A00
  • Fixed height IV pole, 42 inches (107 cm) – H000E1700
  • Telescoping IV pole 27 inches (68 cm) – 54 inches (137cm) – H000018
  • Monitor shelf (wide) – H00WN4500
  • Monitor shelf (standard width) – H000N4500
  • Vertical oxygen tank holder assembly – H12845000
  • Paper roll holder – H06925700
  • Universal patient tray – H0653660T
  • Under Fowler utility tray – H13317000
  • Under Fowler utility tray (Extra-Wide) – H13317100
  • Push handle assembly – H07565600
  • Retracto Rails covers – H076336
  • Rail pad cover (6 leg Retracto rail) – H07562600
  • Safety straps with buckle – H00001200

User Manuals

Return to Top

Horizon™ AirGlide™ Stretcher

The AirGlide Stretchers are equipped with powder-coated rails and a clear sealer coat with Ion Technology for easy cleaning when supporting patients through transport, treatment and recovery functions.

Hover for Zoom

462APAST & 462CPAST

Features

  • Weight Capacity – evenly distributed: 800 lb (363 kg) (DPAST model)
  • Full-length patient protection with Pneumatic Assist side rails that are higher and longer for enhanced patient safety
  • Dual side foot controls for easy height adjustment and Trendelenburg positioning
  • Center track steering for superb mobility
  • Brake and steer controls accessible from all four corners
  • The open base design gives ample storage space to hold oxygen tanks and patient belongings
  • 4 inch (10 cm) Comfort mattress pad with Sure-Check cover

462APAST & 462CPAST

  • Patient surface: 28 inches (71 cm) x 76 inches (193 cm)
  • Stationary leg / knee Section 462APAST
  • 0° – 70° knee flex 462CPAST
  • 500 lb (227 kg) capacity, evenly distributed

Accessories

  • 3 Stage permanently mounted IV pole
  • Built-in oxygen tank holder (Base)
  • Safety strap

Optional Accessories

  • Push handles (APAST/CPAST models) – H07566400
  • Oxygen tank holder – H12845000
  • X-Ray cassette holder – H00005400
  • 4 inch (10 cm) comfort mattress pad, navy
  • Surgical accessory rail (AirGlide Rails) – H076540
  • Armboard with 1 inch (2.50 cm) pad and adapter
  • Standard articulating headrest 18 inches (46 cm) – HSA094100
  • Footboard with monitor shelf and chart holder – H06883500
  • Head/Footboard with chart holder (extra wide) – H06722500
  • Heel stirrups (pair) – H00C16H00
  • Mounting adapter clamps for stirrups – H00L16M00
  • Fixed height IV pole, 42 inches (107 cm) – H000E1700
  • Telescoping IV pole 27 inches (68 cm) – 54 inches (137 cm) – H000018
  • Mobile IV stand attachment – HIVSOW00
  • Paper roll holder – H06925700
  • Universal patient tray – H0653660T
  • Push handle assembly – H07566400
  • AirGlide rails covers – H076540
  • Side rail pads – H06774100B
  • Safety straps with buckle – H00001200

462CPAST

Horizon 462 AirGlide Rail Hydraulic Series Stretcher

  • Patient surface: 28 inches (71 cm)  x 76 inches (193 cm)

Accessories

  • 3 Stage permanently mounted IV pole
  • Built-in oxygen tank holder (base)
  • Safety strap

Optional Accessories

  • Push handles (APAST/CPAST models) – H07566400
  • Oxygen tank holder – H12845000
  • X-Ray cassette holder – H00005400
  • 4 inches (10 cm) Comfort mattress pad, navy
  • Surgical accessory (AirGlide Rails) – H076540
  • Armboard with 1 inch (2.50cm) pad and adapter
  • Standard articulating headrest 18 inches (46 cm)
  • Footboard with monitor shelf and chart holder – H06883500
  • Head/Footboard with shart holder (extra wide) – H06722500
  • Heel stirrups (pair) – H00C16H00
  • Mounting adapter clamps ror stirrups – H00L16M00
  • Fixed height IV pole – H000E1700
  • Telescoping IV pole 27 inches (68 cm)- 54 in ( 137 cm) – H000018
  • Mobile IV stand – HIVSTOW00
  • Paper roll holder – H06925700
  • Universal patient tray – H0653660T
  • Push handle assembly – H07566400
  • Airglide rails covers – H076540
  • Side rail pads – H06774100B
  • Safety straps with buckle – H00001200

462DPAST

  • Patient surface: 32 inches (81 cm)  x 77 inches (196 cm)
  • Crank operated knee-flex adjusts 0°– 70° / manual lower limb lift
  • 800 lb (363 kg) capacity evenly distributed

Accessories

  • 3 Stage permanently mounted IV pole
  • Built-in oxygen tank holder (base)
  • Safety strap

Optional Accessories

  • Push handles (DPAST model) – H07566500
  • Oxygen tank holder – H12845000
  • X-Ray cassette holder – H00005400
  • Surgical accessory rail (AirGlide Rails) – H076540
  • Armboard with 1 inch (2.50 cm) pad and adapter – H06518000
  • Extra-Wide articulating headrest 21 in. (53 cm) -HSA0942
  • Footboard with monitor shelf and chart holder – H06929900
  • Head/Footboard with chart holder (stationary)- H06938100
  • Heel stirrups (Pair) – H00C16H00
  • Mounting adapter clamps for stirrups – H00L16M00
  • Fixed height IV pole, 42 inches (107 cm) – H000E1700
  • Telescoping IV pole 27 inches – 54 inches (68 cm – 137 cm) – H000018
  • Mobile IV stand attachment – HIVSTOW00
  • Paper roll holder – H06925700
  • Universal patient tray – H06925700
  • Push handle assembly – H07566500
  • Airglide rails covers – H076540
  • Slide rail pads covers – H06774100b
  • Safety straps with buckle – H00001200

User Manuals

Return to Top

Horizon™ Powered Bariatric Stretcher

The powered bariatric stretcher is designed to meet your patient management needs while versatile enough be used in every phase of care.

Bariatric Surgical Stretcher
Hover for Zoom

4E2DPAST [120V], 4D2DPAST [220V]

Features

  • Weight Capacity – evenly distributed: 720 lb (327 kg)
  • Extra-wide -32 inches (81 cm) patient surface provides greater patient comfort for extended stays
  • The lightweight and maneuverable unit fits easily through doorways and is much lighter than other bariatric units and beds
  • Powered controls for head, foot, HI-LOW and Trendelenburg/reverse Trendelenburg positioning
  • Full-length Air Glide side rails for optimum patient safety and zero patient gap
  • Center track steering for superb mobility
  • Battery back-up
  • 5 inch (13 cm) Comfort mattress pad, spruce 4 way stretch

Accessories

  • 3 Stage permanently mounted IV pole
  • Built-In oxygen tank holder (Base)
  • Safety strap

Optional Accessories

  • Telescoping IV pole – H000018
  • Oxygen tank holder – H12845000
  • Push handles – H07566500
  • Footboard with monitor shelf and chart holder – H06929900
  • 5 inches (13 cm) Hausted clinical comfort pad
  • Surgical accessory rail – H076540
  • Armboard with 1 inch (2.50 cm) pad and adapter – H06518000
  • Extra Wide articulating headrest 18 inches (53 cm) – HSA0942
  • Footboard with monitor shelf and chart holder – H06929900
  • Head/Footboard with chart holder (stationary) H06938100
  • Heel stirrups (pair) – H00C16H00
  • Mounting adapter clamps for stirrups – H00l16M00
  • Fixed height IV pole, 42 inches (107 cm) – H000E1700
  • Telescoping IV pole 27 inches (68cm) – 54 inches ( 137 cm) – H00018
  • Mobile IV stand attachment – H07634400
  • Paper roll holder – H06925700
  • Universal patient tray – H0653660T
  • Push handle assembly – H07566500
  • Airglide rails cover – H076540
  • Side rail pads – H06774100B
  • Safety straps with buckle – H0001200

User Manuals

Return to Top

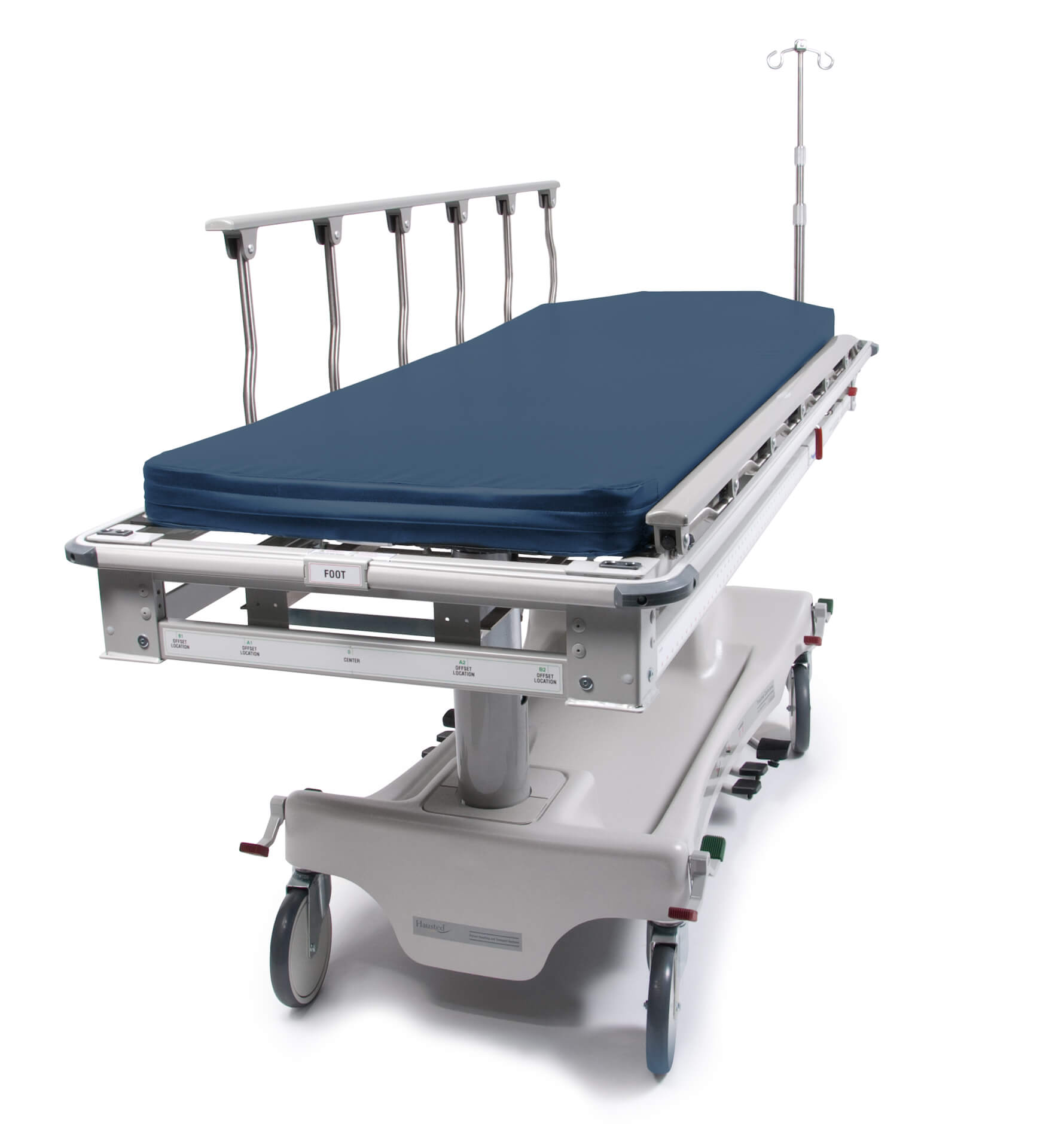

X-Ray Trauma Stretcher

The X-Ray Trauma Stretcher is intended for transport, treatment, and recovery of patients’ intra-and inter-departmentally in healthcare facilities. This unit offers unparalleled full-length X-ray capabilities, a treatment table and easy-rolling casters to provide full mobility.

Surgical X Ray Stretcher
Hover for Zoom

468XRYST

Features

  • Weight Capacity – evenly distributed: 500 lb (227 kg)
  • Radiolucent patient surface allows for clear imaging
  • Full-Length tracking X-Ray cassette carrier -up to 14 inches (36 cm)  x 17 inches (43 cm) cassettes with film location indicators
  • Dual side foot controls for easy height adjustment and Trendelenburg positioning
  • Center track steering for superb mobility
  • Brake and steer controls accessible at all four corners
  • 3-Position Retracto Rails to keep patient secure during transport while allowing optimum patient access
  • 3 inch (8 cm) Comfort mattress pad with Sure-Check cover

Accessories

  • 3 Stage permanently mounted IV pole
  • Built-In oxygen tank holder (Base)
  • Safety strap

Optional Accessories

  • Push handles – H07565600
  • Lateral X-Ray cassette holder – H00005400
  • Footboard with monitor shelf and chart holder – H07634700
  • Telescoping IV pole – H0000018
  • Armboard with surgical rail adapter – H07633400
  • Lateral X-Ray cassette holder – H00005400
  • Articulating headrest 22 inches (57 cm) – H131490
  • Footboard with monitor shelf and chart holder – H06883600
  • Head/Footboard (stationary) – H00006B00
  • Footboard with chart holder – H00CR6B00
  • Heel stirrups with mounting adapter – H00N16A00
  • Fixed height IV pole 42 inches (107 cm) – H000E1700
  • Telescoping IV pole 27 inches (68 cm) – 54 inches (137cm) – H000018
  • Mobile IV stand attachment – H07634400
  • Vertical oxygen tank holder assembly – H12845000
  • Paper roll holder – H06925700
  • Universal patient tray – H0653660T
  • Push handle assembly – H07565600
  • Retracto Rails covers – H076336
  • Rail pad cover (6 leg Retracto rails) – H07562600
  • Safety straps with buckle – H00001200

User Manuals

Return to Top

Fluoro-Track™ Fluoroscopy Stretcher

The Fluoro-Track stretcher is designed for use with C-Arms for fluoroscopy-guided procedures. The unique design, with a proprietary sliding top, enables a broader range of imaging capacity without repositioning the patient. The hourglass-shaped trim base accommodates a wide range of C-Arms. The security of a specialty imaging table with the mobility of a stretcher.

Fluoroscopy Stretcher
Hover for Zoom

493RPC

Features

  • Weight Capacity – evenly distributed: 500 lb (227 kg)
  • Full length, radiolucent top translates to either end
  • 6 inches (15.24 cm) towards the head and 12 inches (30.48 cm) towards the foot
  • Hourglass base design with trimmed sides creates an excellent window for C-arm access from both sides
  • 23 inches (53 cm) C – arm clearance
  • Increased maneuverability with dual column base support
  • Stainless steel 6 – leg, 3 – position Retracto Rails with built-in push-steer
    handles
  • Dual side foot controls for easy height adjustment and Trendelenburg
    positioning
  • 3 inch (8 cm) comfort mattress pad with Sure-Check cover

Accessories

  • 3 Stage permanently mounted IV pole
  • Built-In oxygen tank holder (Base)
  • Safety strap

Optional Accessories

  • Armboard with 1 inch (2.50 cm) pad and surgical rail adapter – H07633400
  • Lateral X-Ray cassette holder – H00005400
  • Telescoping IV pole – H000018
  • Vertical oxygen tank holder – H12845000
  • Surgical accessory rail (Retracto Rails) – H076336
  • Armboard and surgical rail adapter – H07633400
  • Lateral X-Ray cassette holder – H00005400
  • Articulating head rest 22 inches (57 cm) – H131490
  • Footboard with monitor shelf and chart holder – H06883600
  • Head/Footboard (stationary) – H00006B00
  • Footboard with chart holder – H00Cr6B00
  • Head/Footboard with chart holder (stationary) – H06938100
  • Heel stirrups (pair) – H00C16H00
  • Mounting adapter clams for stirrups – H00L16M00
  • Fixed height IV pole, 42 inches (107 cm) – H000E1700
  • Telescoping IV pole 27 inches (68 cm) – 54 inches (137cm) – H000018
  • Mobile IV stand attachment – HIVSTOW00
  • Monitor shelf (standard width) – H000n4500
  • Vertical oxygen tank holder assembly – H128450000
  • Paper roll holder – H06925700
  • Universal patient tray – H0653660T
  • Under Fowler utility tray – H13317000
  • Push handle assembly – H07565600
  • Retracto Rail covers – H076336
  • Airglide rails covers – H076540
  • Rail pad cover (6 leg Retracto rail legs) – H07562600
  • Safety straps with buckle – H00001200

User Manuals

Return to Top

ConVerge™ Powered Treatment and Exam Stretcher

ConVerge Powered Multi-Purpose Treatment & Exam Stretcher is designed to be a multi-tasking stretcher and chair ideal for the ER, PACU, OR and L&D departments. Its multiple uses help eliminate patient transfers providing cost and time savings and enhanced safety for both patients and staff.

Converge Powered Stretcher
Hover for Zoom

4E7APRST [120V], 4D7APRST [220V]

Features

  • Weight Capacity – evenly distributed: 720 lb (327 kg) and 31 inch (79 cm) width to accommodate larger patients
  • Powered positioning and adjustment system features a handheld pendant for use by the patient or care provider
  • Fold-down footrest enhances patient comfort while stretcher is in chair/exam position
  • Integral, self-storing stirrups allow quick and precise pelvic exams, labor assessment or emergency treatment
  • Brake and steer controls accessible at all four corners
  • Lock caster steering for superb mobility
  • Battery back-up
  • 3 inches (8 cm) sectional comfort mattress pad, black

Accessories

  • 3 Stage permanently mounted IV pole
  • Built-In oxygen tank holder (base)
  • Safety strap
  • Self-storing stirrups

Optional Accessories

  • Stainless steel drain basin – H000C4400
  • Armboard with 1 inch (2.50 cm) pad and adapter – H06518000
  • Footboard with monitor shelf and chart holder – H06883500
  • Vertical oxygen tank holder – H12845000
  • Push handles – H07566400
  • Standard articulating headrest 18 inches (46 cm) – HSA094100
  • Fixed height IV pole, 42 inches (107 cm) – H000E1700
  • Telescoping IV pole 27 inches (68 cm)- 54 inches (137 cm) – H000018
  • Mobile IV stand attachment – HIVSTOW00
  • Paper roll holder – H06925700
  • Universal patient tray – H0653660T
  • Safety straps with buckle – H00001200

User Manuals

Return to Top

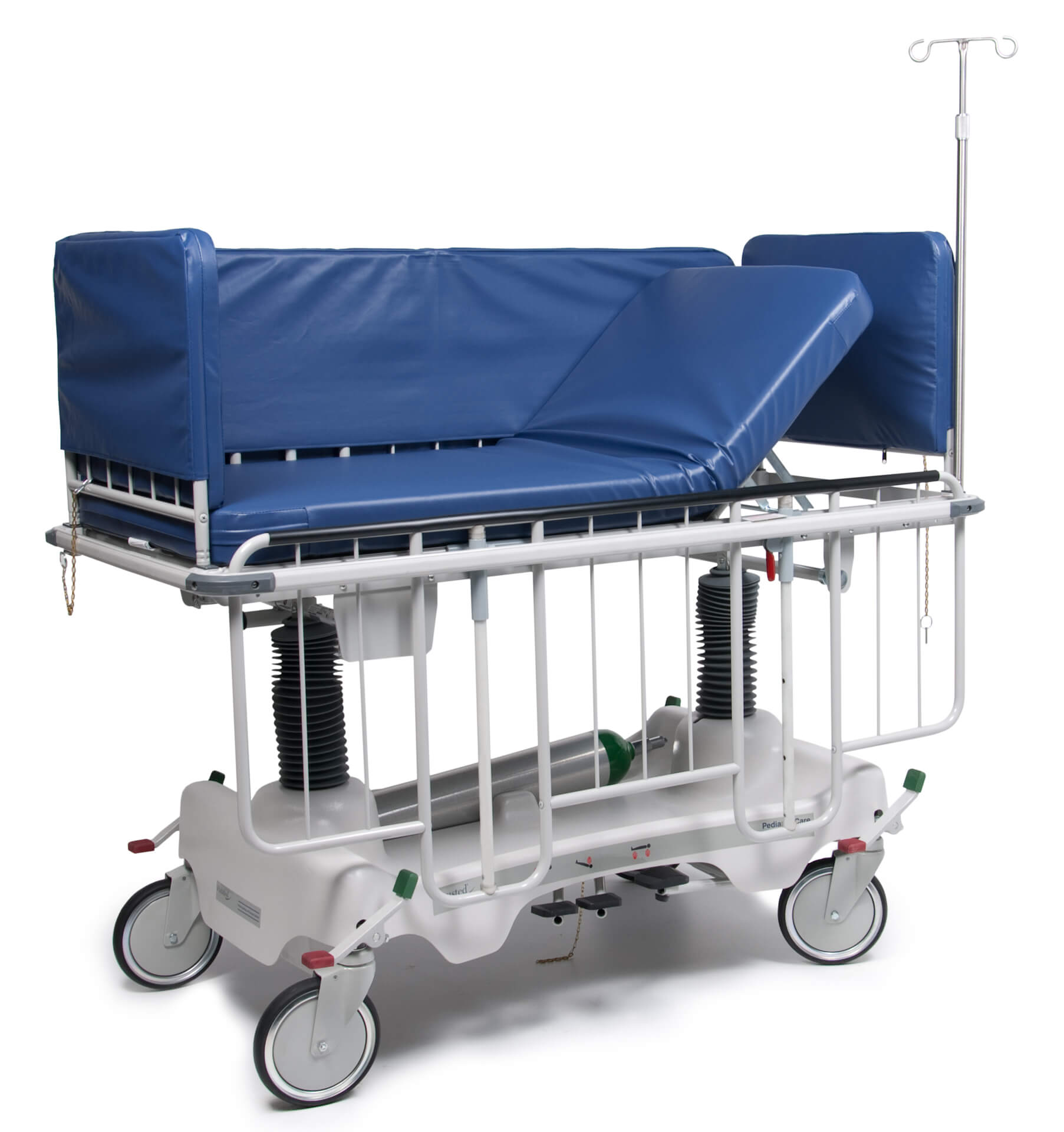

Pediatric Transport Stretcher

The Pediatric Stretcher (4160D0ST) is ideal for the littlest patient who needs the most modern protection for infants to six-year-olds. The three position vertical side rails are easy to use and provide maximum patient security. The dual pedestal design provides maximum stability for patient transport, treatment, and recovery.

Pediatric Surgical Stretcher
Hover for Zoom

4160D0ST

Features

  • Weight Capacity – evenly distributed: 325 lb (147 kg)
  • Adjustable backrest from 0° – 45° for patient comfort
  • Dual side foot controls for easy height adjustment and 10° Trendelenburg positioning
  • Extra high side rails provide three positions for patient safety, access and transfer
  • Removable end rails to allow easy patient access
  • Brake and steer controls accessible at all four corners
  • 3 inch (8 cm) comfort mattress pad with Sure-Check cover
  • Height Range – high: 39 inches (99 cm)
  • Height Range – low: 32.25 inches (82 cm)

Accessories

  • Drainage bag hook – H12884A
  • Fixed height IV pole, 42 inches (107 cm) – H00031700
  • Telescoping IV pole 27 inches (68 cm) – 54 inches (137 cm) – H000018
  • Mobile IV stand attachment – H06589700
  • Paper roll handler – H06925700
  • Paper roll holder – H0653660T
  • Universal patient tray – H0653660T
  • Side and end rail pads covers – H00011P00B
  • Safety straps with buckle – H00001200

User Manuals

Return to Top

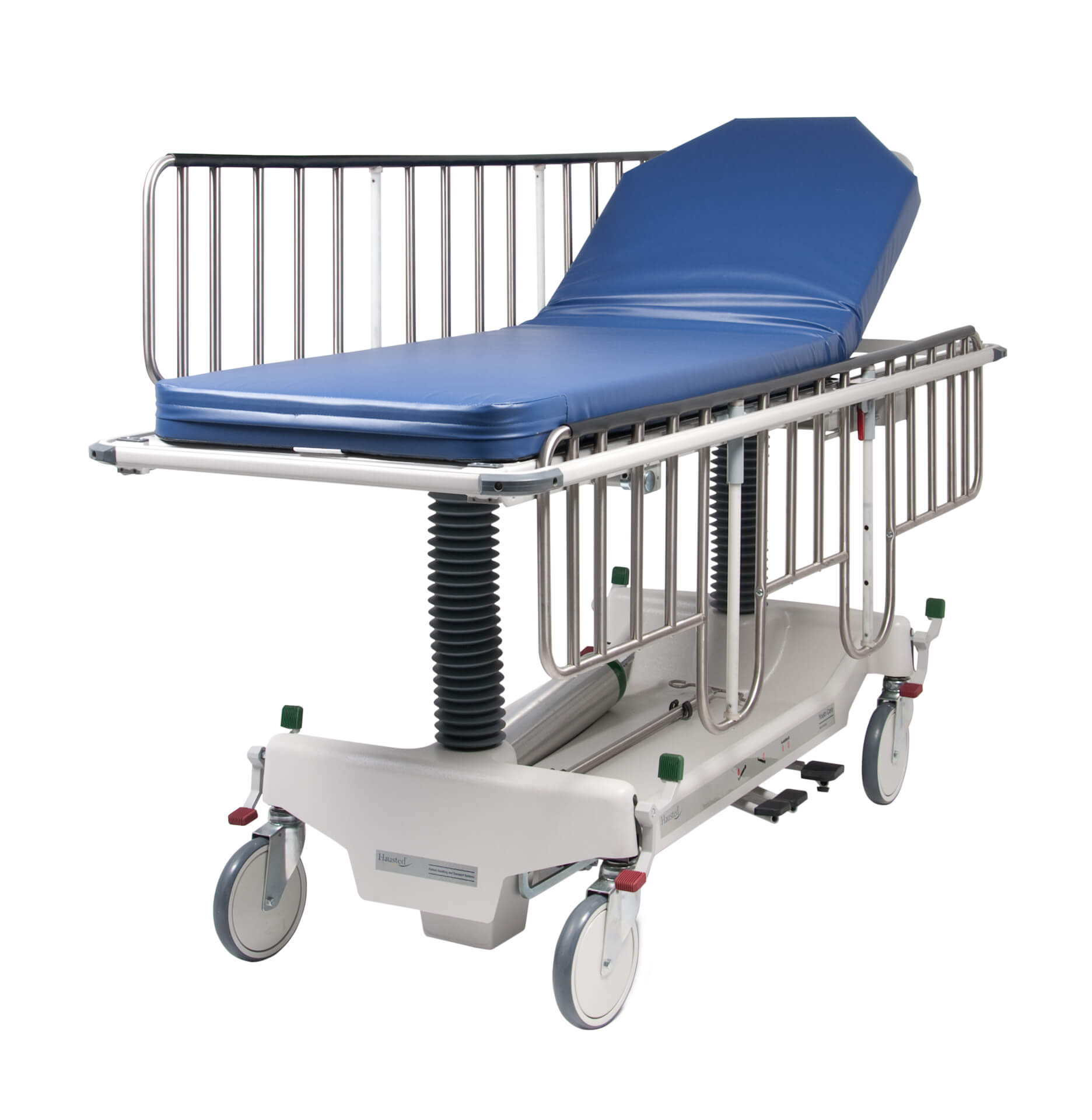

Youth Transport Stretcher

The Youth Stretcher is ideal for patients who are too large for a crib or pediatric stretcher from six years of age to adolescence but still require 360° of protection. It is intended for easy transport, examination, and care of smaller patients in healthcare facilities

Youth Surgical Stretcher
Hover for Zoom

462EMPST

Features

  • Weight Capacity – evenly distributed: 500 lb (227 kg)
  • Dual side foot controls for easy height adjustment and 12° Trendelenburg positioning
  • Pneumatic assisted backrest from 0° – 90° for patient comfort and safer staff use
  • 3-position vertical side rails for patient safety and transfer
  • Brake and steer controls accessible at all four corners
  • Center track steering for superb mobility
  • 3 inch (8 cm) comfort mattress pad with Sure-Check cover
  • Height Range – high: 37 inches (94 cm)
  • Height Range – low: 28.50 inches (92 cm)

Accessories

  • Drainage bag hook – H12884a
  • Lateral X-Ray cassette holder – H00005400
  • Articulating headrest 22 inches (57 cm) – H131490
  • Footboard with monitor shelf and chart holder – H06883600
  • Head/Footboard (stationary) – H00006B00
  • Footboard with chart holder – H00Cr6B00
  • Heel stirrups with mounting adapter – H00N16A00
  • Fixed height IV pole, 42 inches (107 cm) – H000E1700
  • Telescoping IV Pole 27 inches (68 cm) – 54 inches (137 cm) – H000016
  • Mobile IV stand attachment – H06589700
  • Monitor shelf (standard width) – H000N4500
  • Vertical oxygen tank holder assembly – H12845000
  • Paper roll holder – H06925700
  • Universal patient tray – H0653660T
  • Under Fowler utility tray – H13317000
  • Push handle assembly – H07565600
  • Retracto rails Covers – H076336
  • Side Rail Pads covers – H06774100B
  • Side and end rail pads covers – H00P11R00B
  • Safety straps with buckle – H00001200

Related Documents (PDF Format)

User Manuals

Return to Top

Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the state of California to cause cancer and birth defects or other reproductive harm. p65warnings.ca.gov
