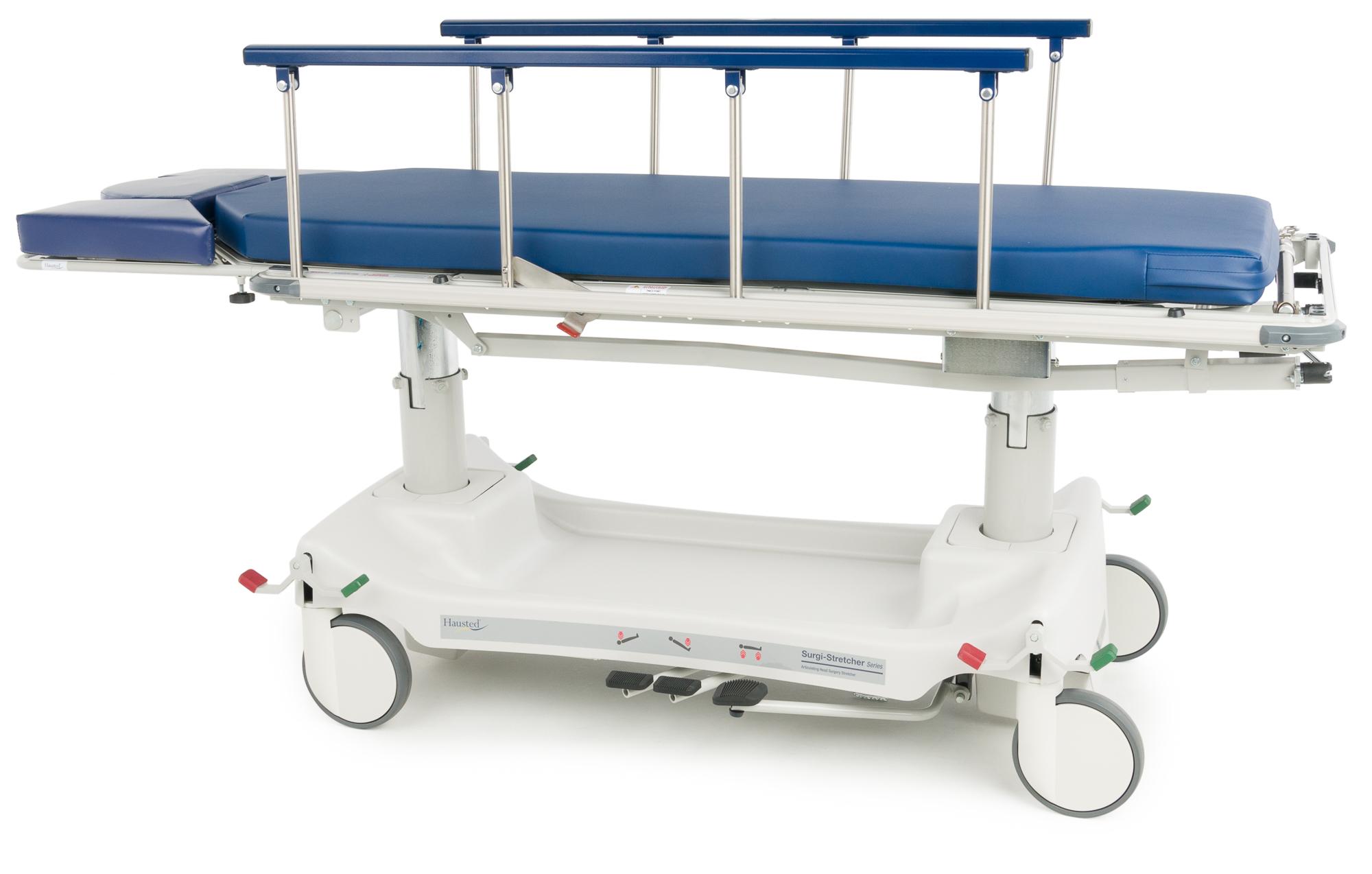

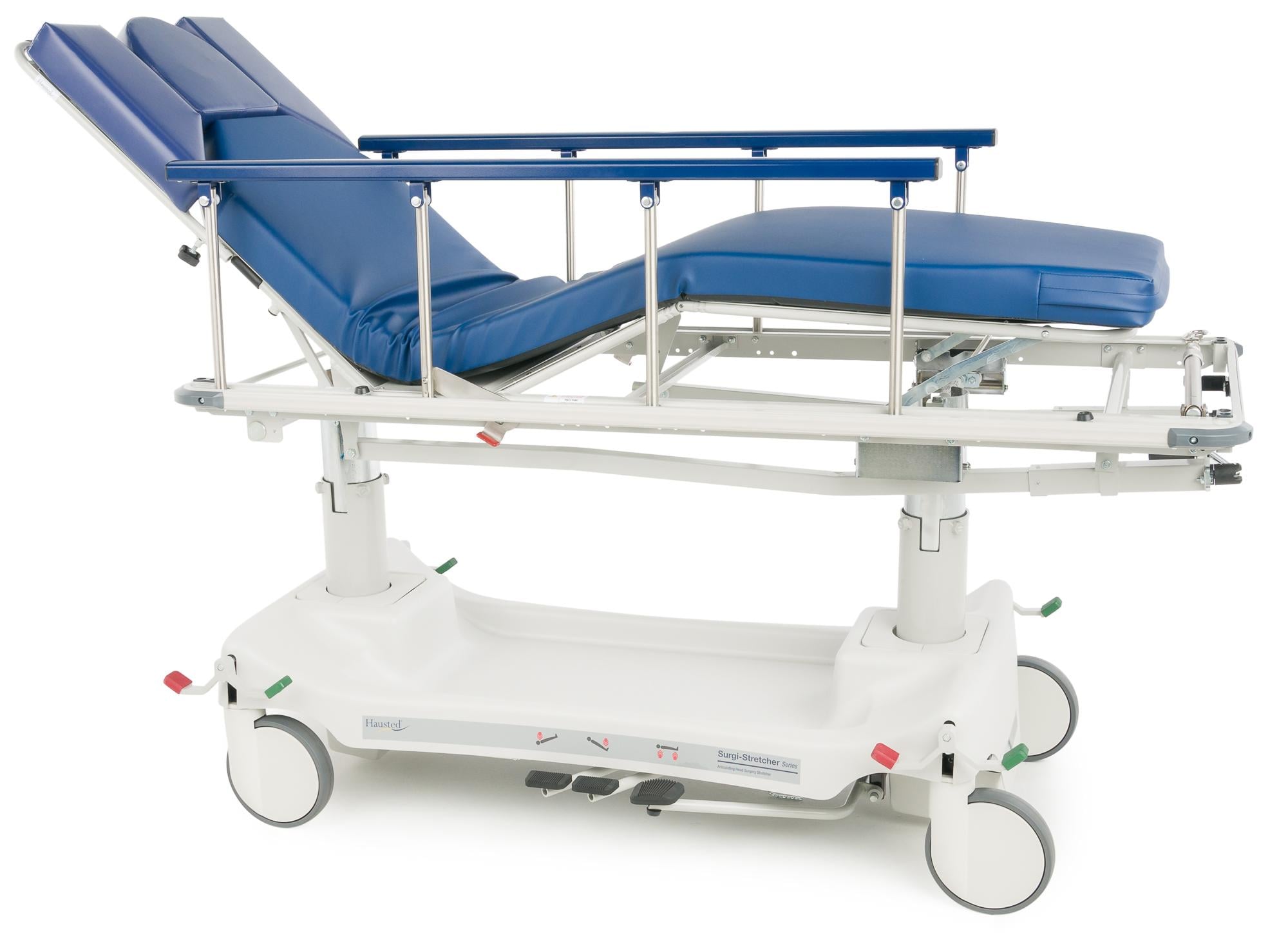

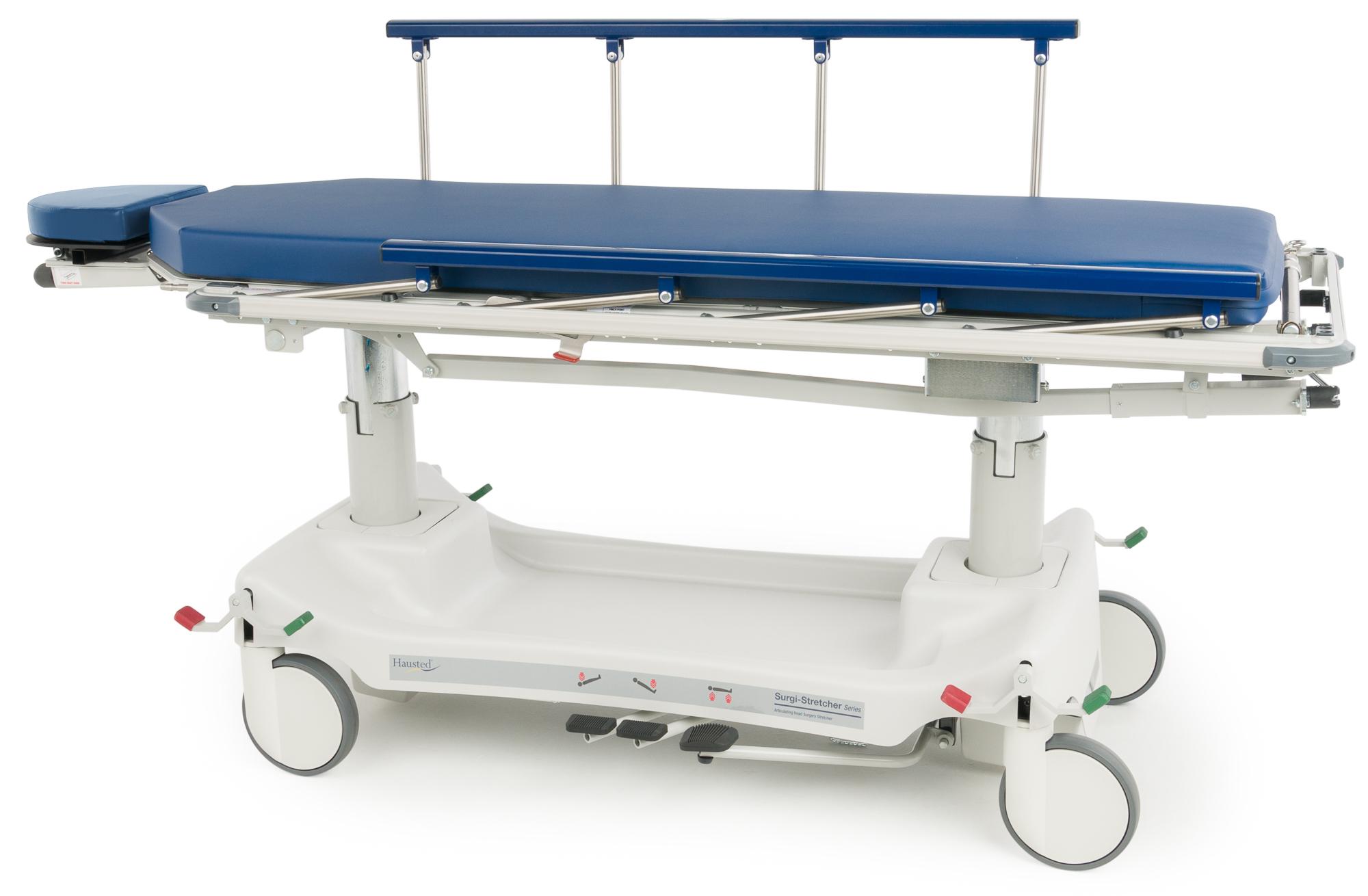

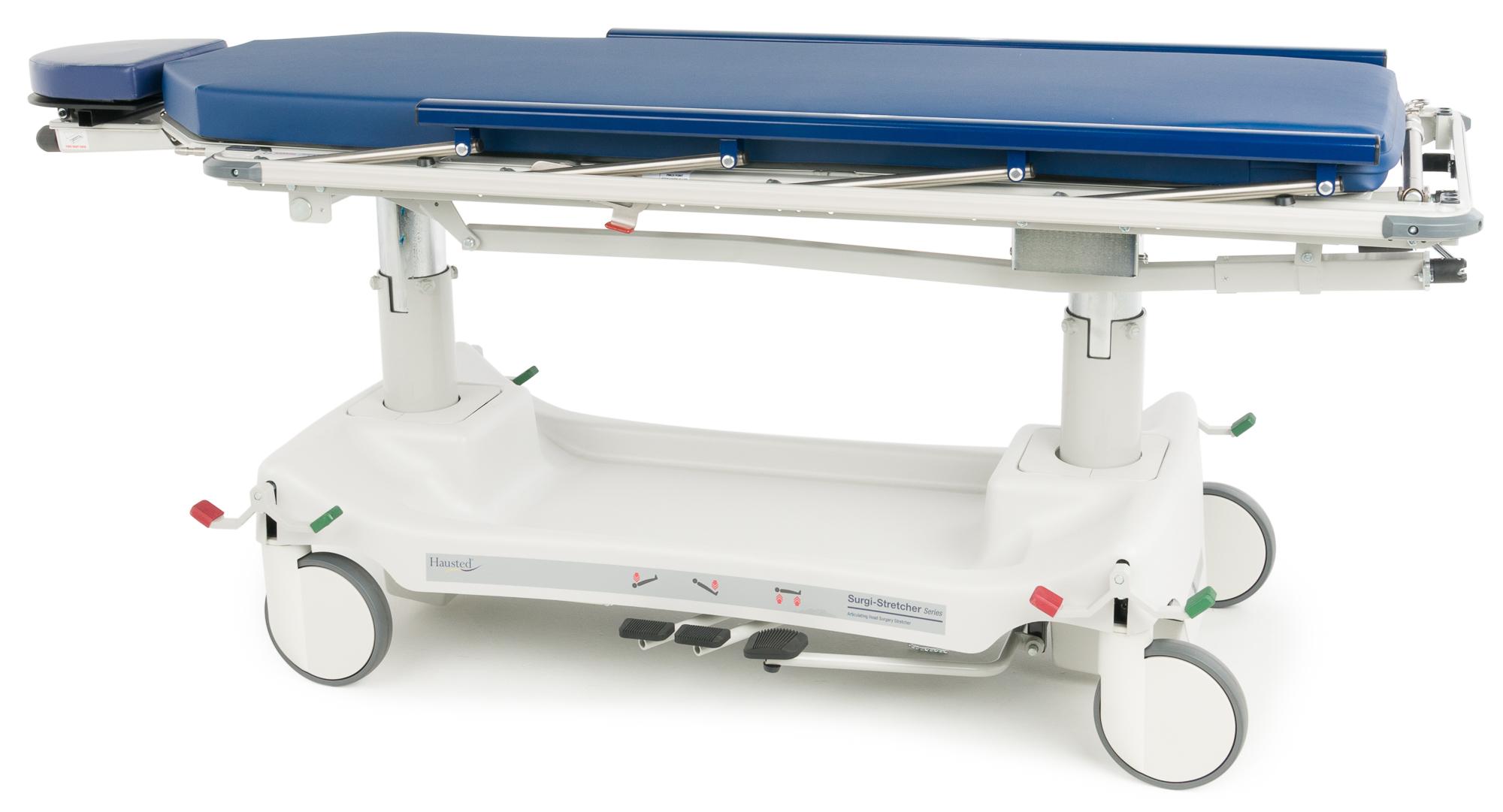

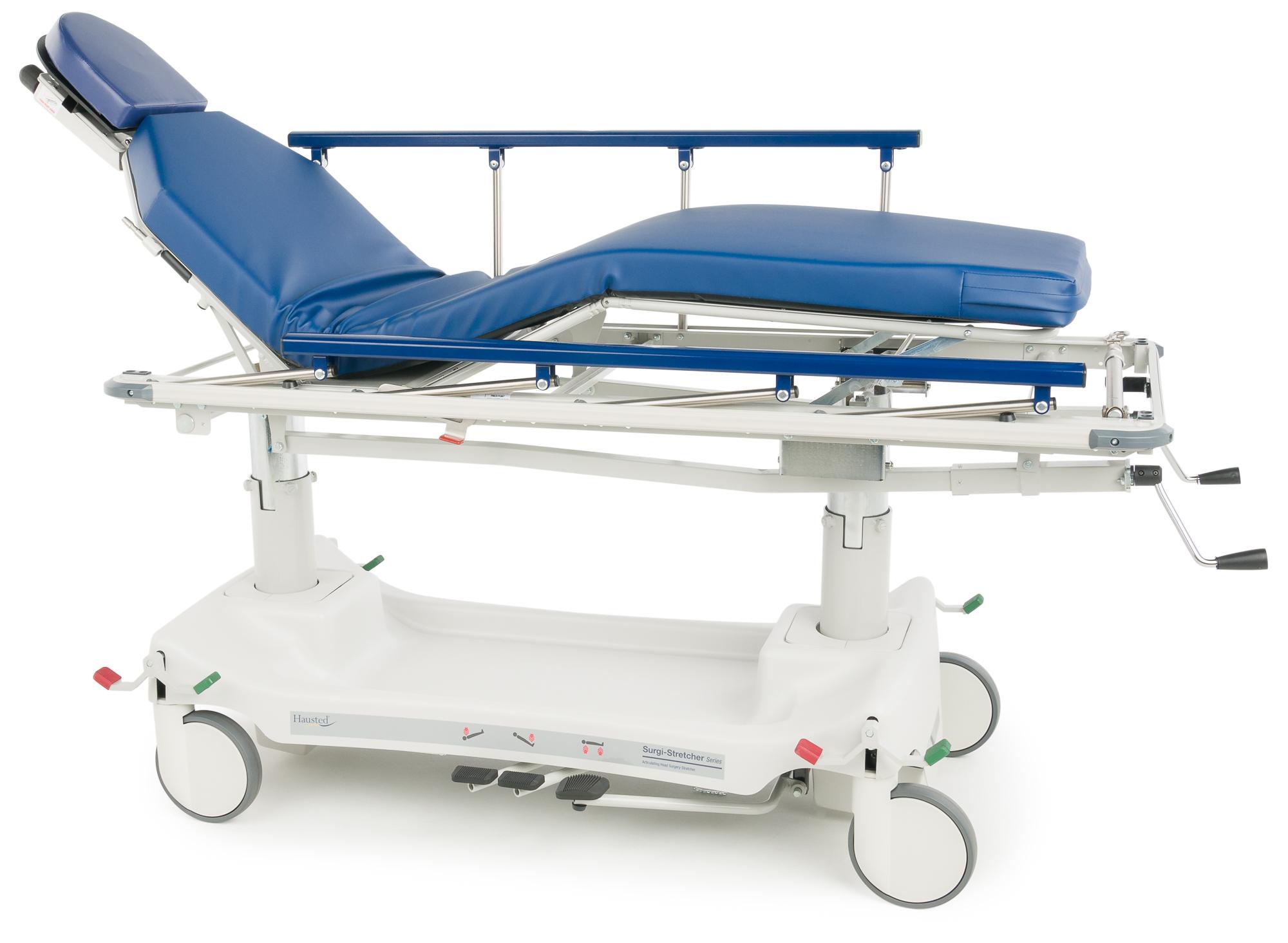

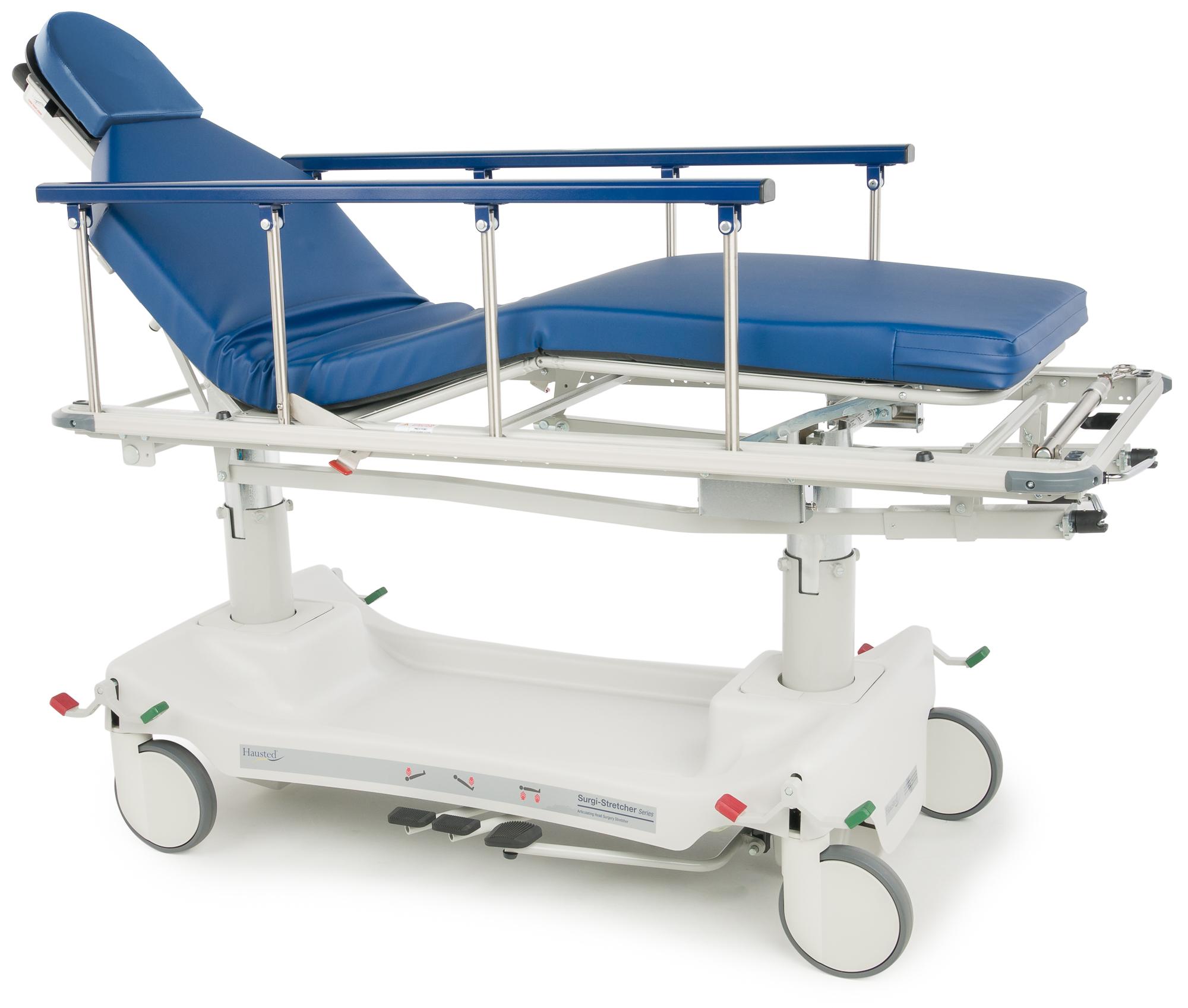

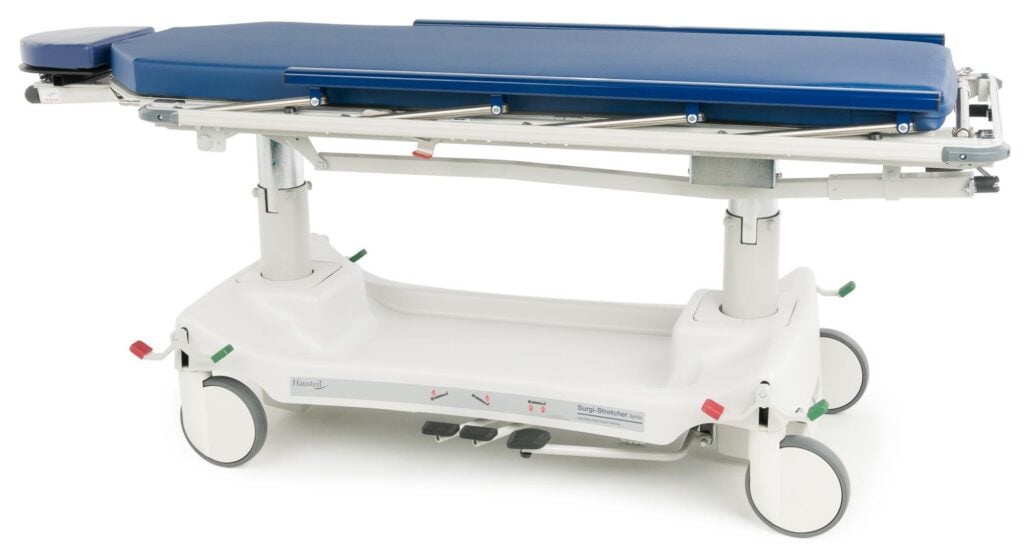

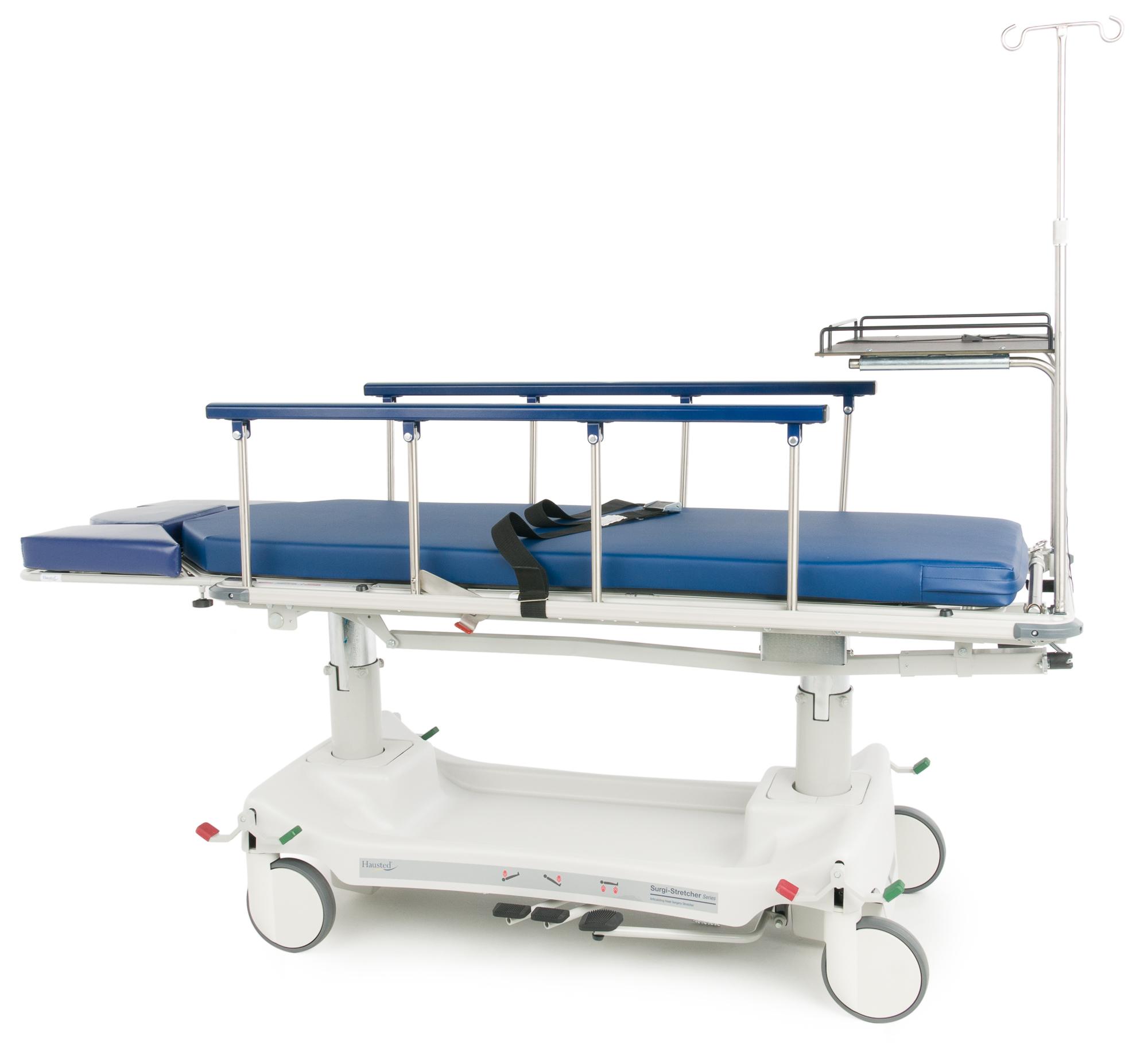

The hydraulic Surgi-Stretcher Series (578) is a mobile surgical platform for EYE/ENT and plastic surgery procedures. The easy-to-use hydraulic/foot-end operated controlled backrest and leg flex operated controls are available for height adjustment, backrest, leg section, and Trendelenburg/Reverse Trendelenburg.
578EYEST – standard width
- Patient surface: nominal 25 inches (63.50 cm) x 81.50 inches (207 cm)
578EYXST – wide width
- Patient surface: 30 inches (76.20 cm) x 81.50 inches (207 cm)
Features

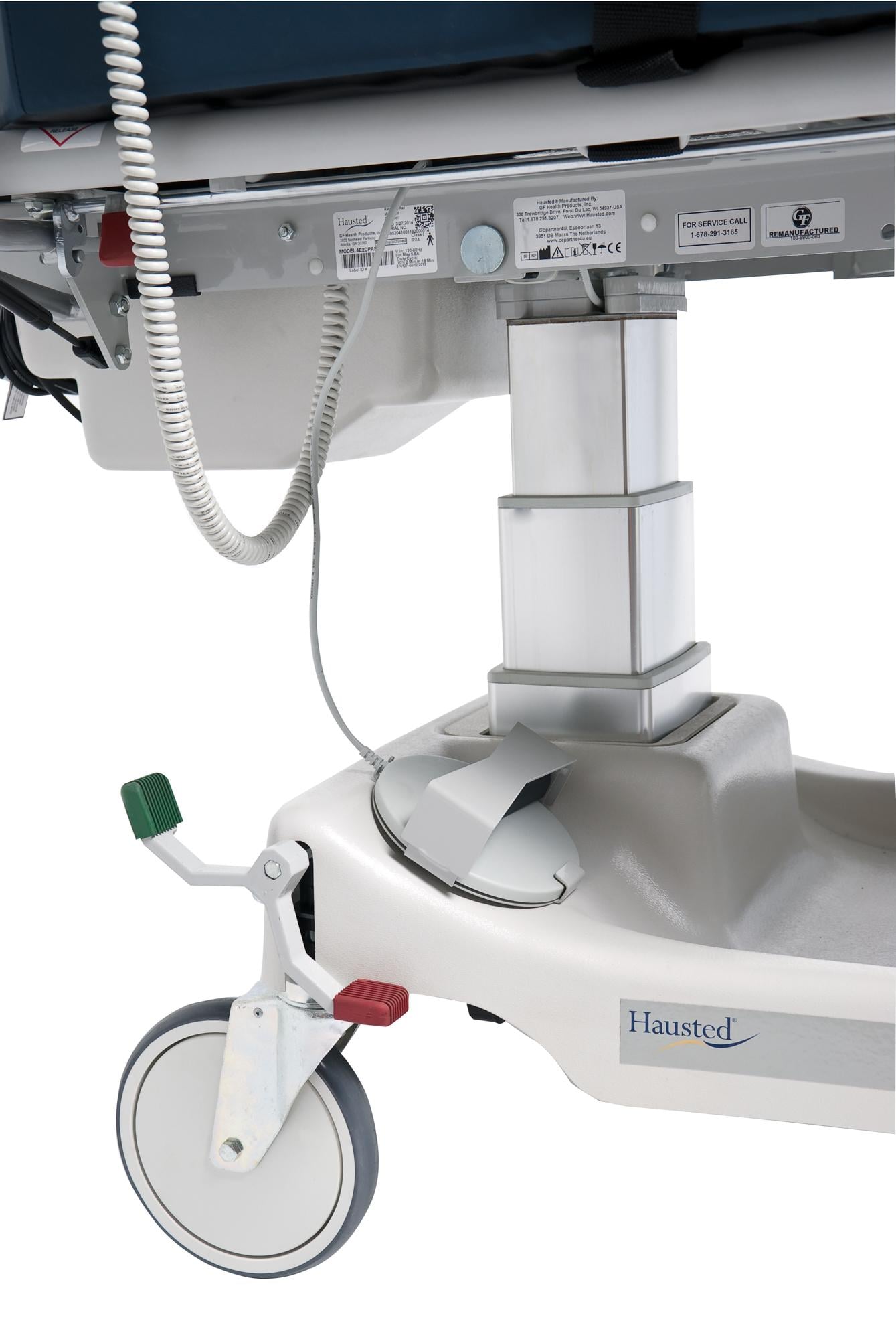

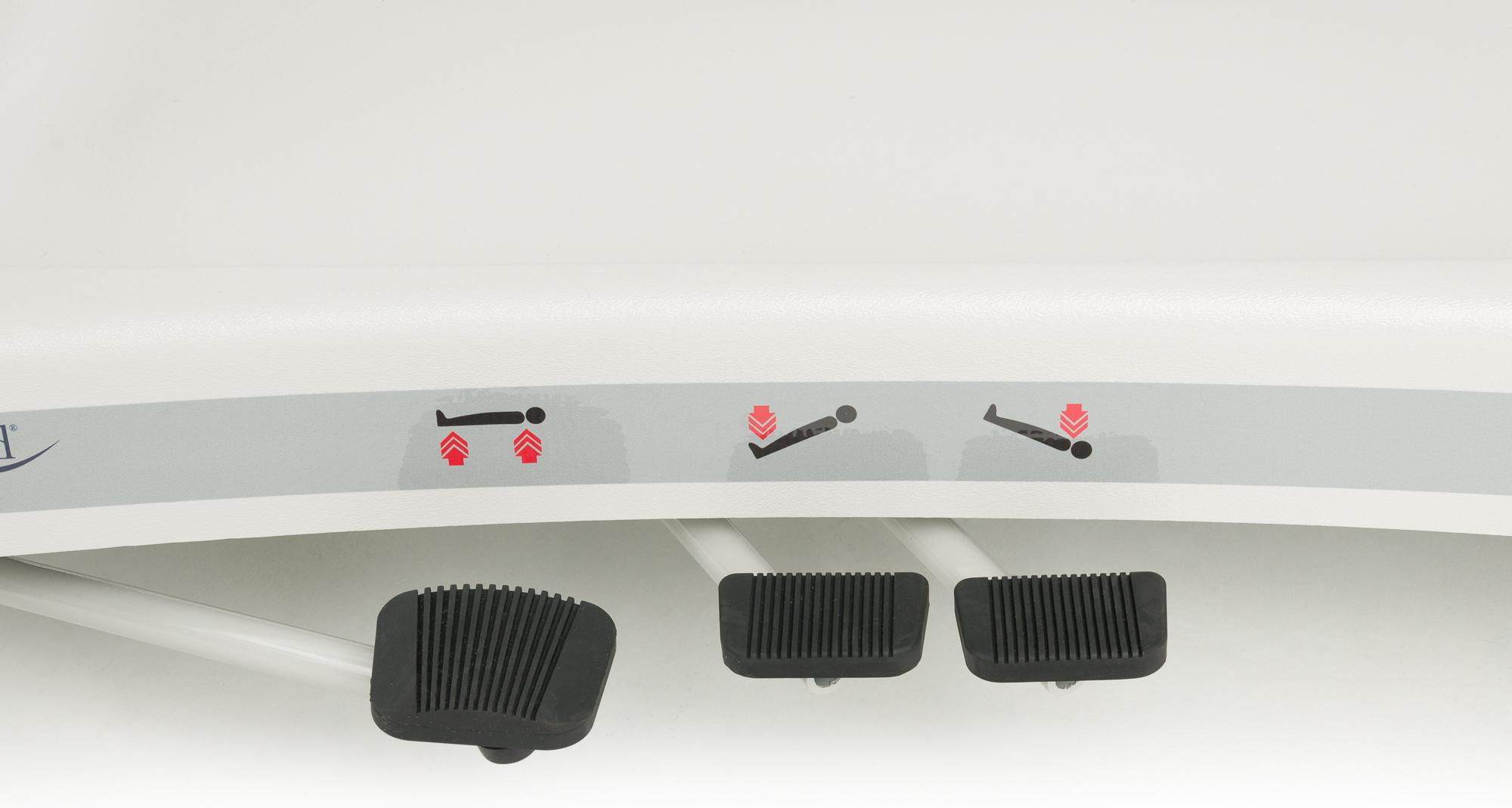

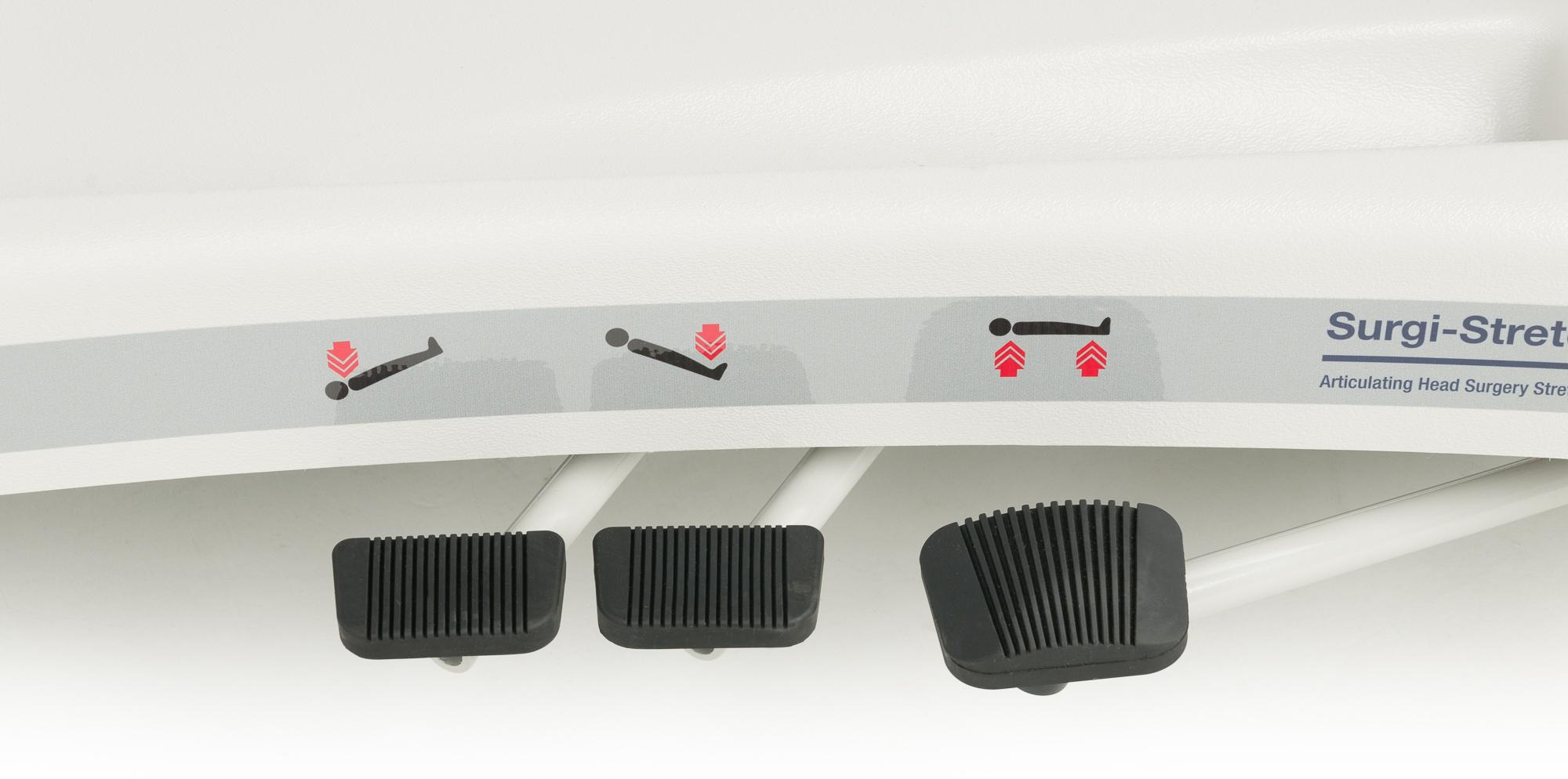

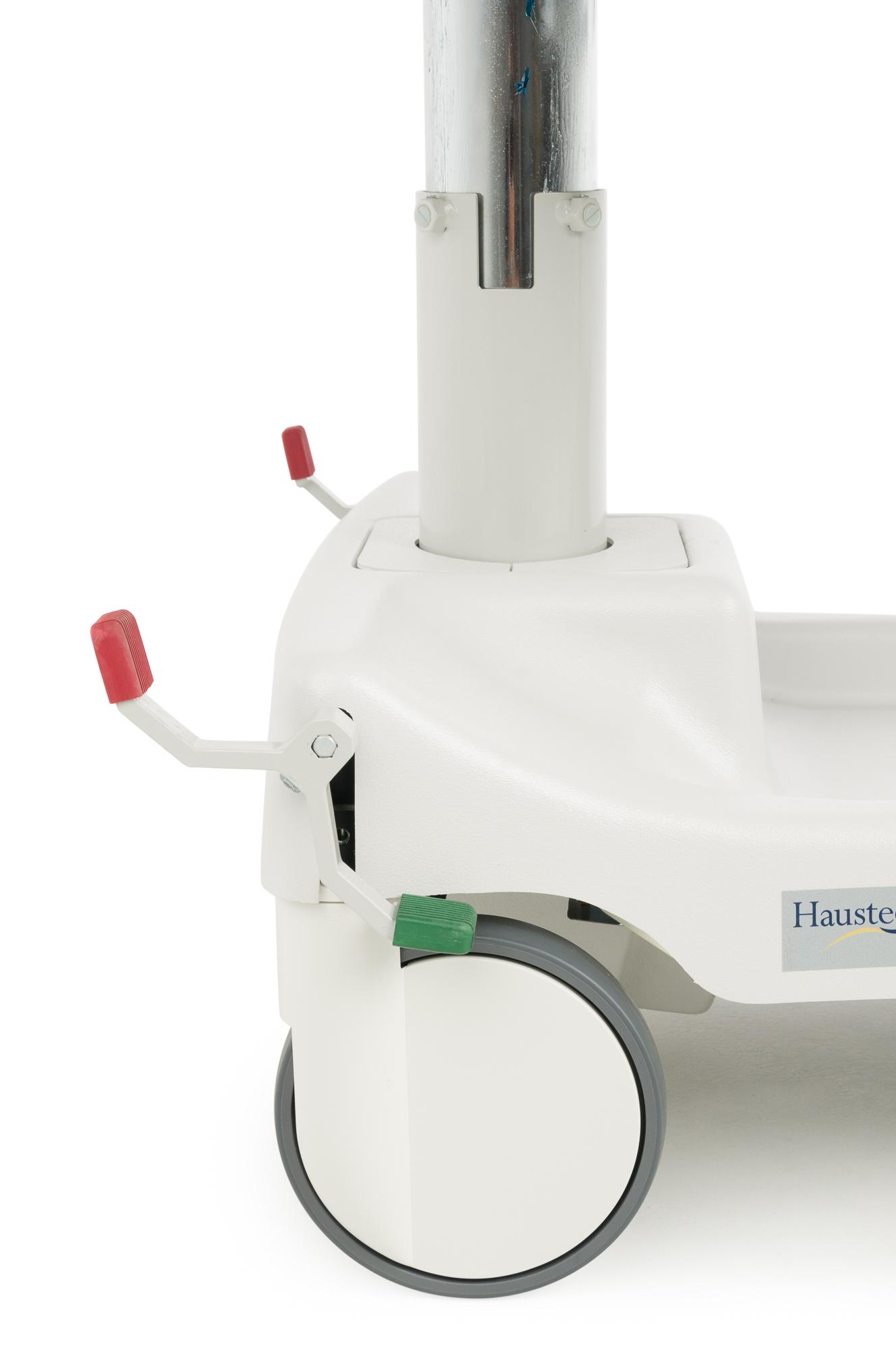

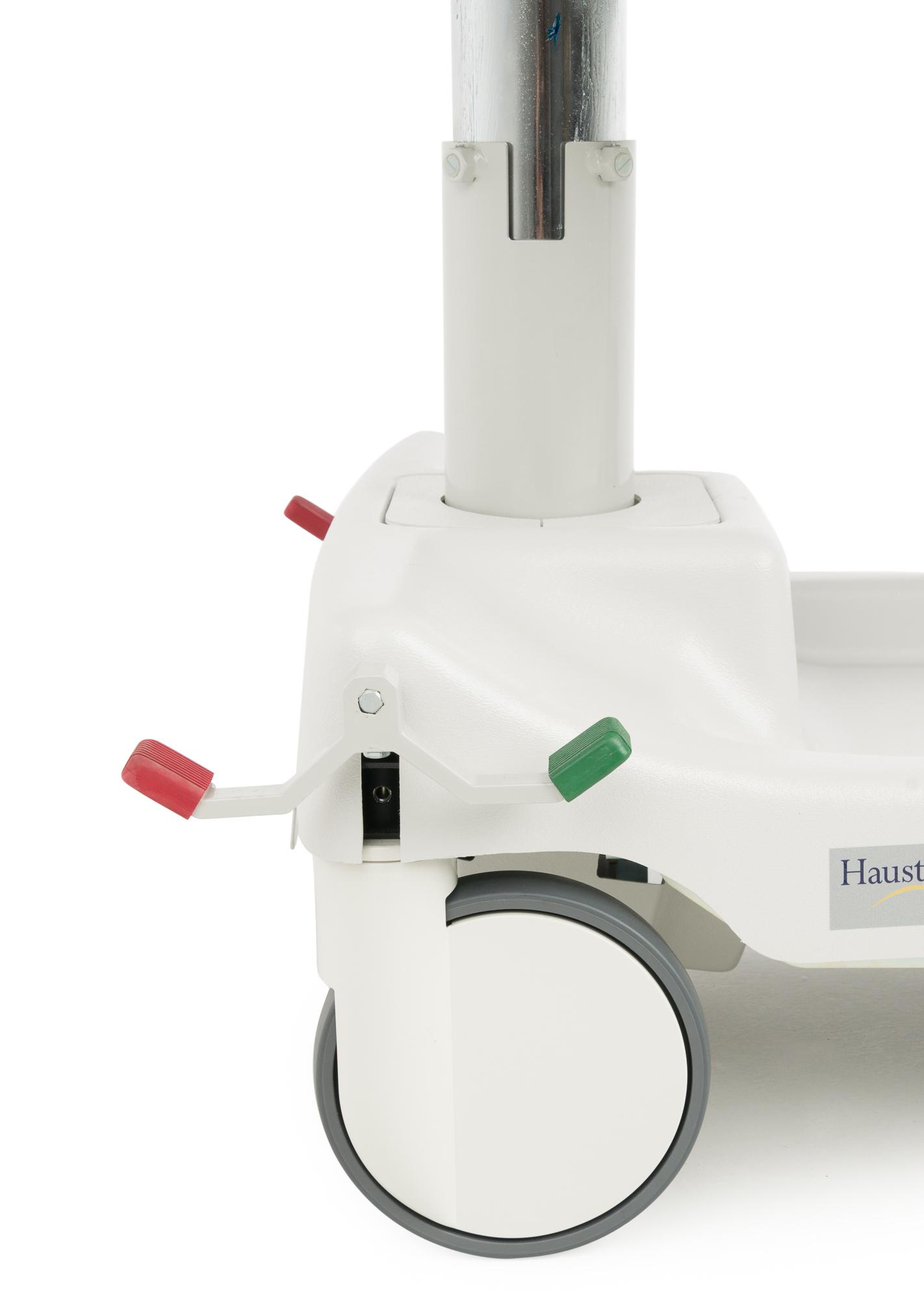

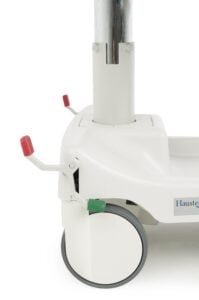

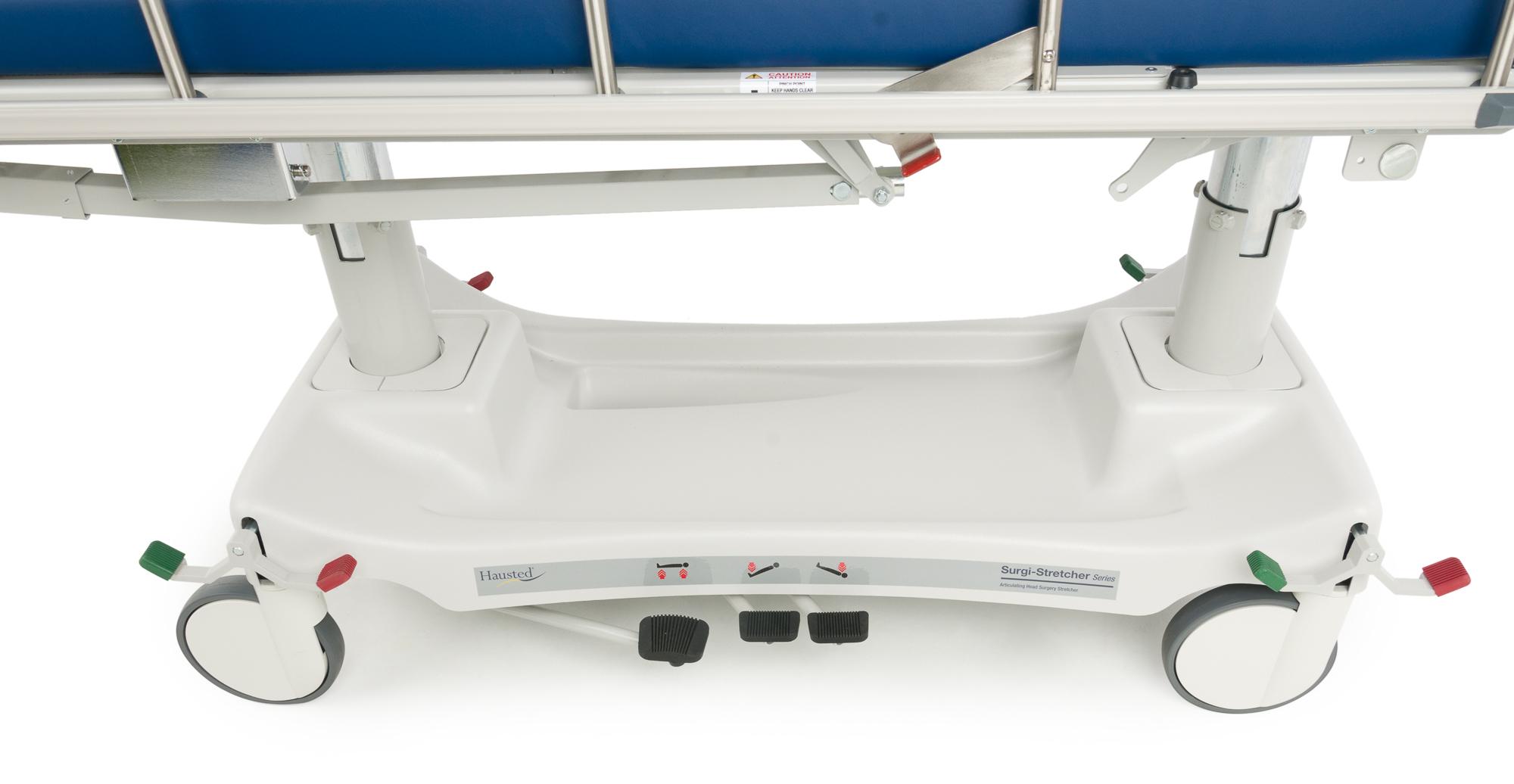

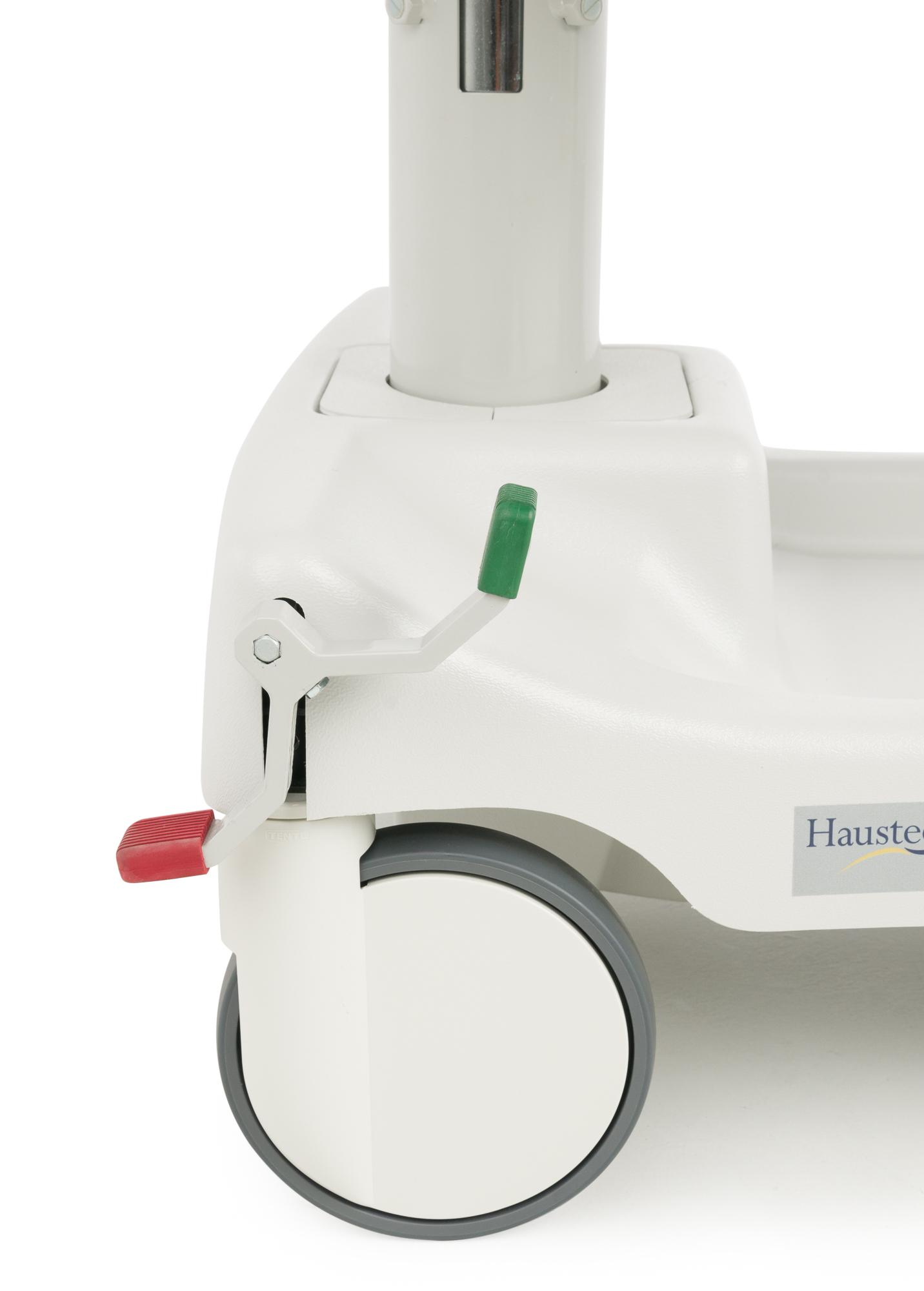

- Dual side foot pedal hydraulic controls for height adjustment 24 inches (61 cm) – 32 inches (81 cm)

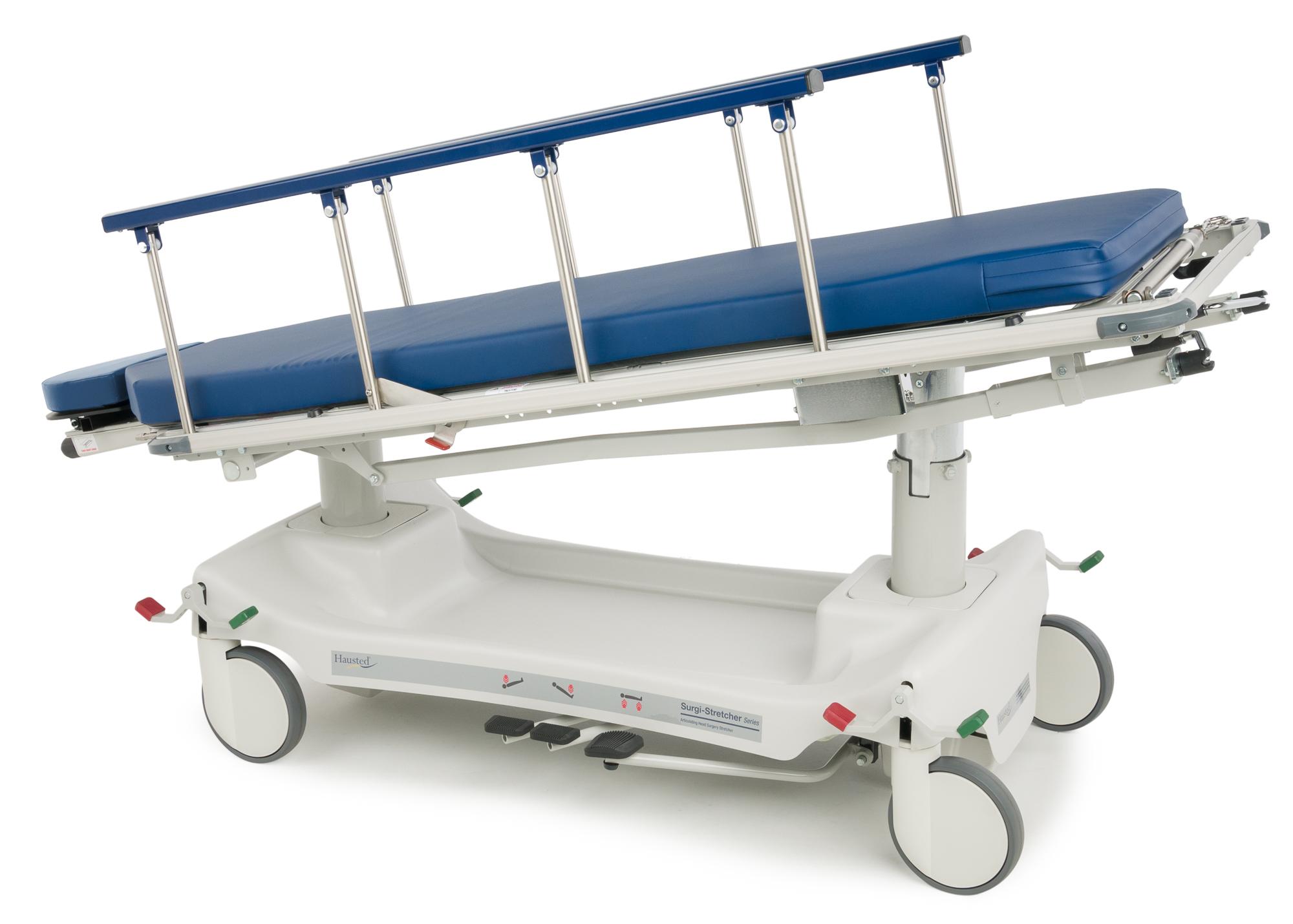

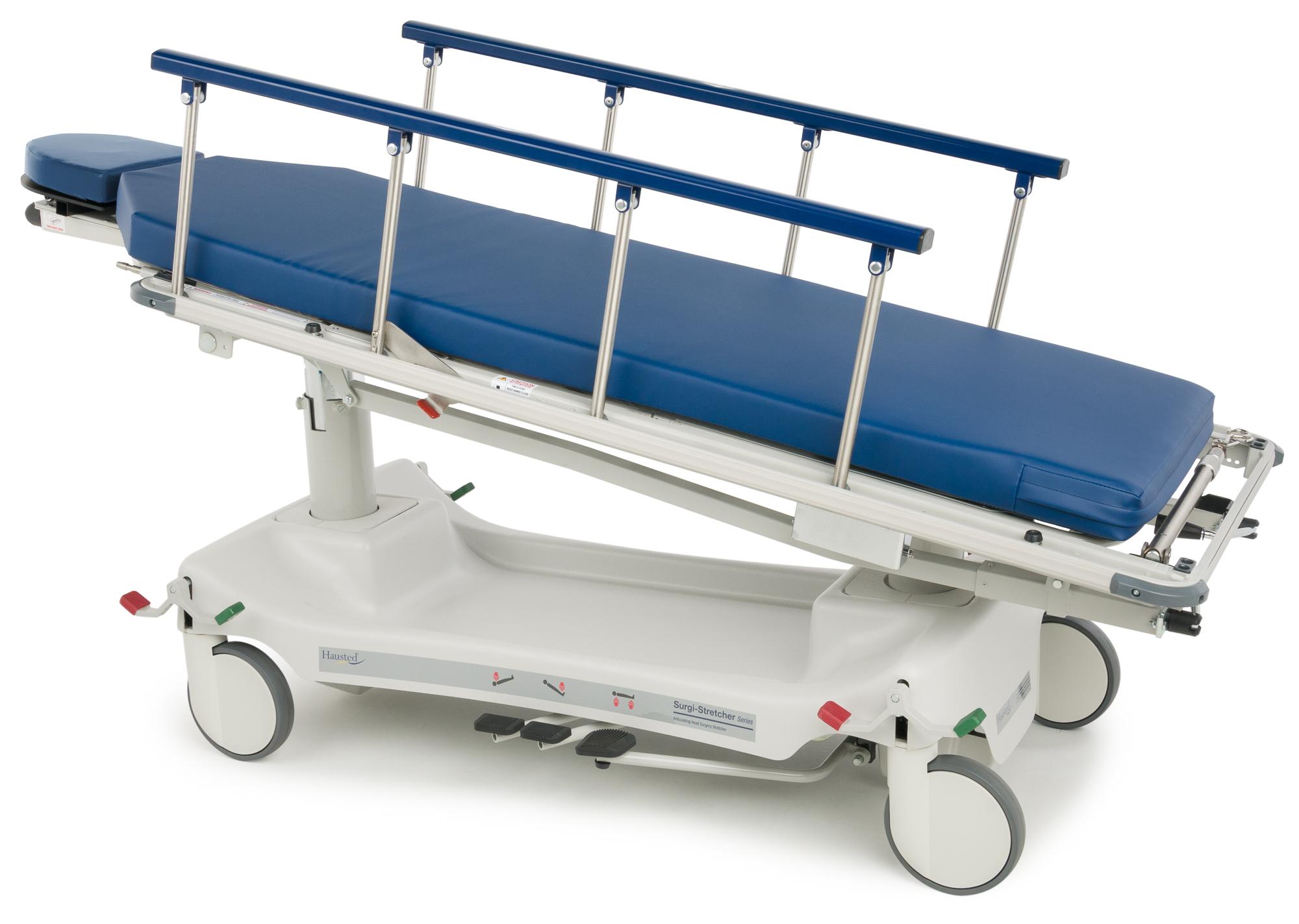

- Trendelenburg: 0° – 16°

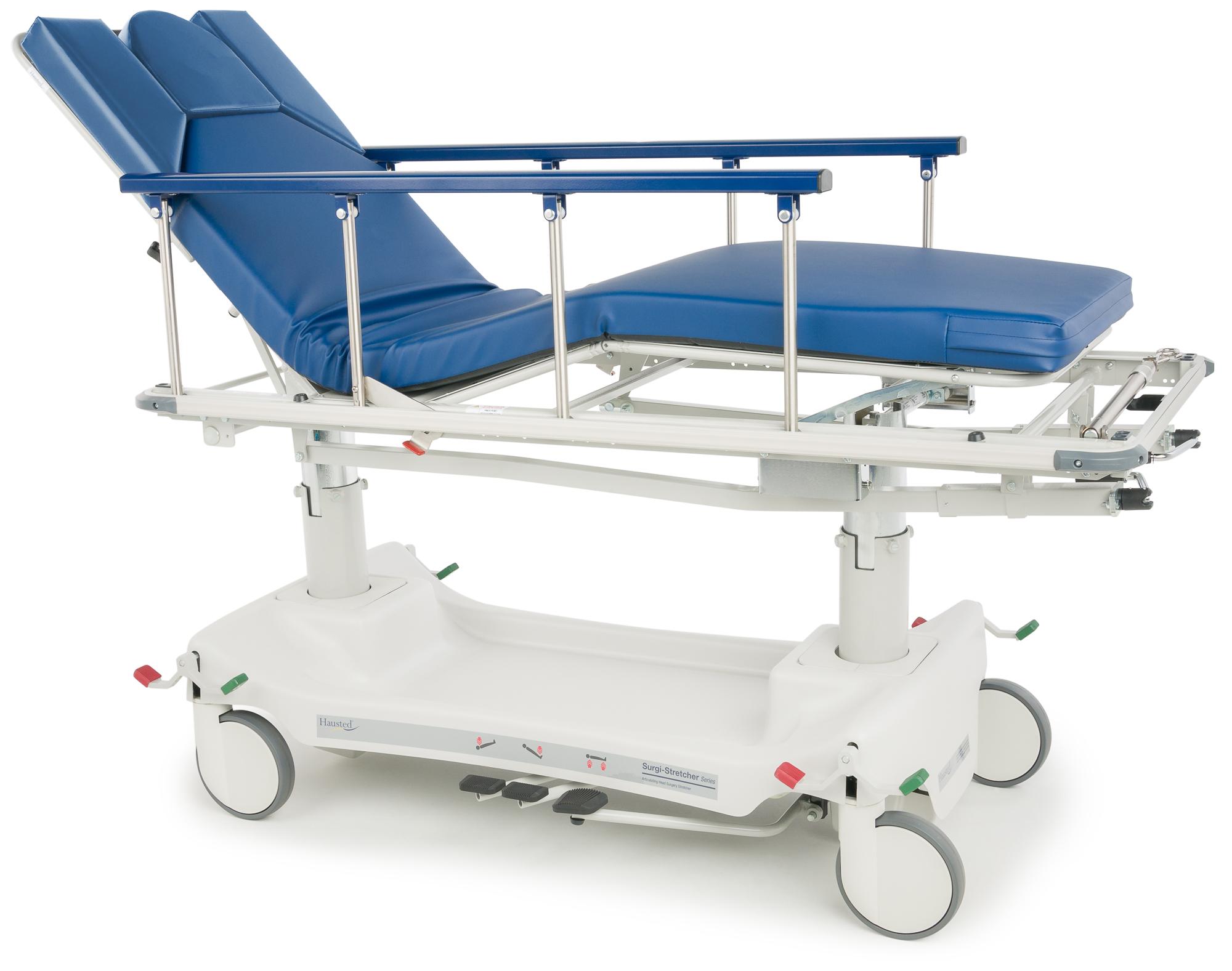

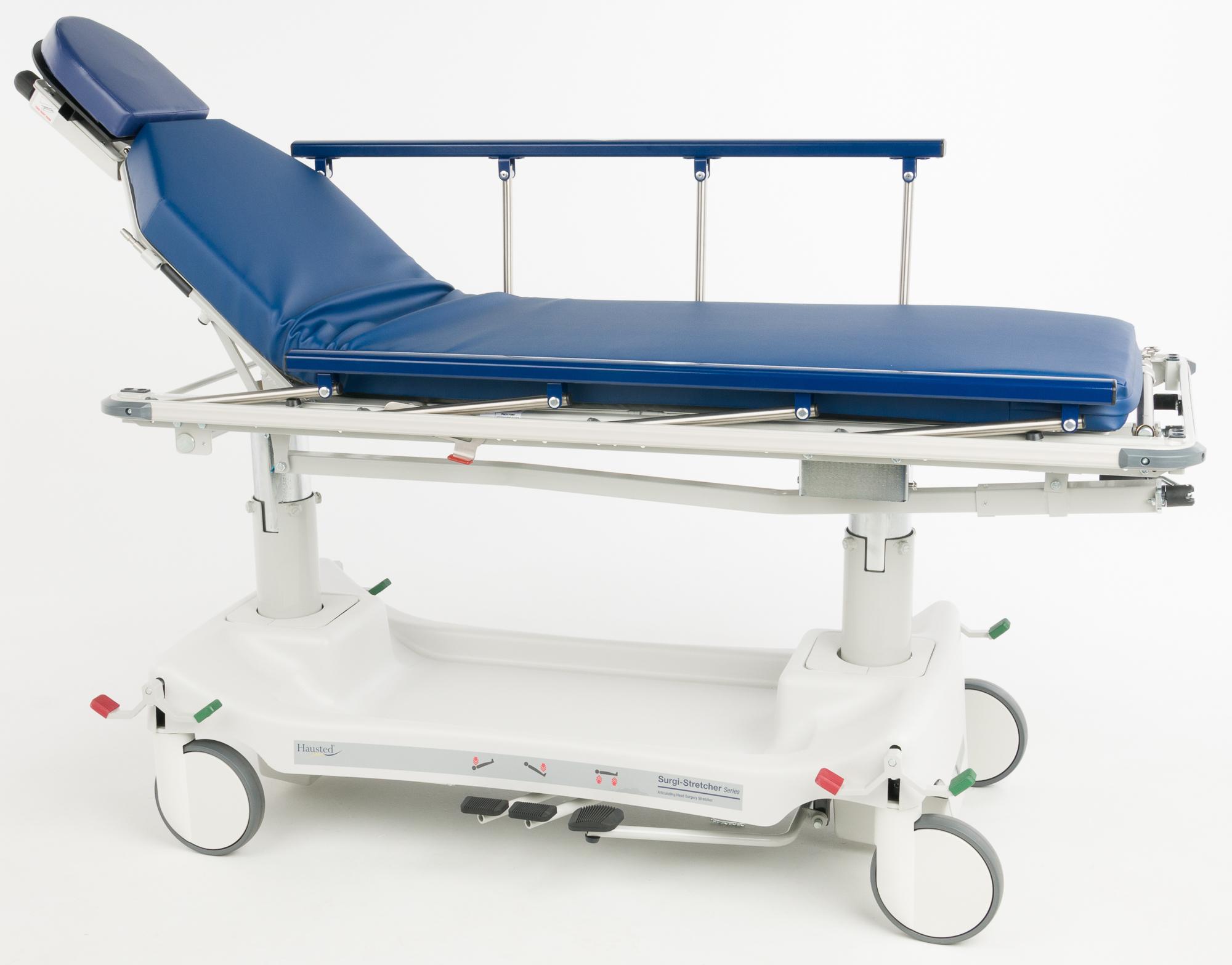

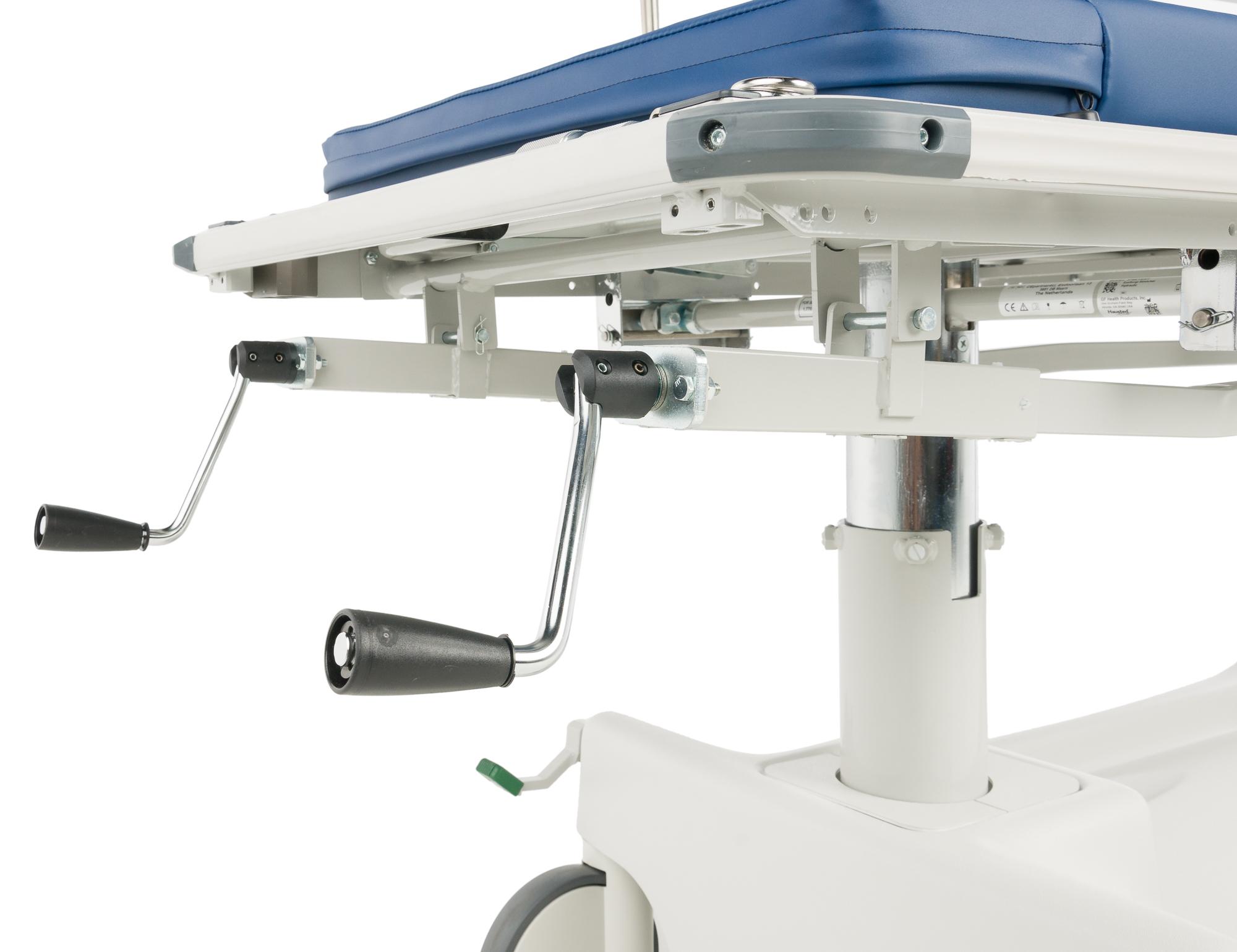

- Crank operated backrest adjusts 0° – 90° provides stability during procedures
- Crank operated knee-flex adjusts 0° – 75°
- Weight Capacity – evenly distributed: 500 lb (227 kg)
Accessories
- Post-Op/Pre-Op head section
- 3 Stage permanently mounted IV pole
- Built-in O2 tank holder (base)

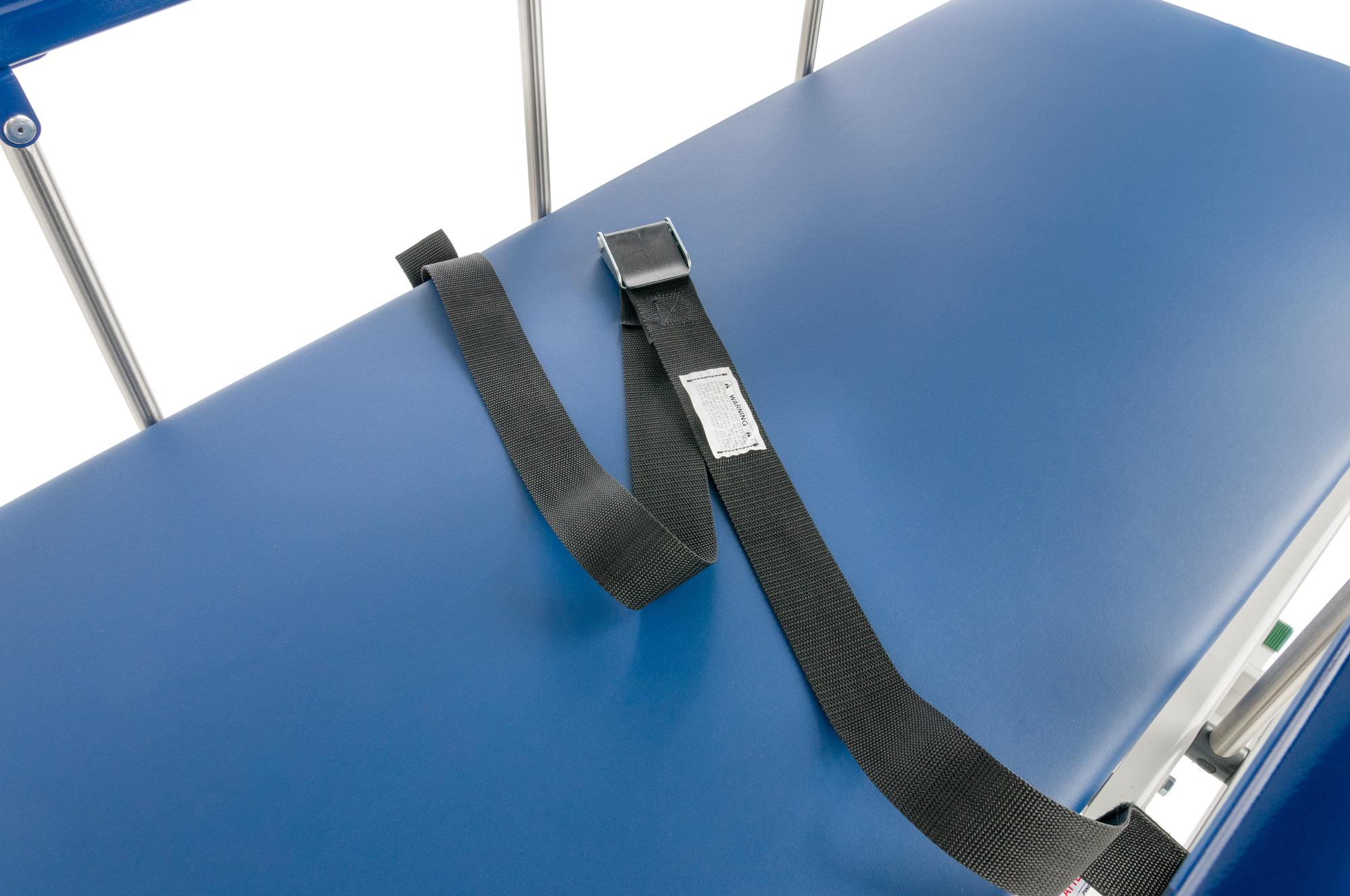

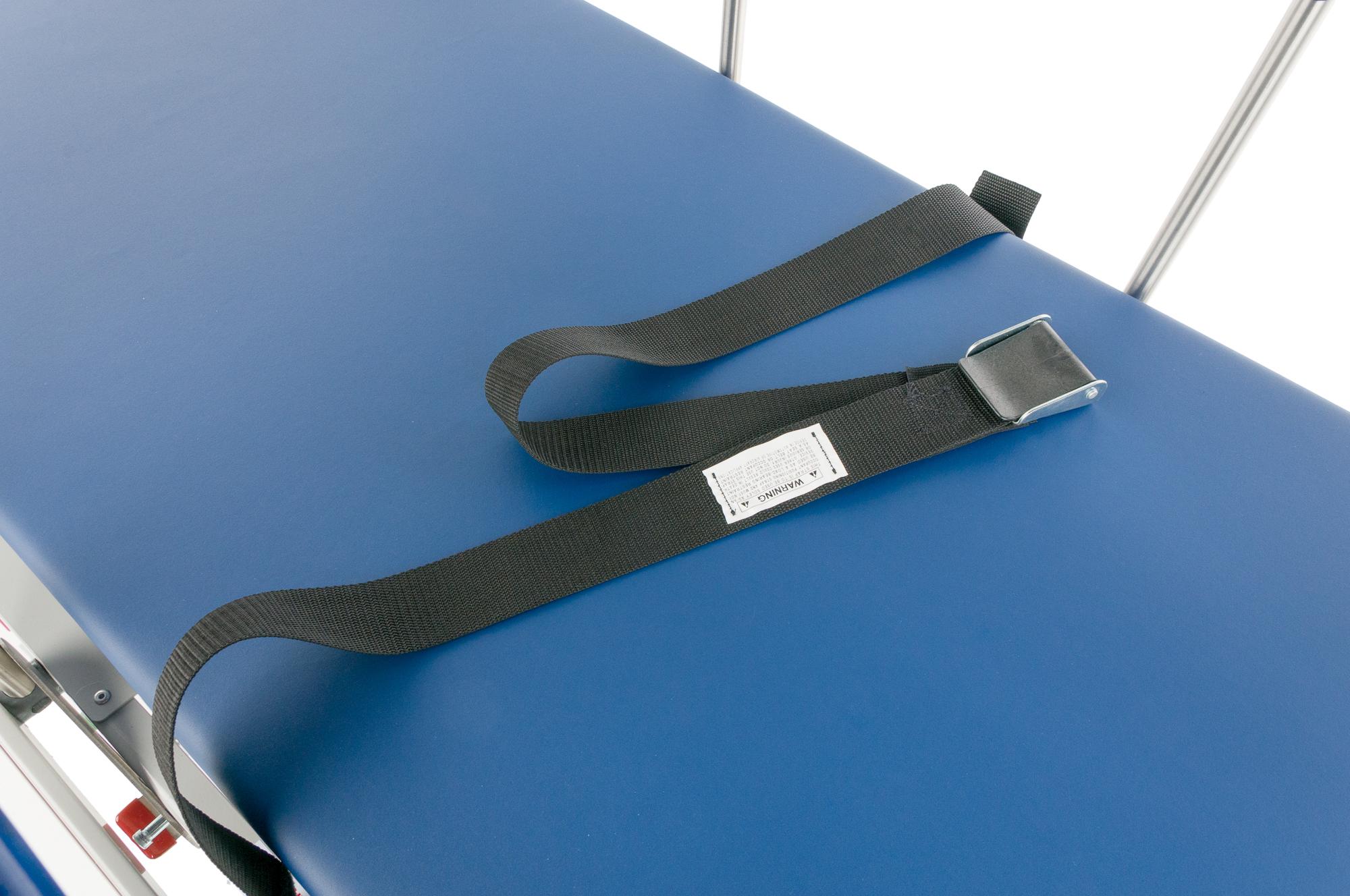

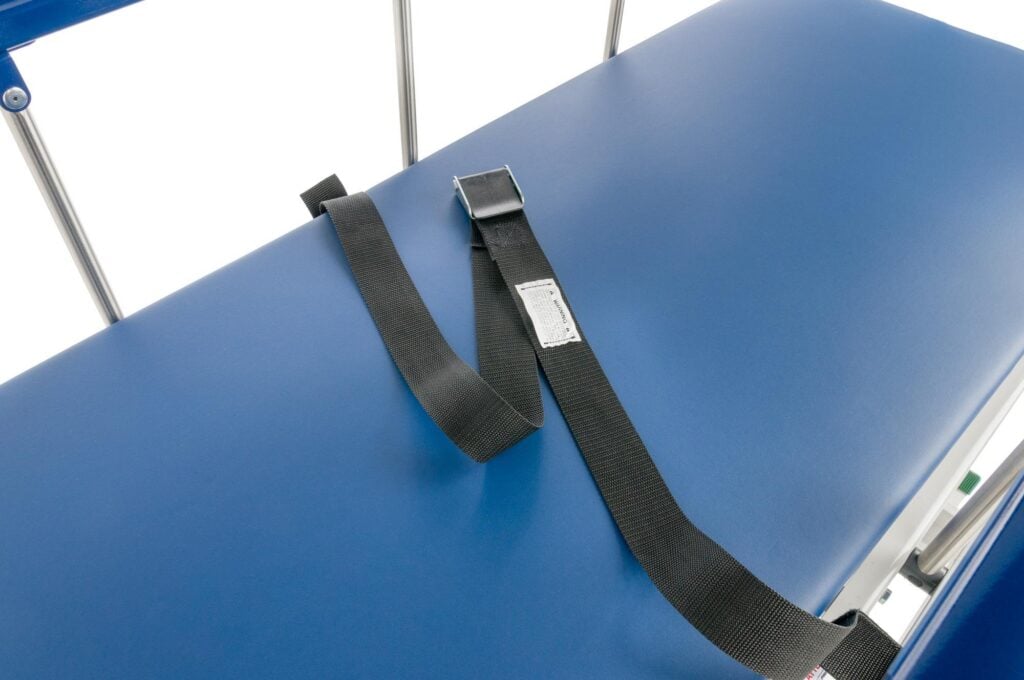

- Safety straps
- 3 inches (8 cm) comfort mattress pad, navy
Optional Accessories
- Surgical Accessory Rail – HSA400700
- Surgical Accessory Rail (Retracto™ Rails) – H076336
- Armboard with 2 inch (5 cm) Pad and 2 Mounting Rails – HSA400500

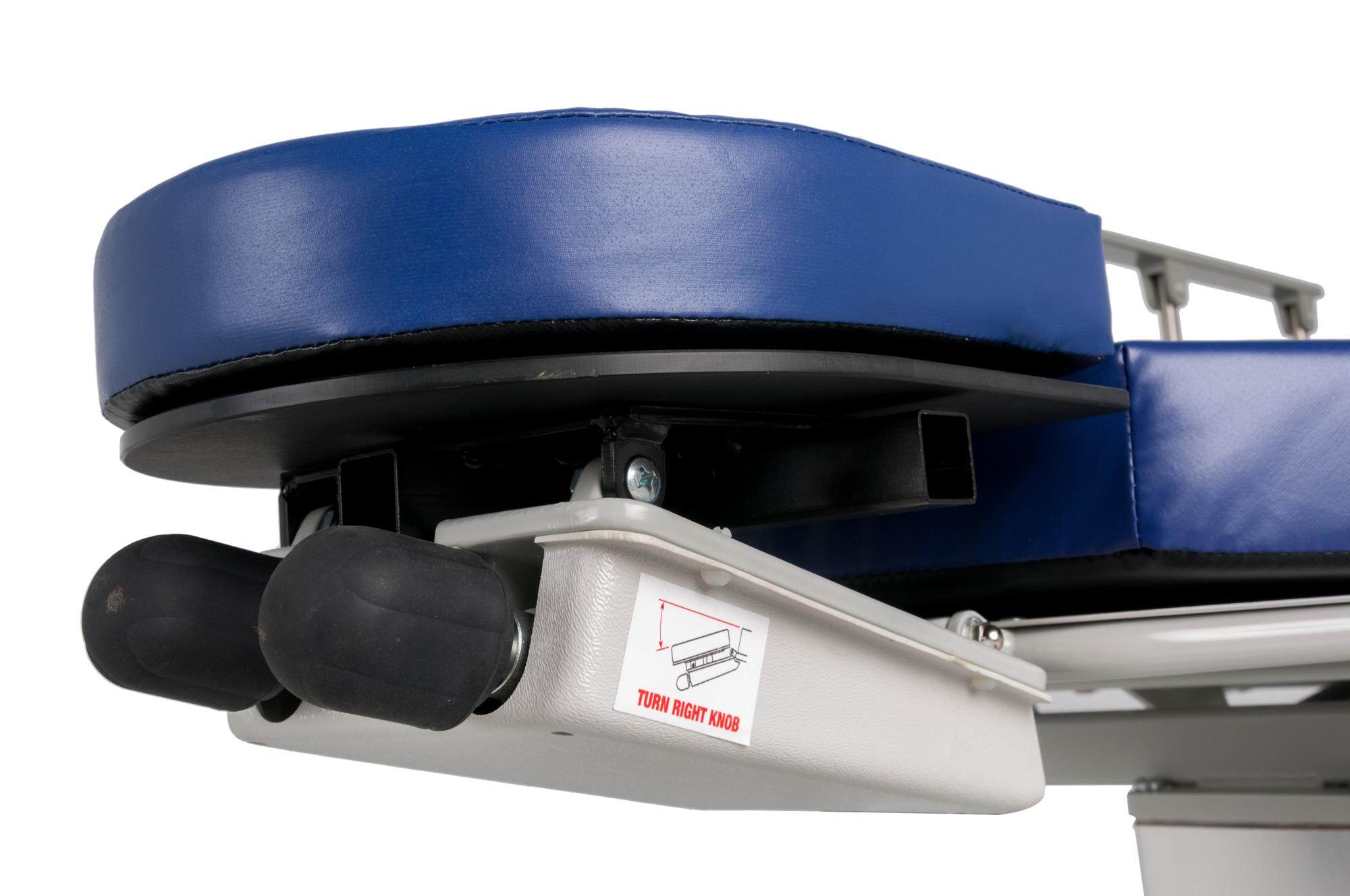

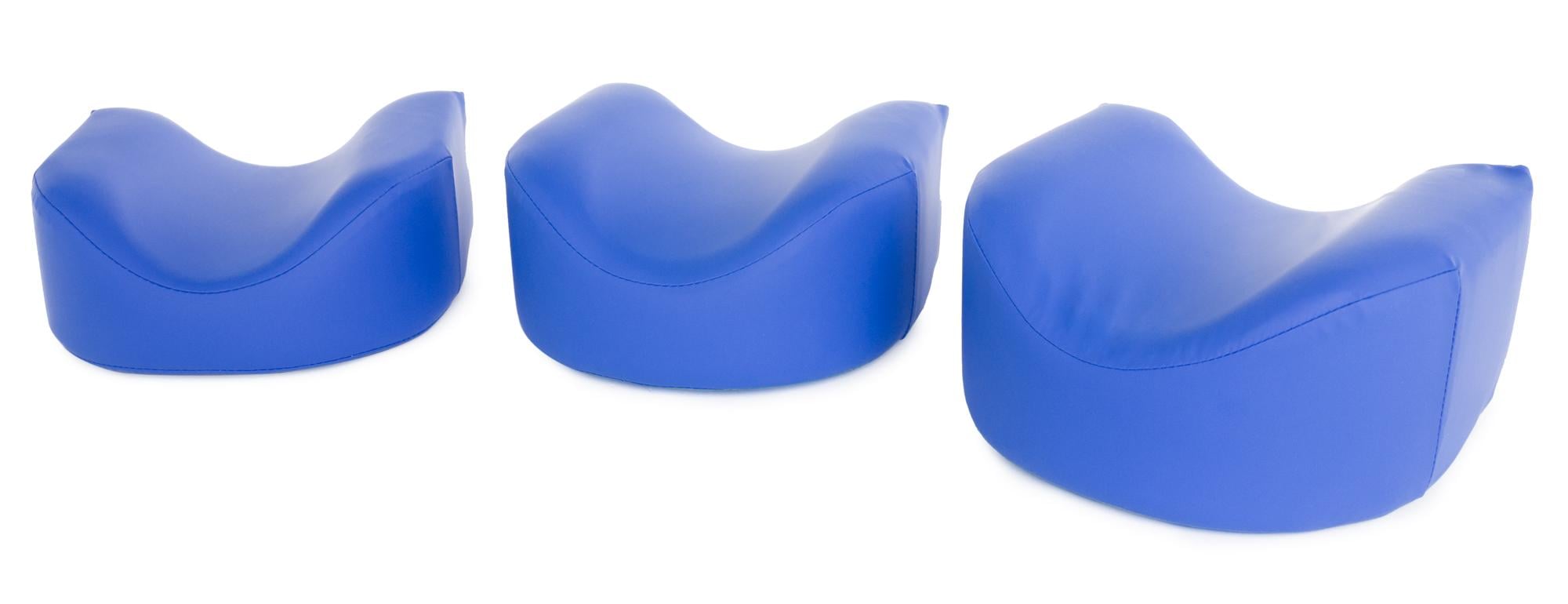

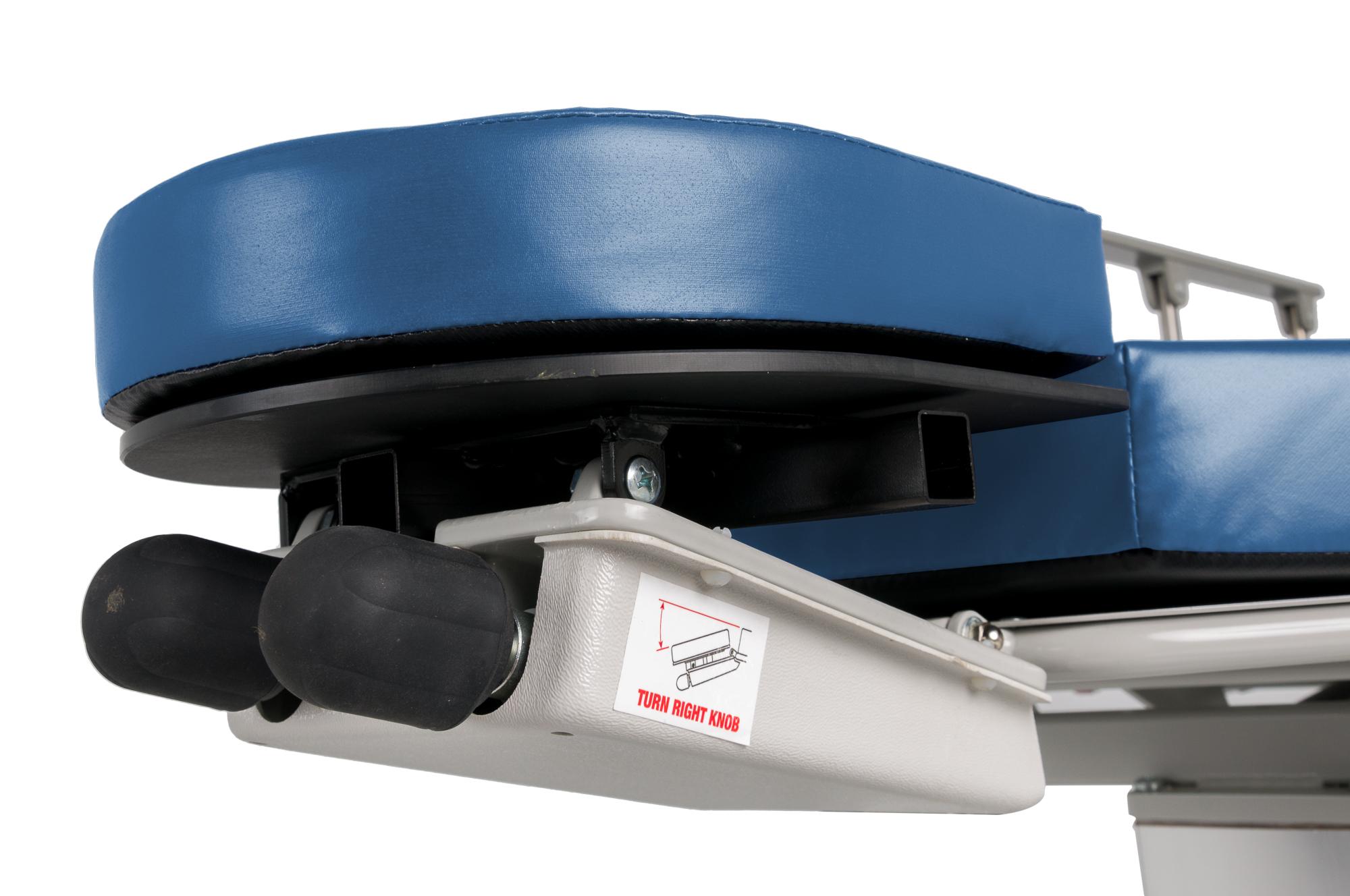

- Contoured Headrest Set (2, 3, 4 inches) – H0101ST
- Contoured Headrest, Navy, 4 inches (10.2 cm) – HSA063500B
- Contoured Headrest, Navy,, 3 inches (7.60 cm) – HP150830448B
- Contoured Headrest, Navy, 2 inches (5 cm) – HP150830447B

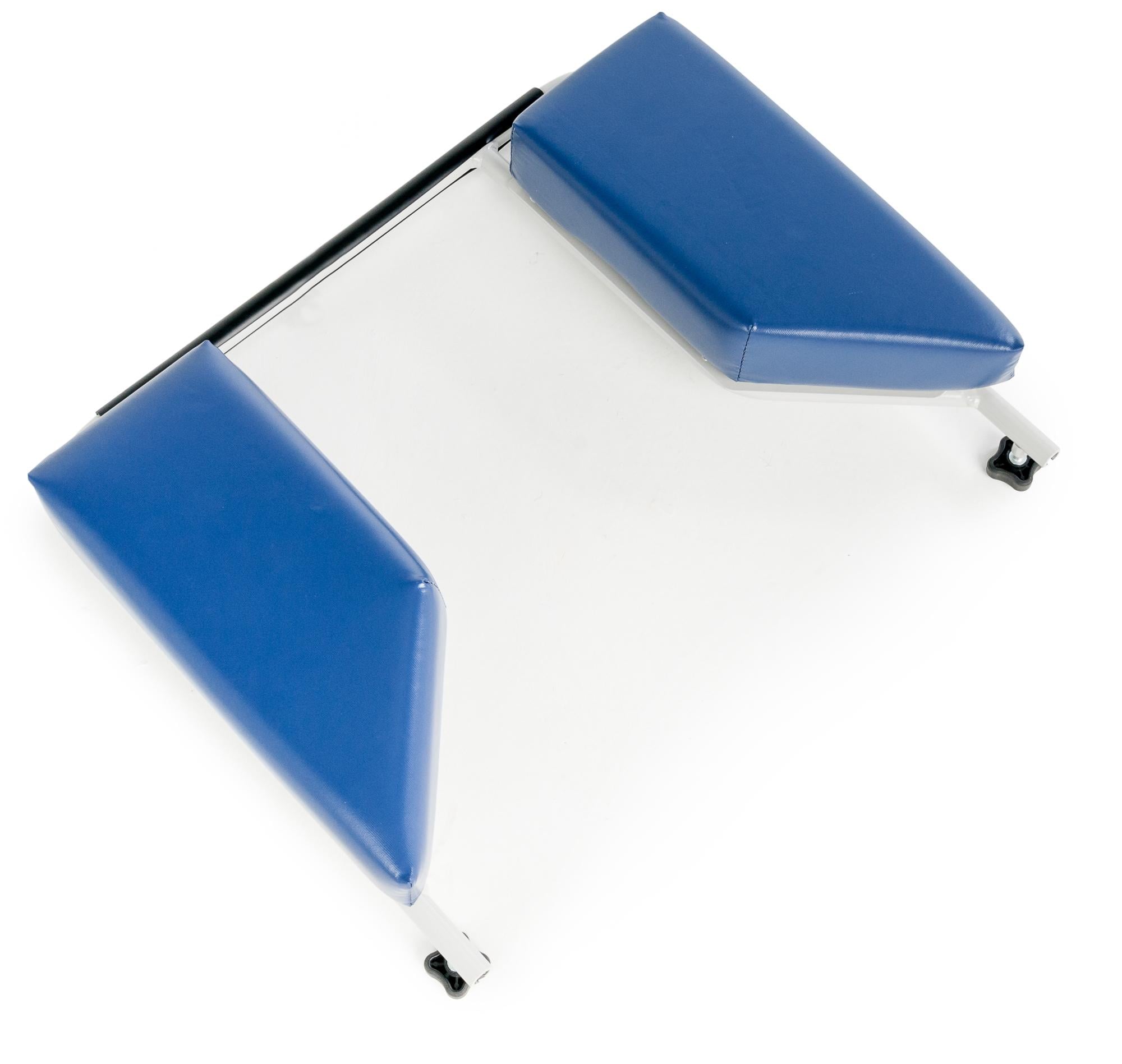

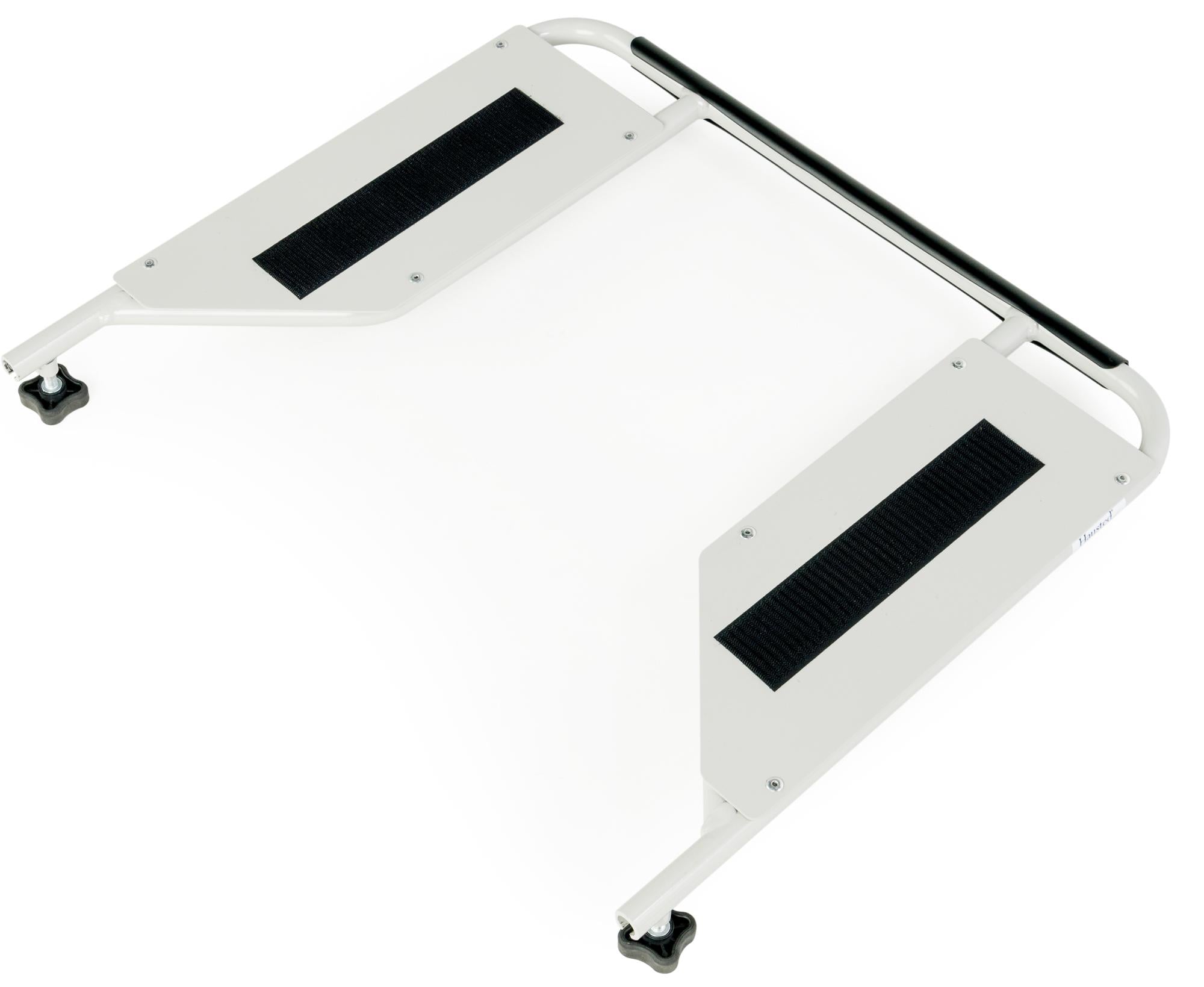

- Pre-Op/Post-Op Head Extension (standard width) – HSA078700
- Pre-Op/Post-Op Head Extension (wide width) – HSA079000
- Footboard w/ Monitor Shelf and Chartholder (standard width) – H06883600
- Footboard w/ Monitor Shelf and Chartholder (wide width) – H06884600
- Footboard with Chart Holder (standard width) – H00CR6B00
- Footboard with Chart Holder (wide width) – H0CRW6B00
- Fixed height IV pole, 42 inches (107 cm) – H000E1700
- Telescoping IV pole 27 inches (68 cm) – 54 inches (137 cm) – H00018
- Monitor Shelf (wide width) – H00WN4500
- Monitor Shelf (standard width) – H00N4500
- OxyFlex II with Flexible Support Structure and Adapter, Well Mount – HSA400600
- Disposable OxyFlex II Diffusion Trays (25/case) – HSA008000
- Vertical Oxygen Tank Holder Assembly – H12845000
- Paper Roll Holder – H06925700
- Universal Patient Tray – H06536600
- Push Handles (Foot End Only) – H07565600
- Rail Set, 4 Leg Retracto™ Rail – HPD0602
- Safety Straps with Buckle – H00001200

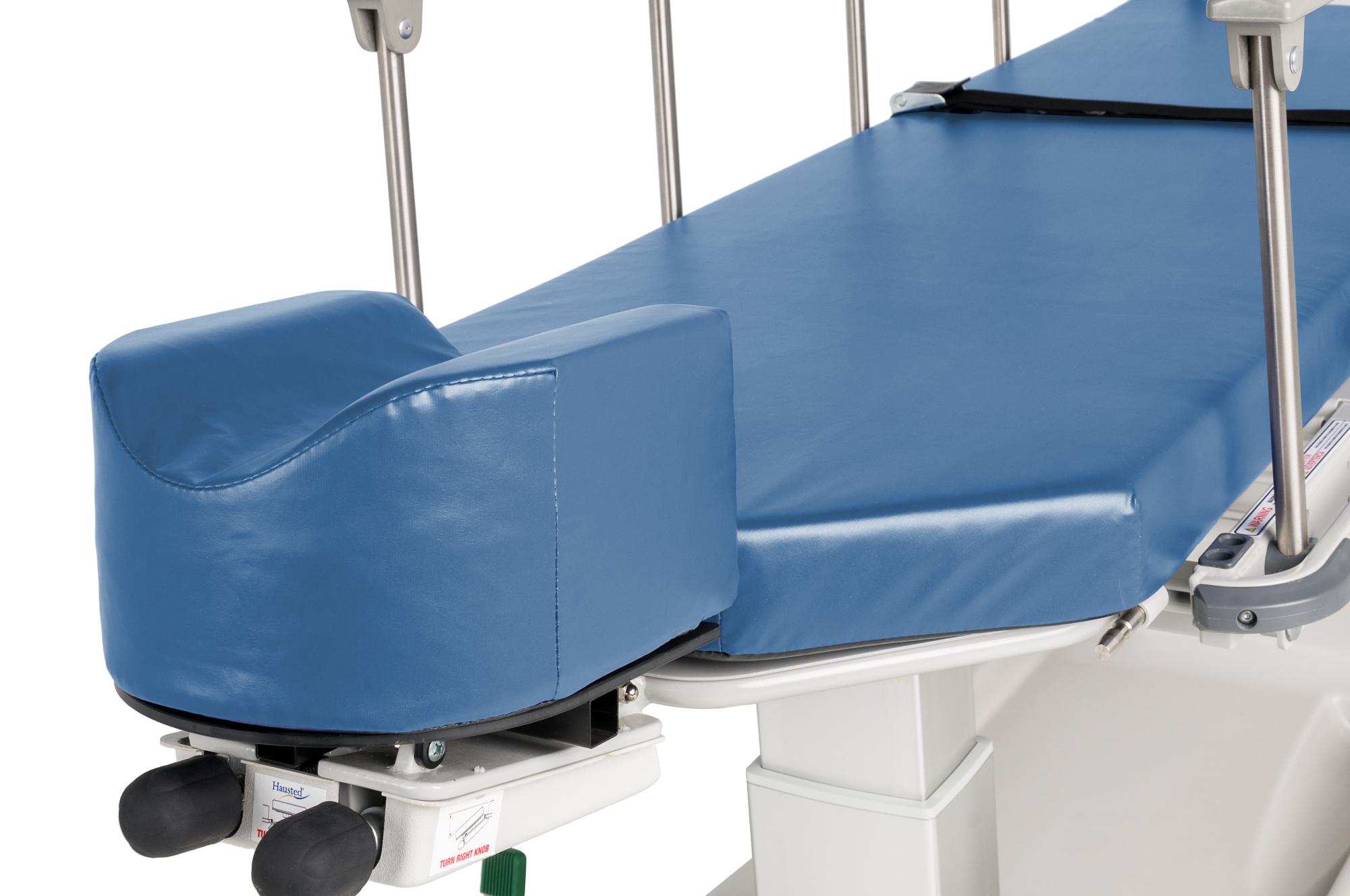

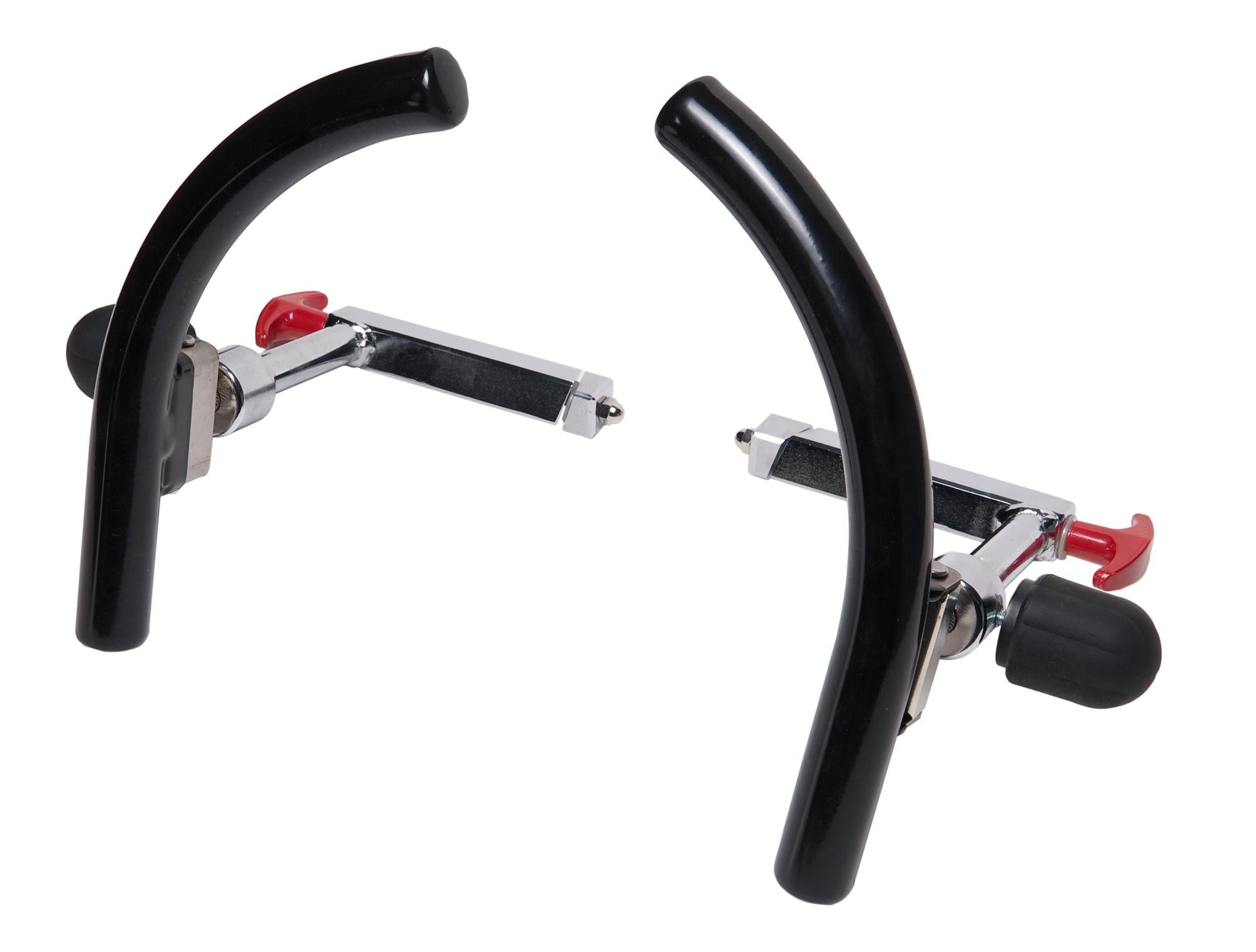

- Dual Lateral Wrist Rest – HSA078500

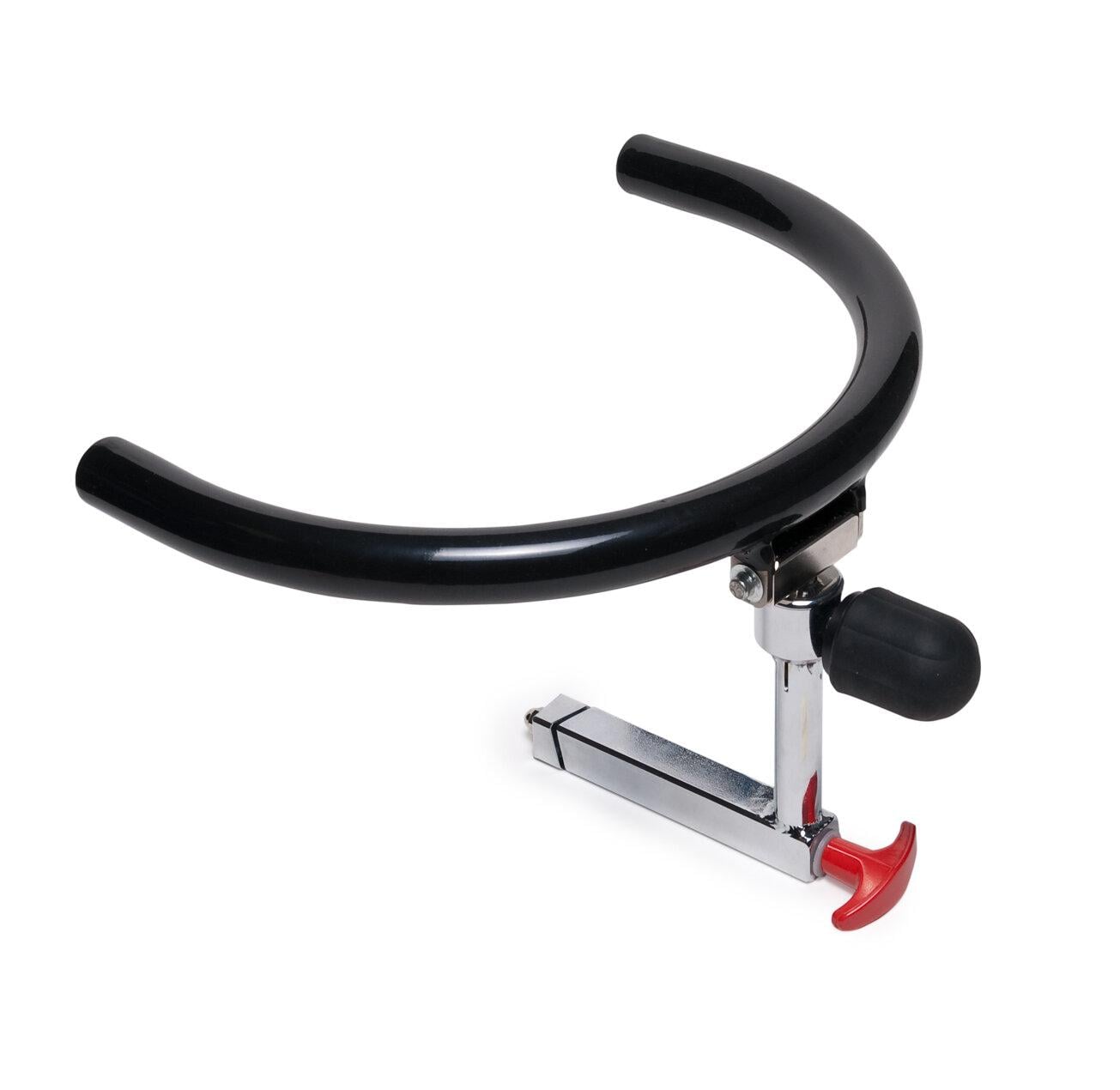

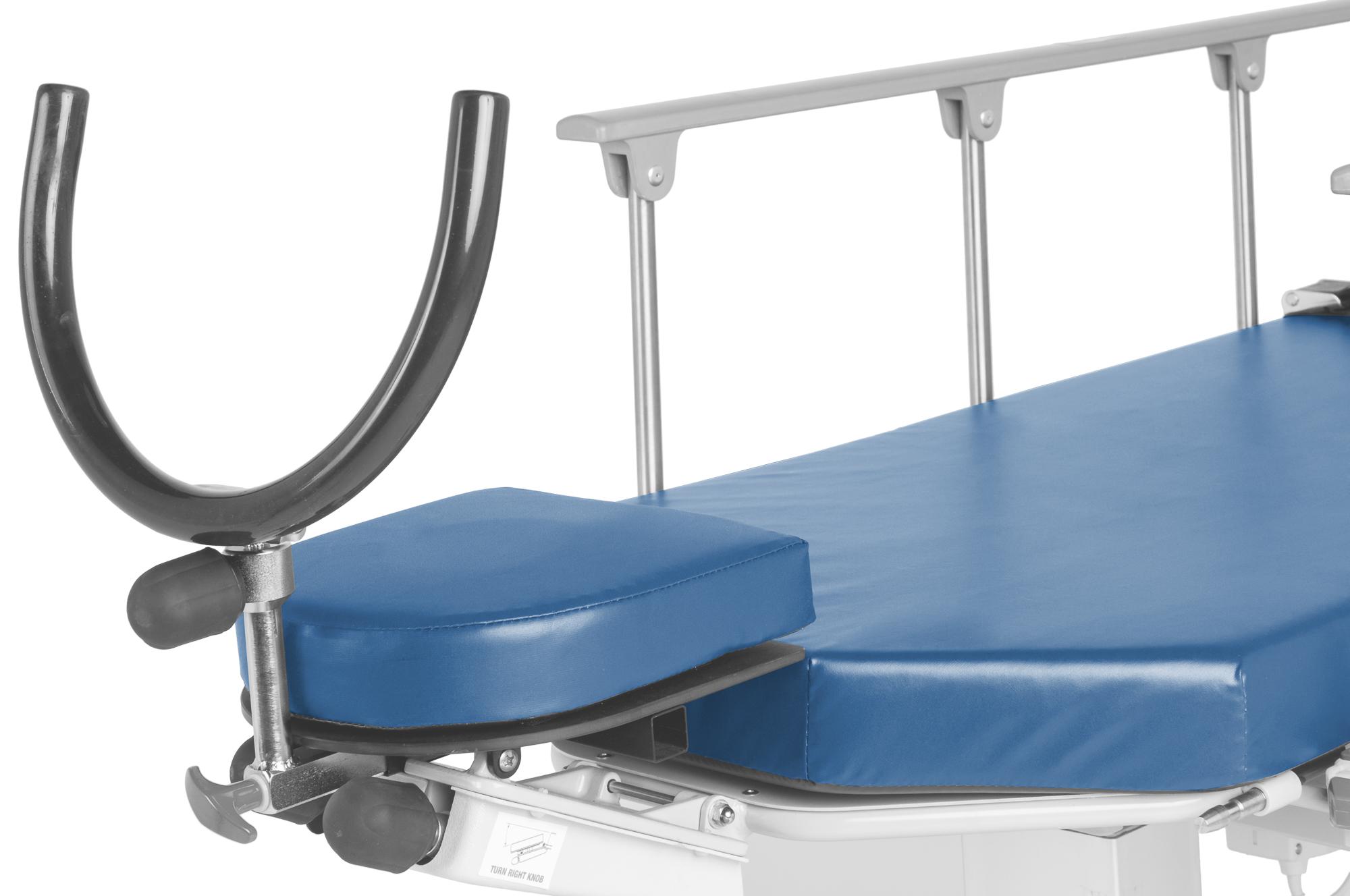

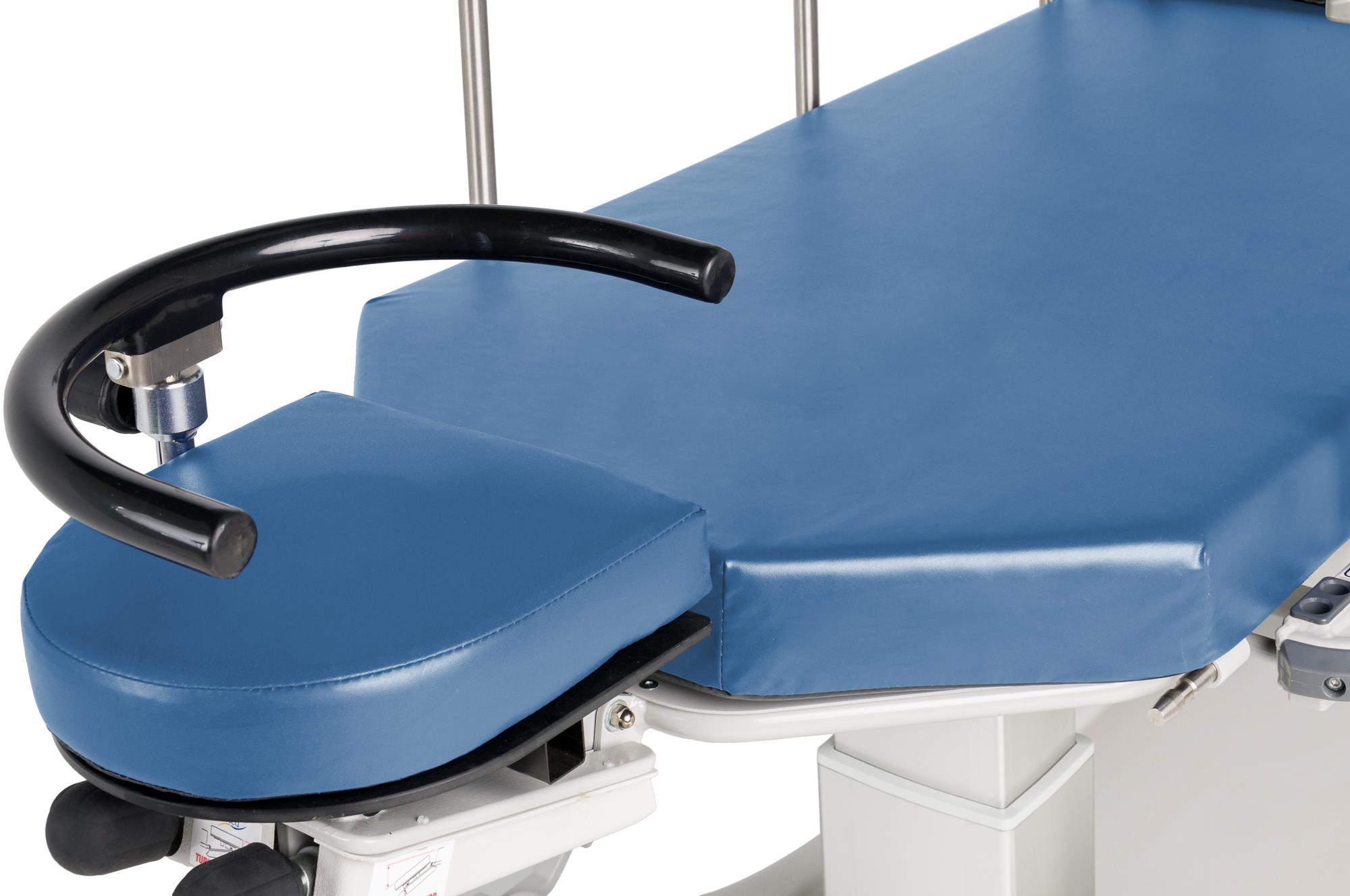

- Full “U” Wrist Rest – HSA078600
- Full “U” Wrist Rest (Large) – HSP100400
