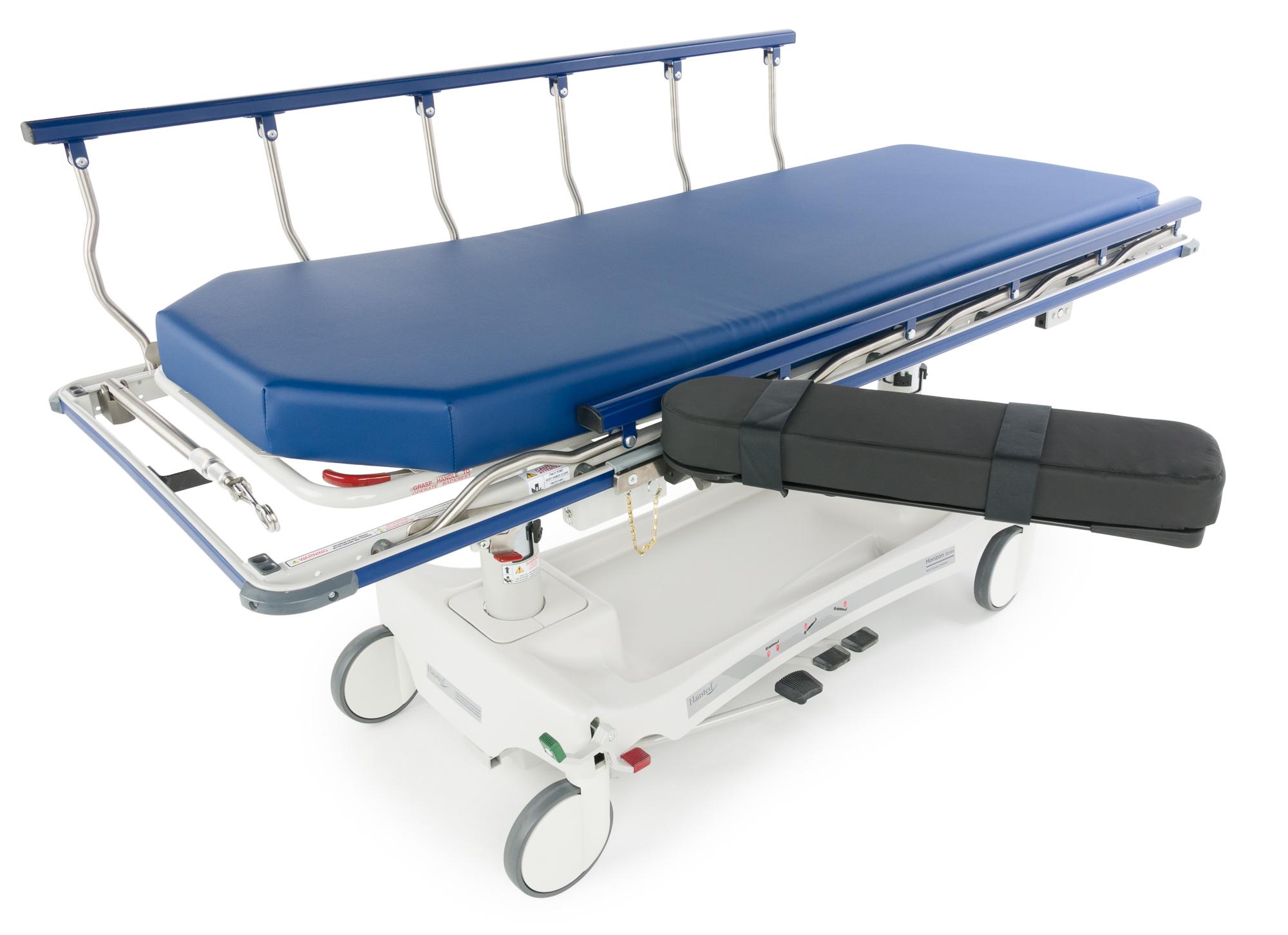

The 462 Horizon Retracto Rail stretcher is a dependable choice for general transportation needs. Featuring choice of 500 lb  (227 kg) or 800 lb (363 kg) weight capacity and standard or wide widths to accommodate most patients comfortably. Center Track Steering, Dual Side foot controls, and Pneumatic Assist Backrest provide greater patient and caregiver safety.

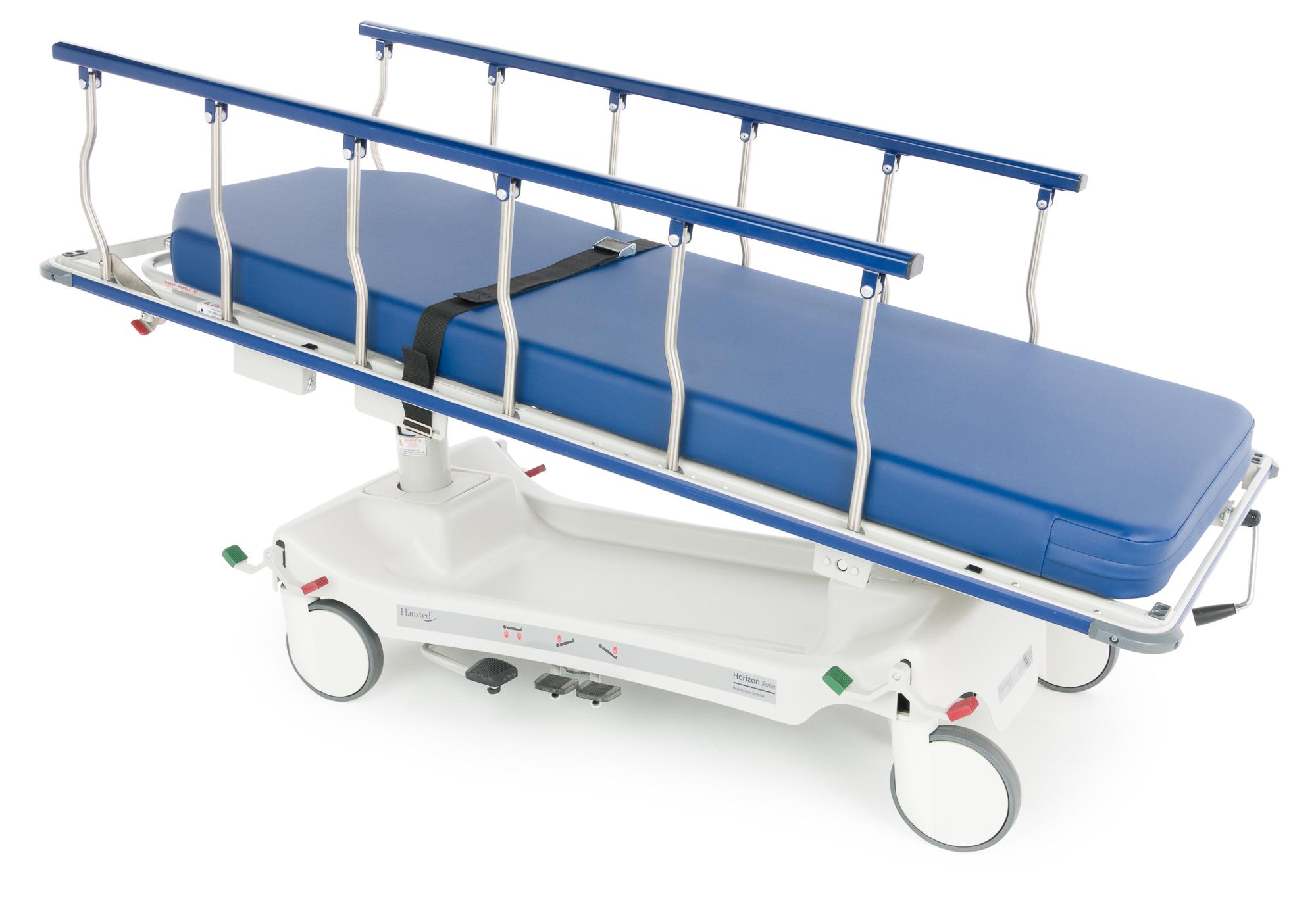

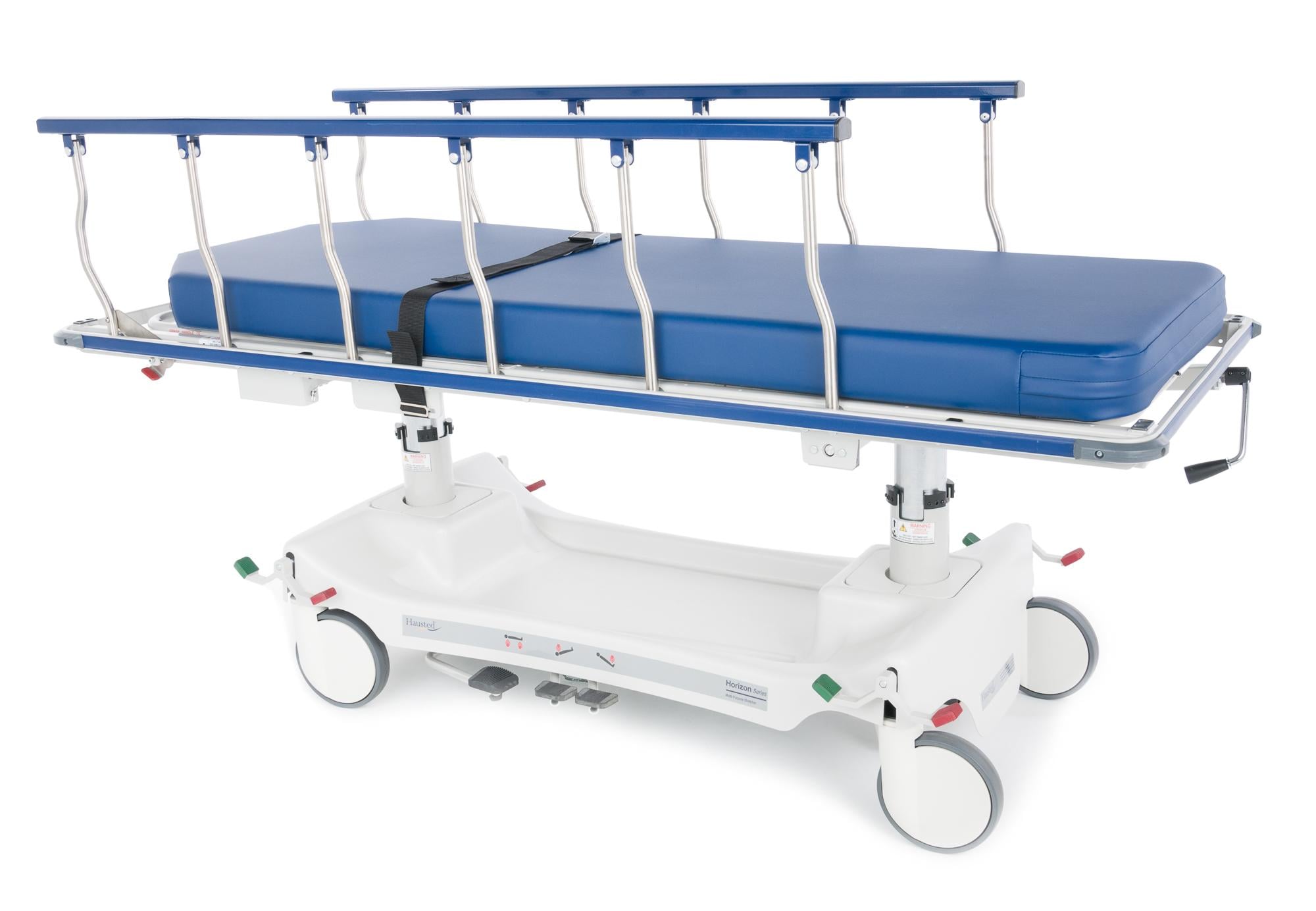

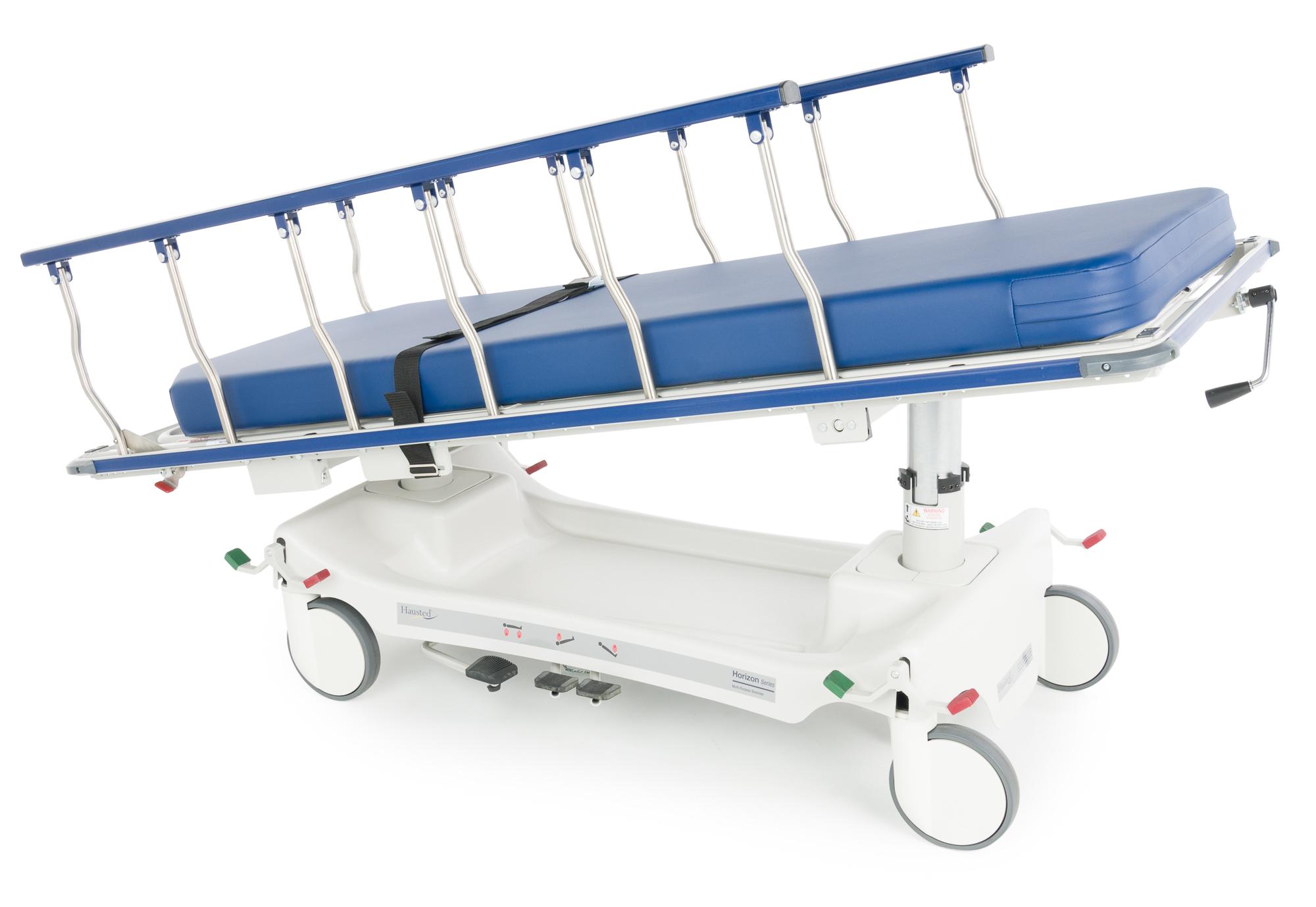

462 SERIES RETRACTO™ RAIL HORIZON HYDRAULIC STRETCHER

Clinical Environment

  • Hospital Transport
  • Surgical
  • Outpatient

462EMCST & 462GMCST – standard width

  • Patient Surface: 25 inches (63.5 cm)   x 76 inches (193 cm)
  • Maximum Weight Capacity – evenly distributed: 500 lb (227 kg)
  • Crank Operated Knee-Flex Adjusts 0 ̊ – 70 ̊ / Manual Lower Limb Lift – 462GMCST Model

462HMCSTwide width

  • Patient Surface: 30 inches (76 cm)  x 76 inches (193 cm)
  • Maximum Weight Capacity – evenly distributed: 800 lb (363 kg)
  • Crank Operated Knee-Flex Adjusts 0 ̊ – 70 ̊ / Manual Lower Limb Lift – 462HMCST Model

Features

  • Dual side foot controls for easy height adjustment and Trendelenburg positioning

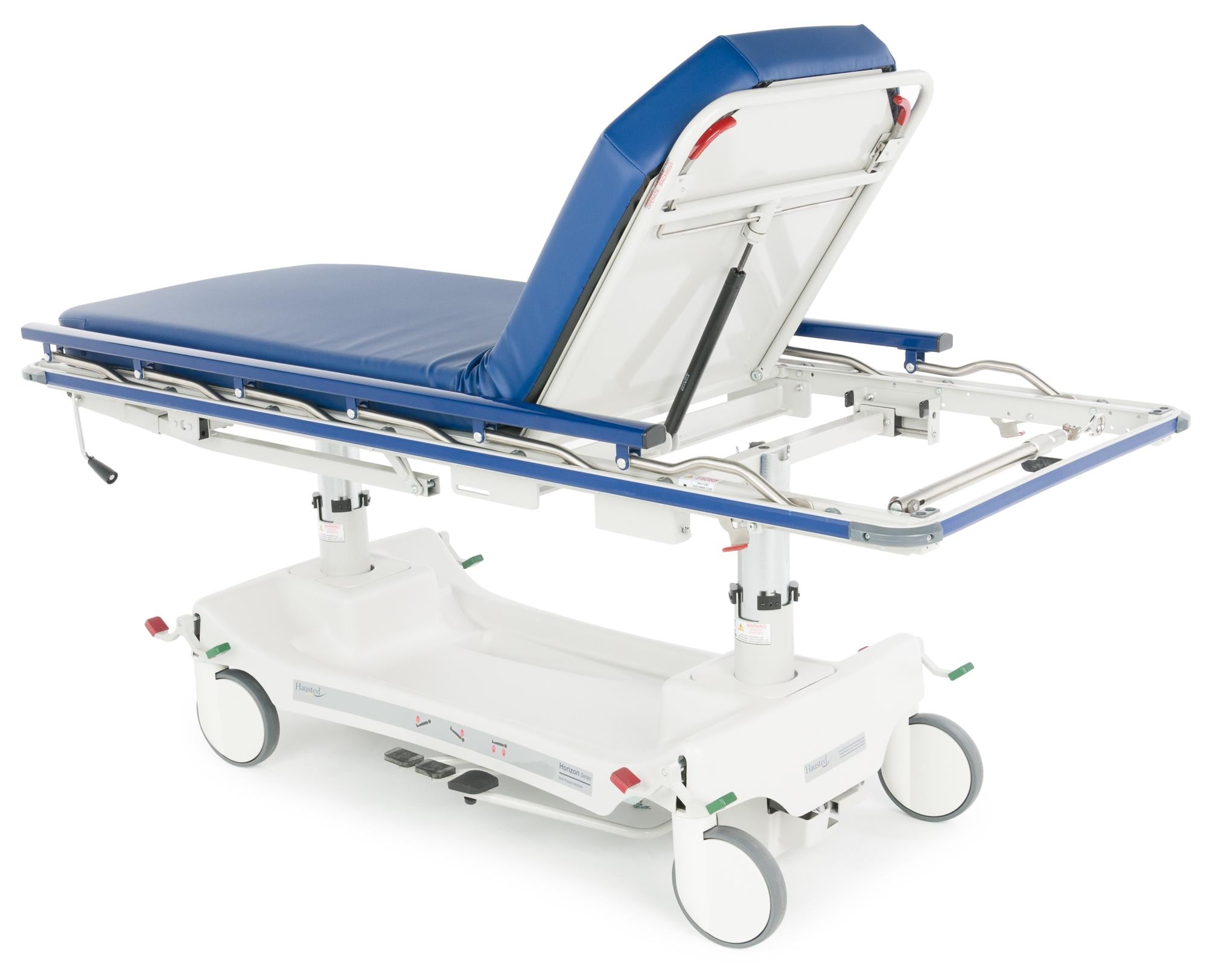

  • Pneumatic assist backrest adjusts 0° – 90° for easy patient positioning and enhanced staff safety
  • Center track steering for superb mobility
  • Brake and steer controls accessible from all four corners
  • Knee flex feature for enhanced patient comfort is available on several models
  • Stainless steel 3-position Retracto rails offer convenient patient access
  • Comfort mattress pad

Accessories

  • 3 Stage permanently mounted IV pole
  • Built-in oxygen tank holder (base)
  • Safety strap

 Optional Accessories

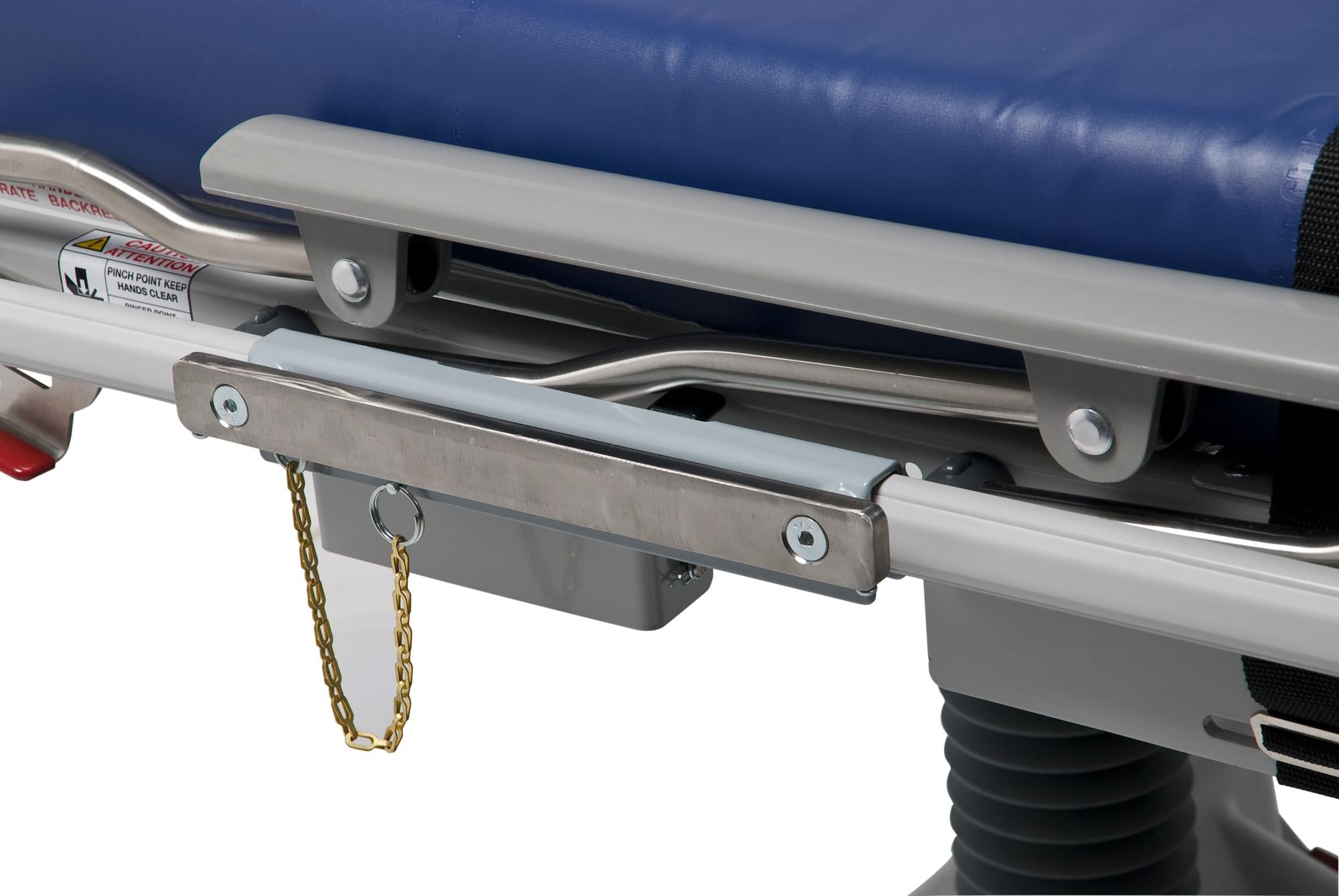

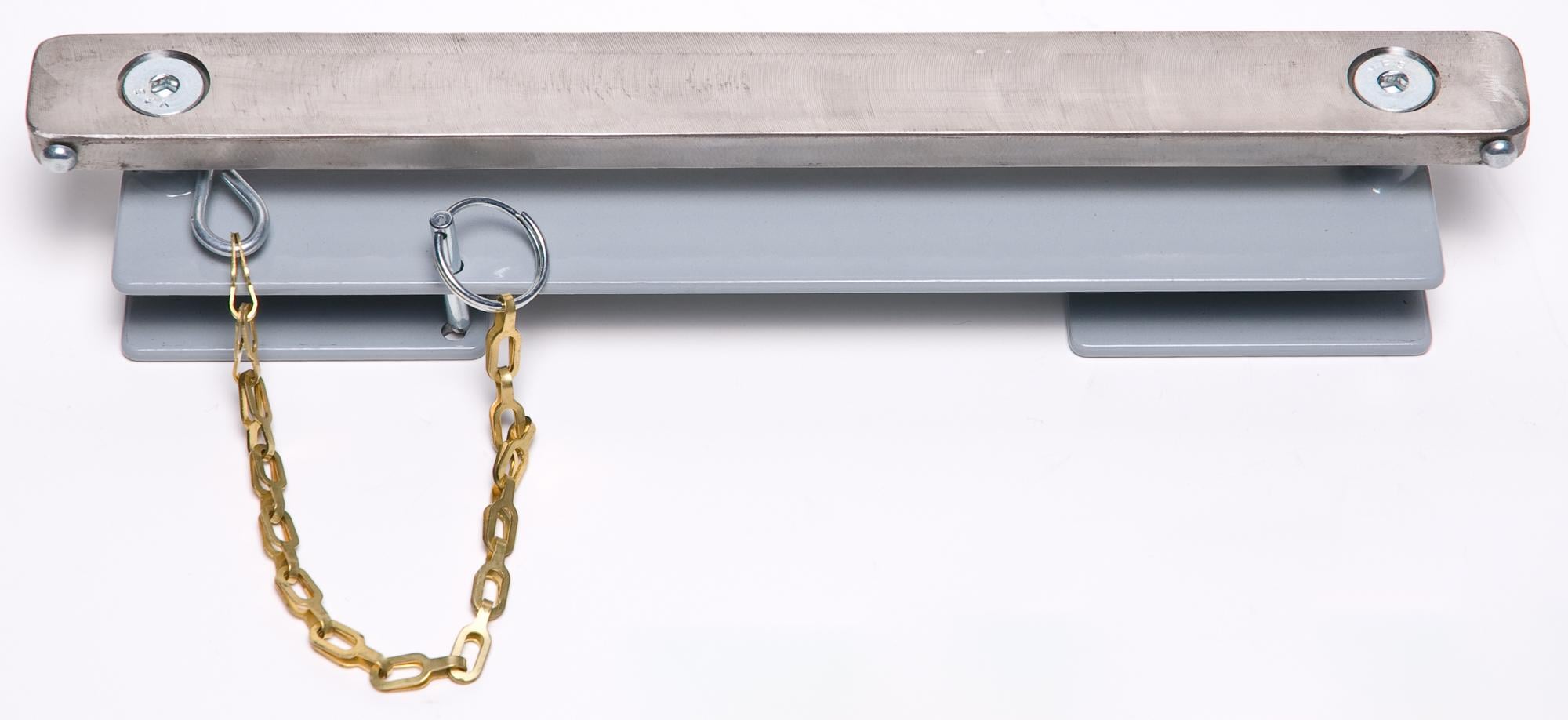

  • Surgical Accessory Rail (Retracto Rails) – H076336
  • Lateral X-Ray Cassette Holder – H00005400
  • Drainage Bag Hook – H12884A
  • Articulating Headrest
    • Standard Width 22 in (57 cm) (462EMCST & 462GMCST) – H131490

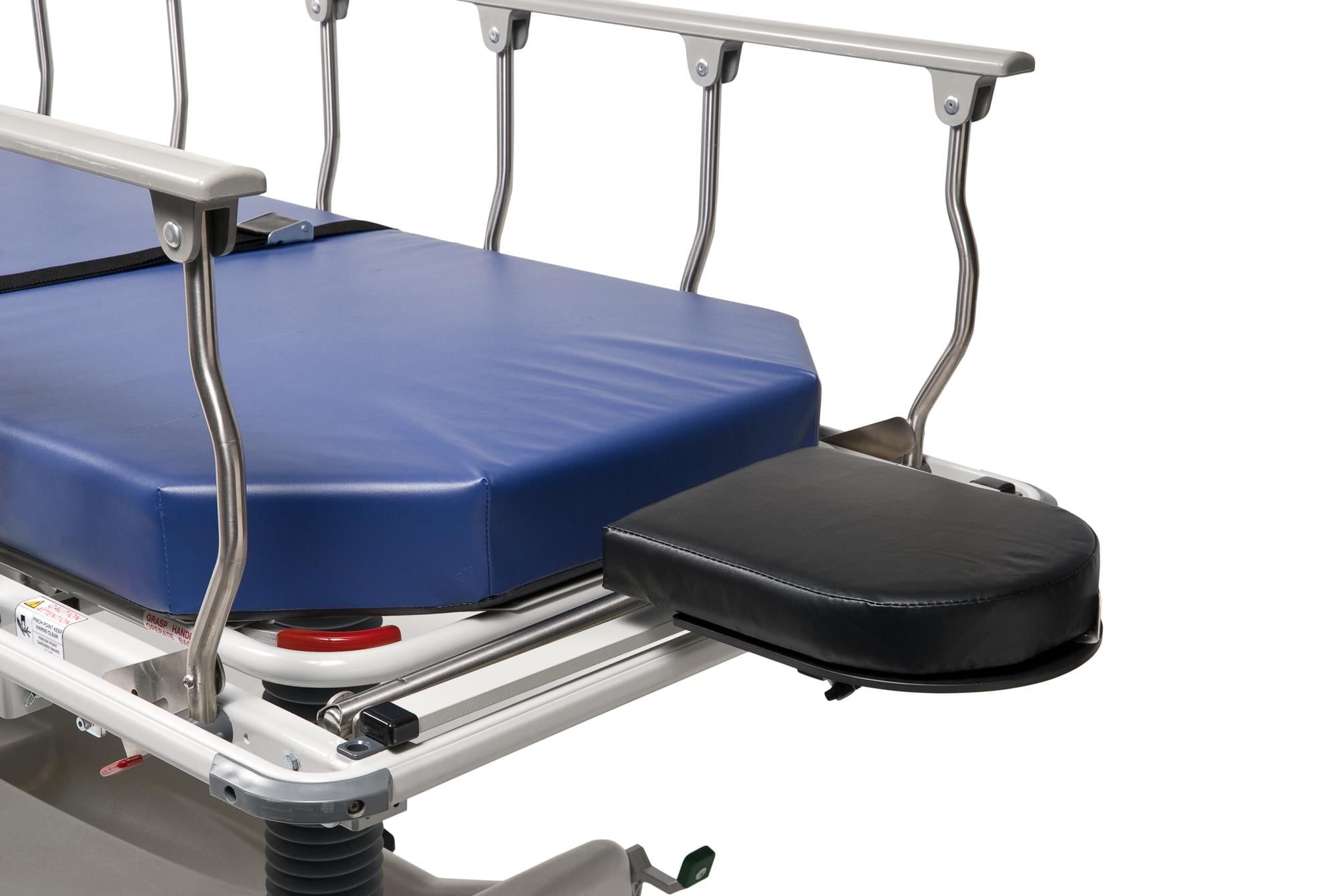

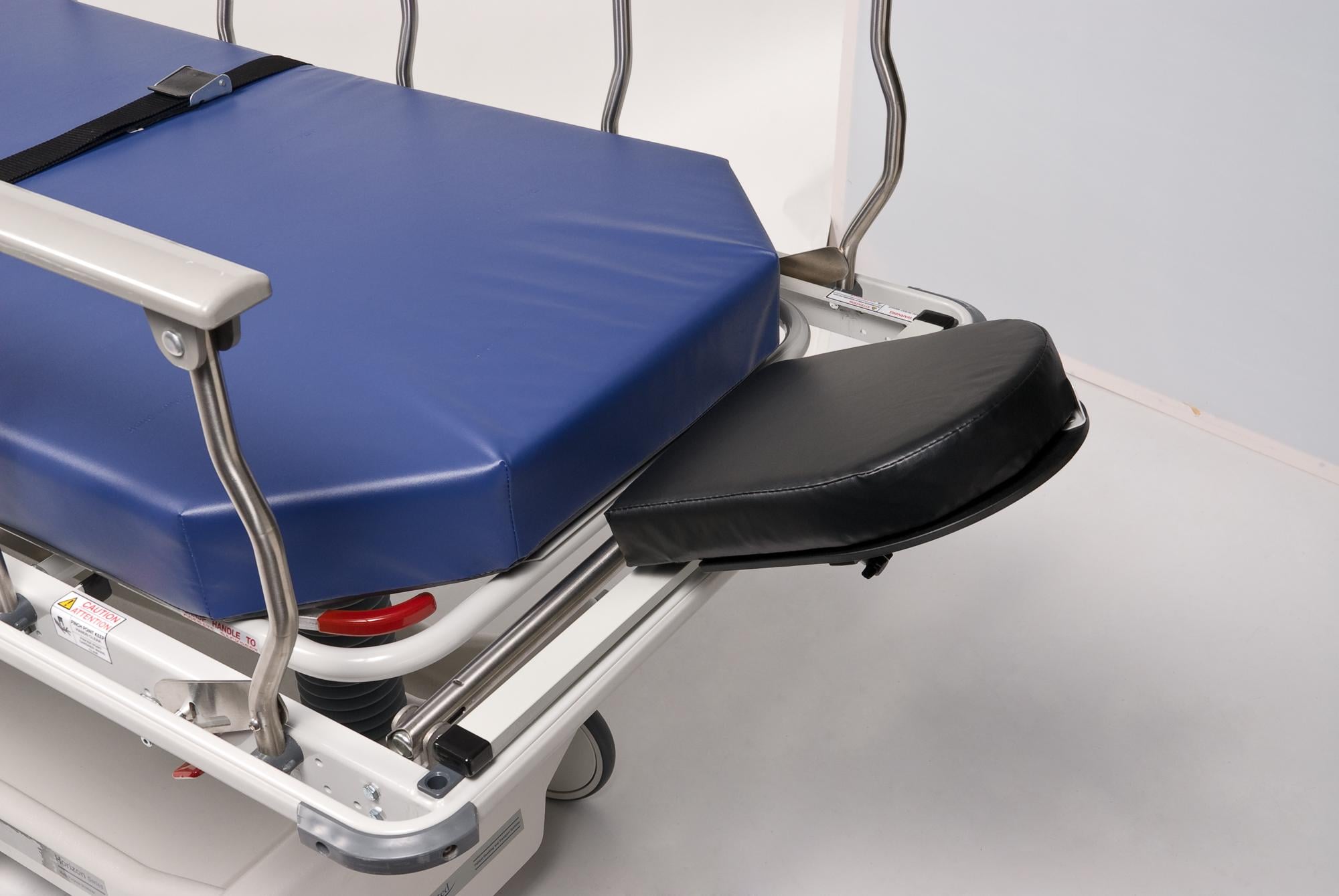

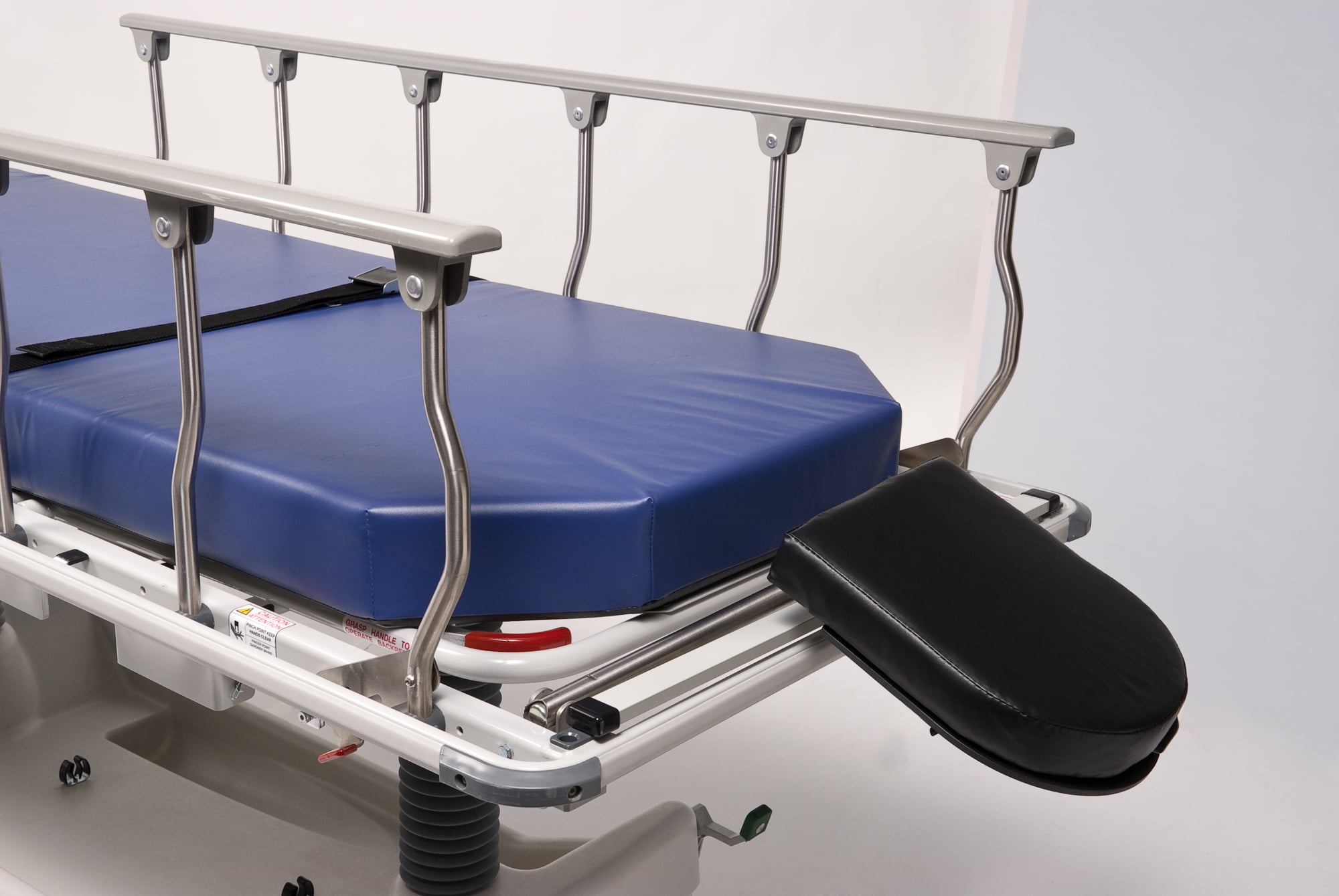

    • Wide 27 in (69 cm) (462HMCST) – H131495
  • Footboard with Monitor Shelf and Chartholder
    • Standard Width (462EMCST & 462GMCST) – H06883600

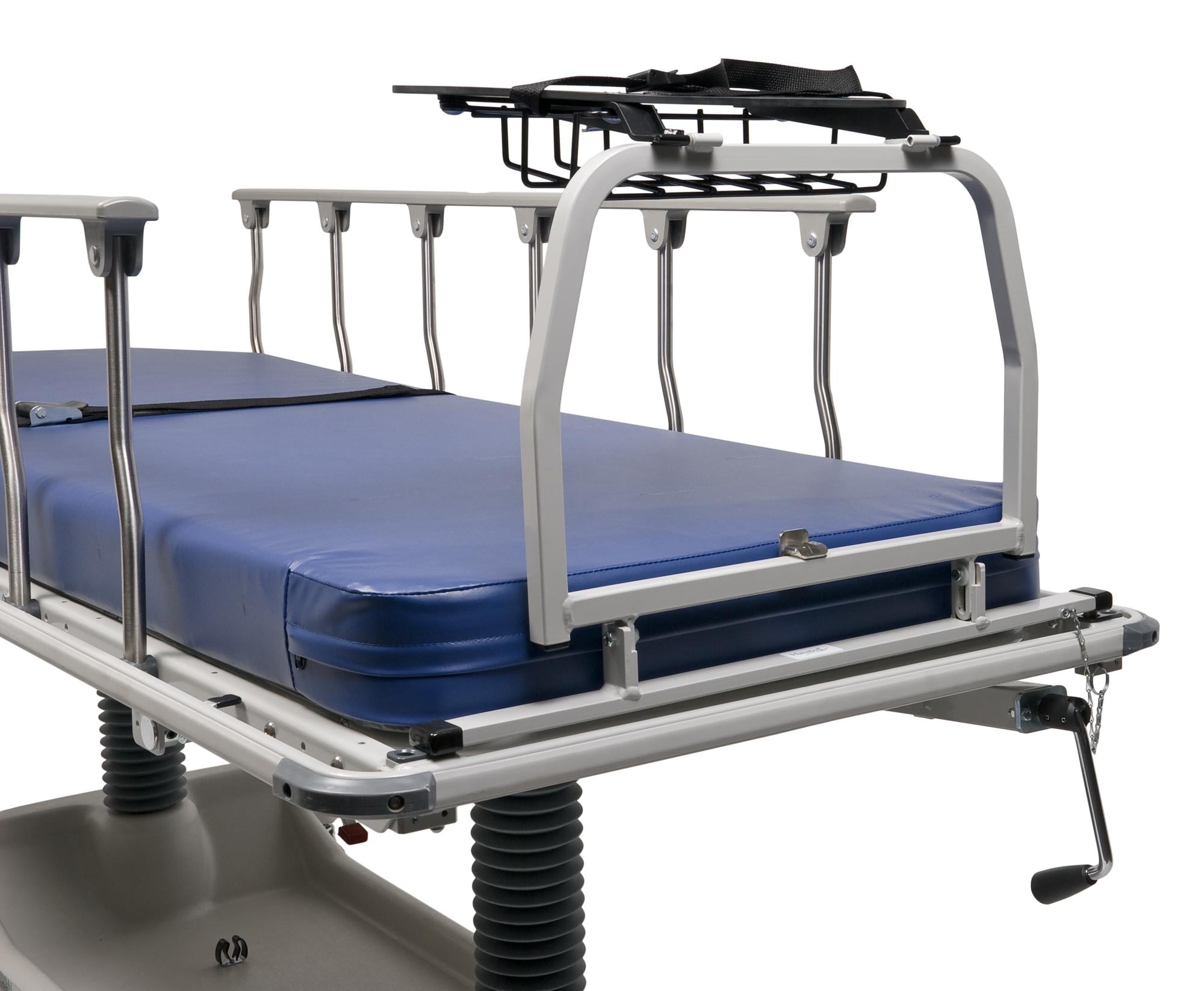

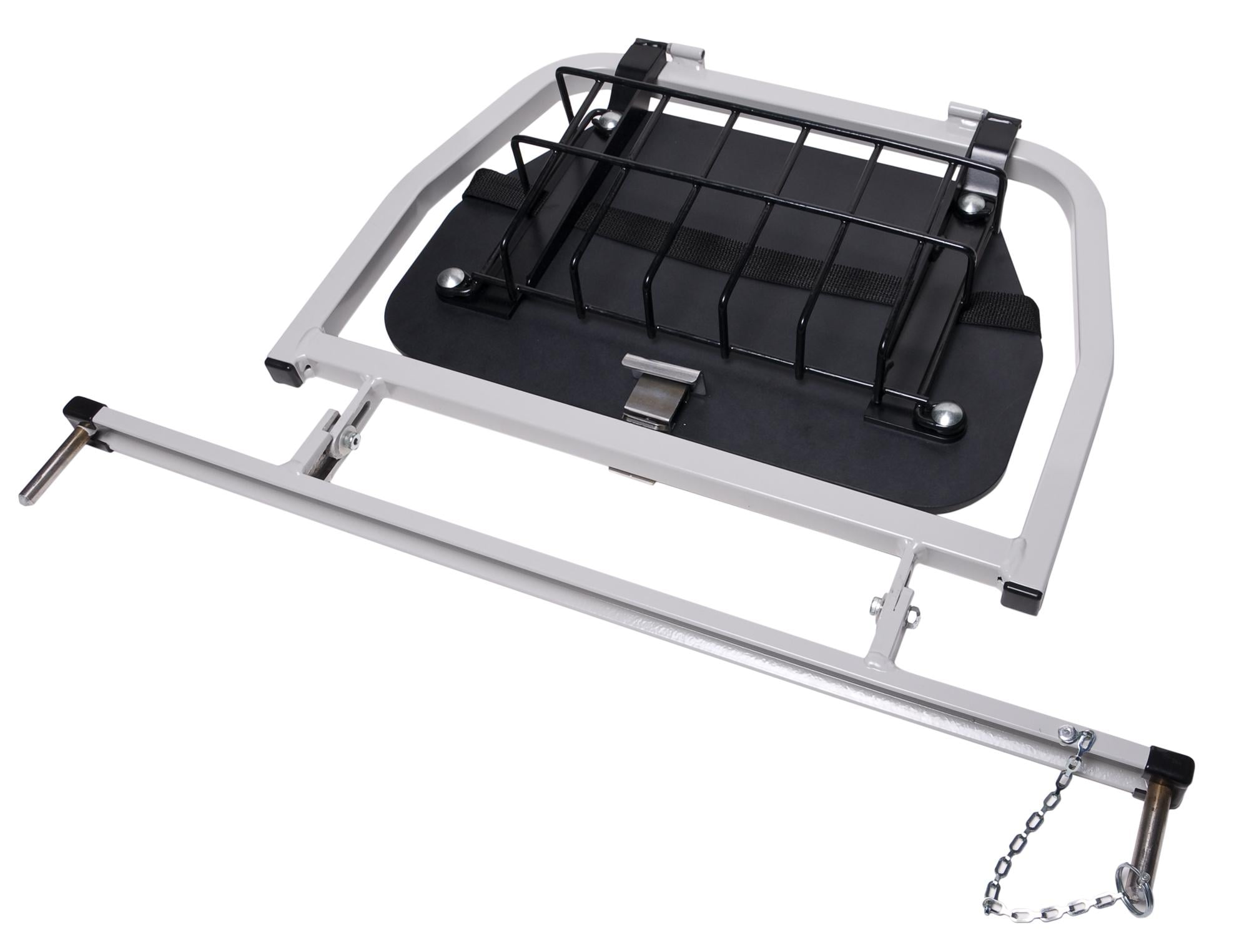

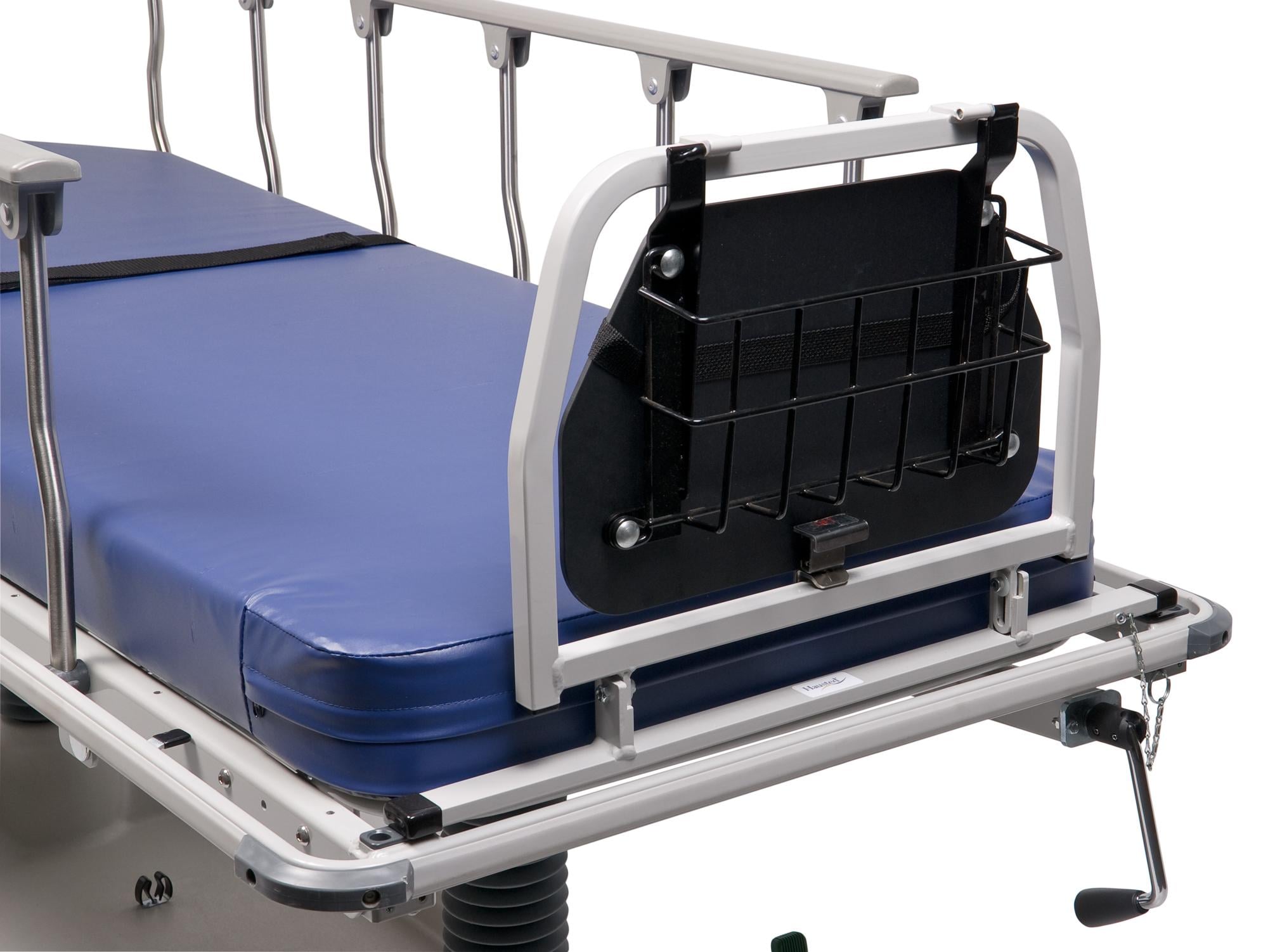

    • Wide (462HMCST) – H06884600
  • Head/Footboard (Stationary)
    • Standard Width (462EMCST & 462GMCST) – H00006B00
    • Wide (462HMCST) – H000W6B00
  • Footboard w/ Chartholder
    • Standard Width (462EMCST & 462GMCST) – H00CR6B00

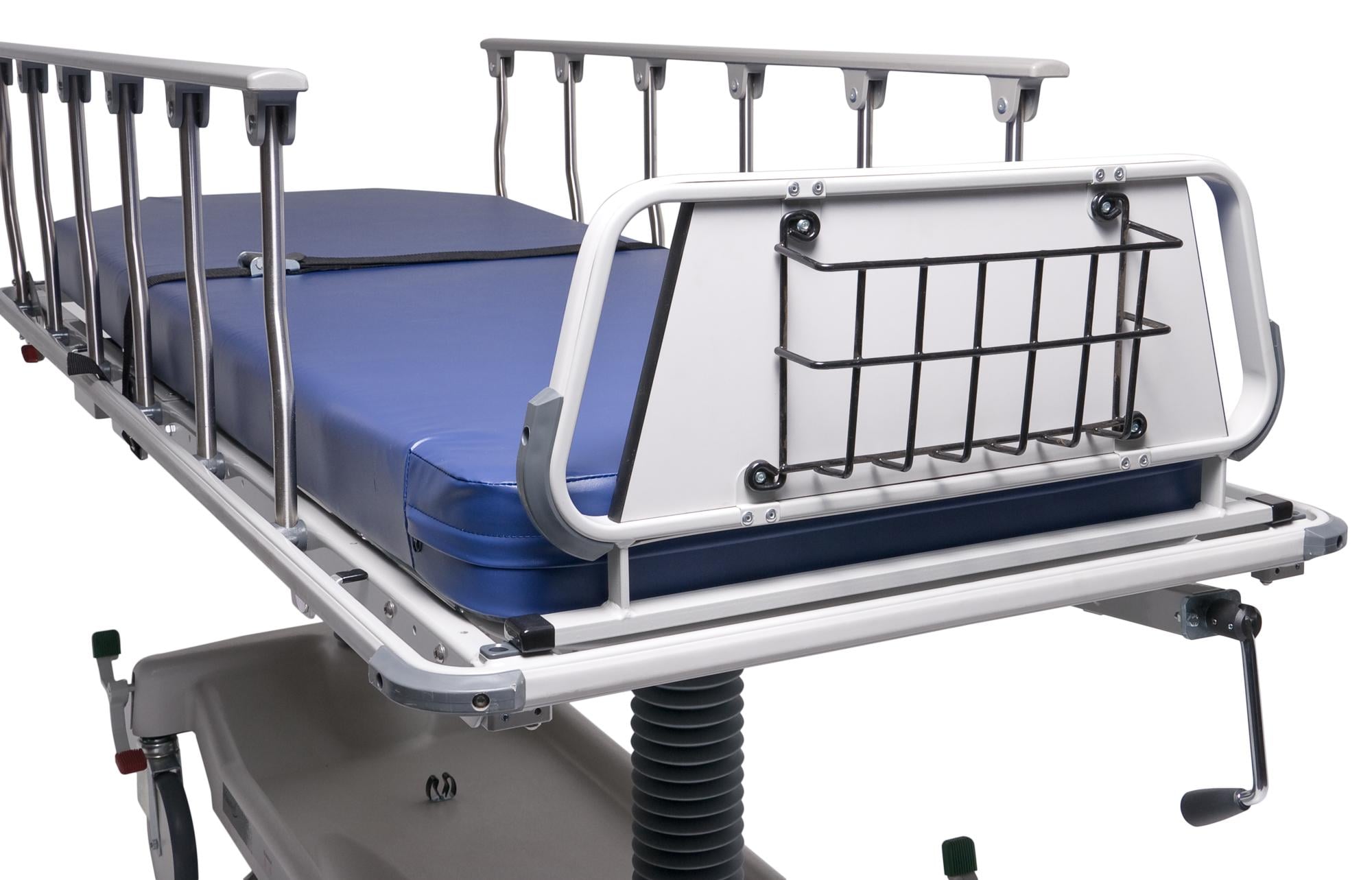

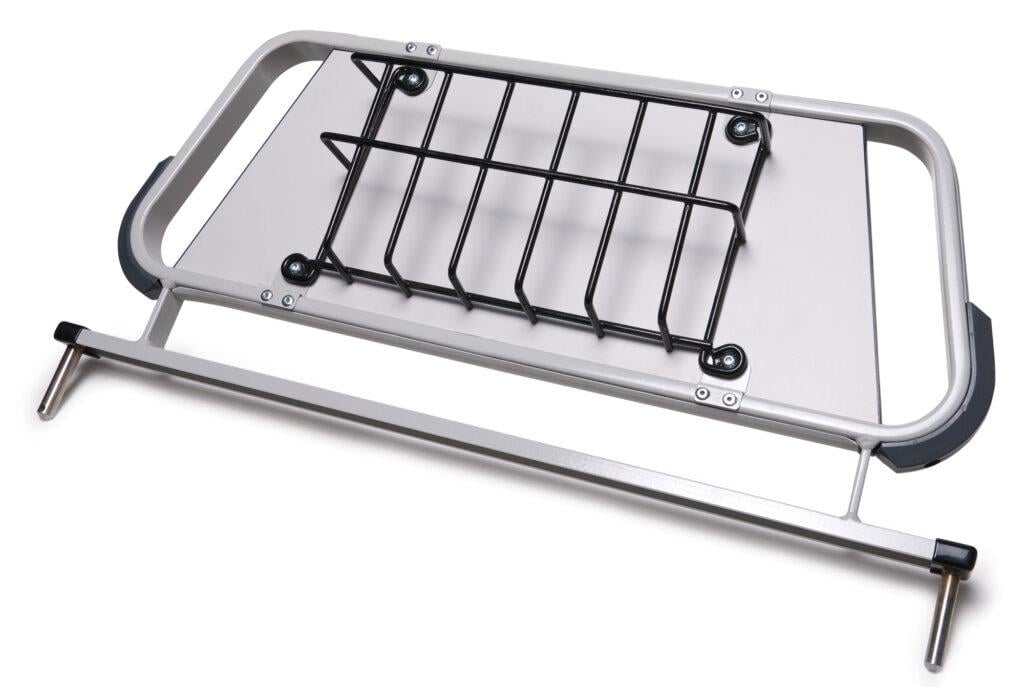

    • Wide (4462HMCST) – H0CRW6B00

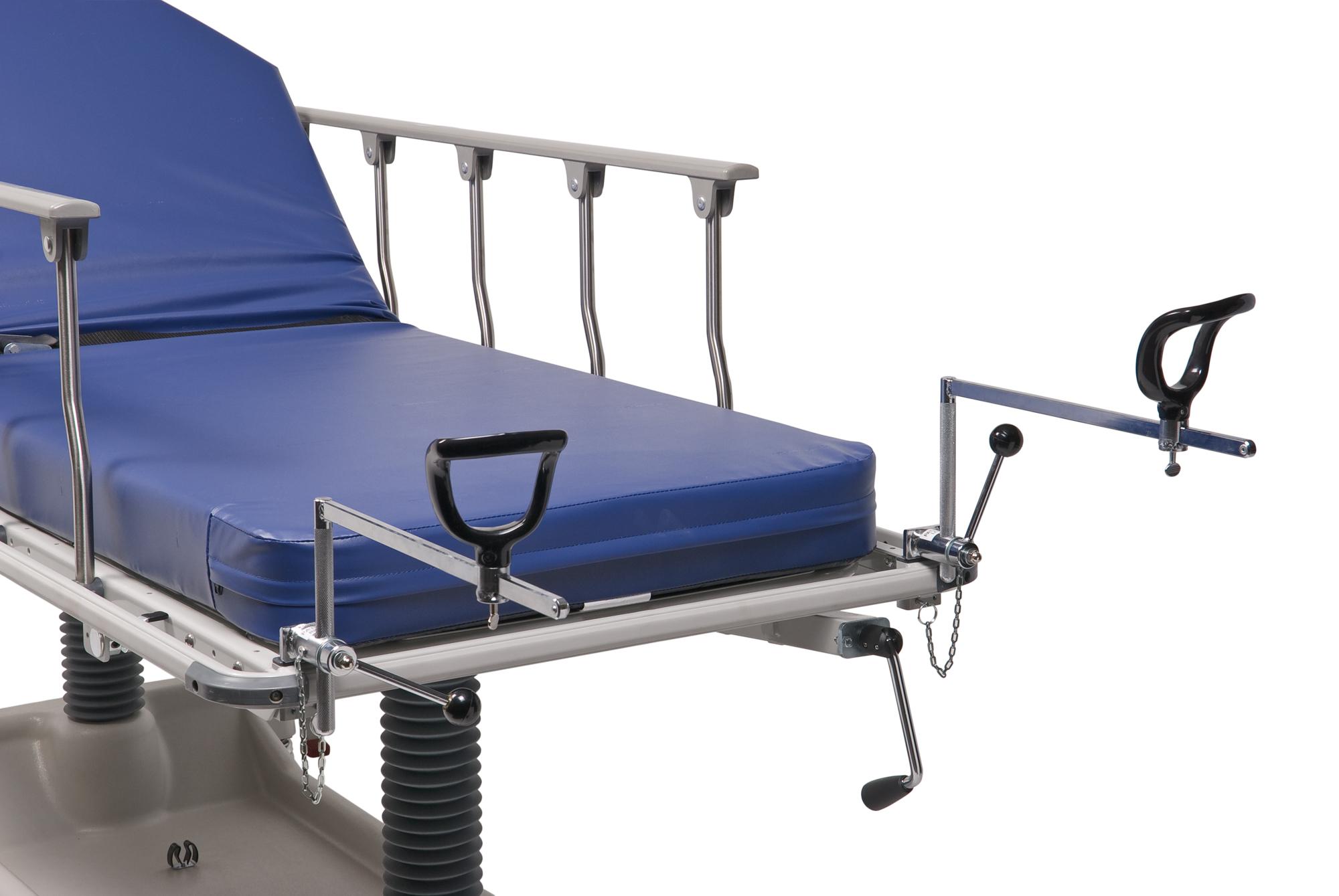

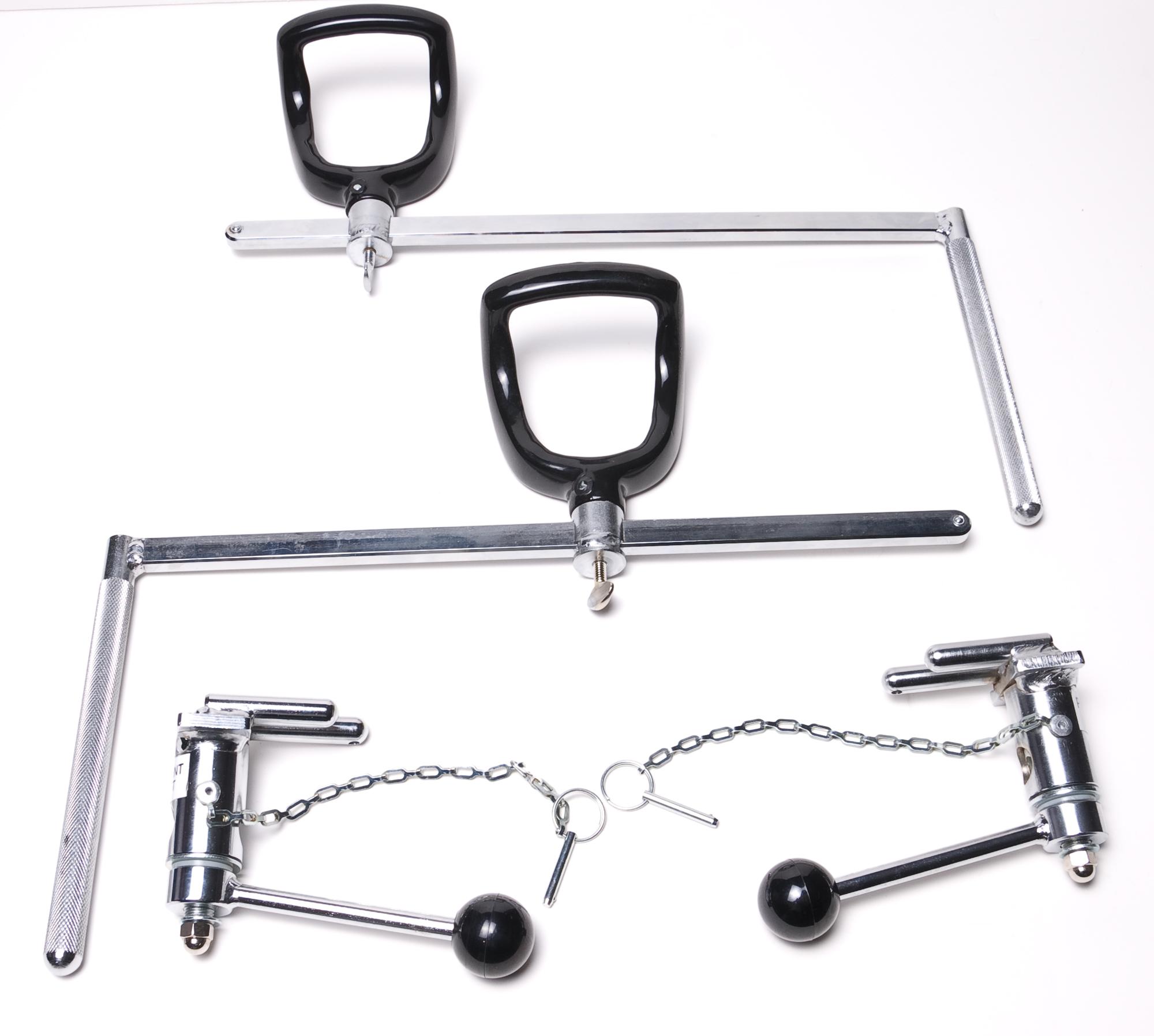

  • H00N16A00 Heel Stirrups w/ Mounting Adapter
  • H000E1700 Fixed Height IV Pole, 42 in (107 cm)
  • H000018 Telescoping IV Pole 27 in – 54 in (68 cm -137 cm)
  • H06589700 Mobile IV Stand Attachment
  • Monitor Shelf
    • Standard Width (462EMCST & 462GMCST) – H000N4500
    • Wide (462HMCST) – H00WN4500

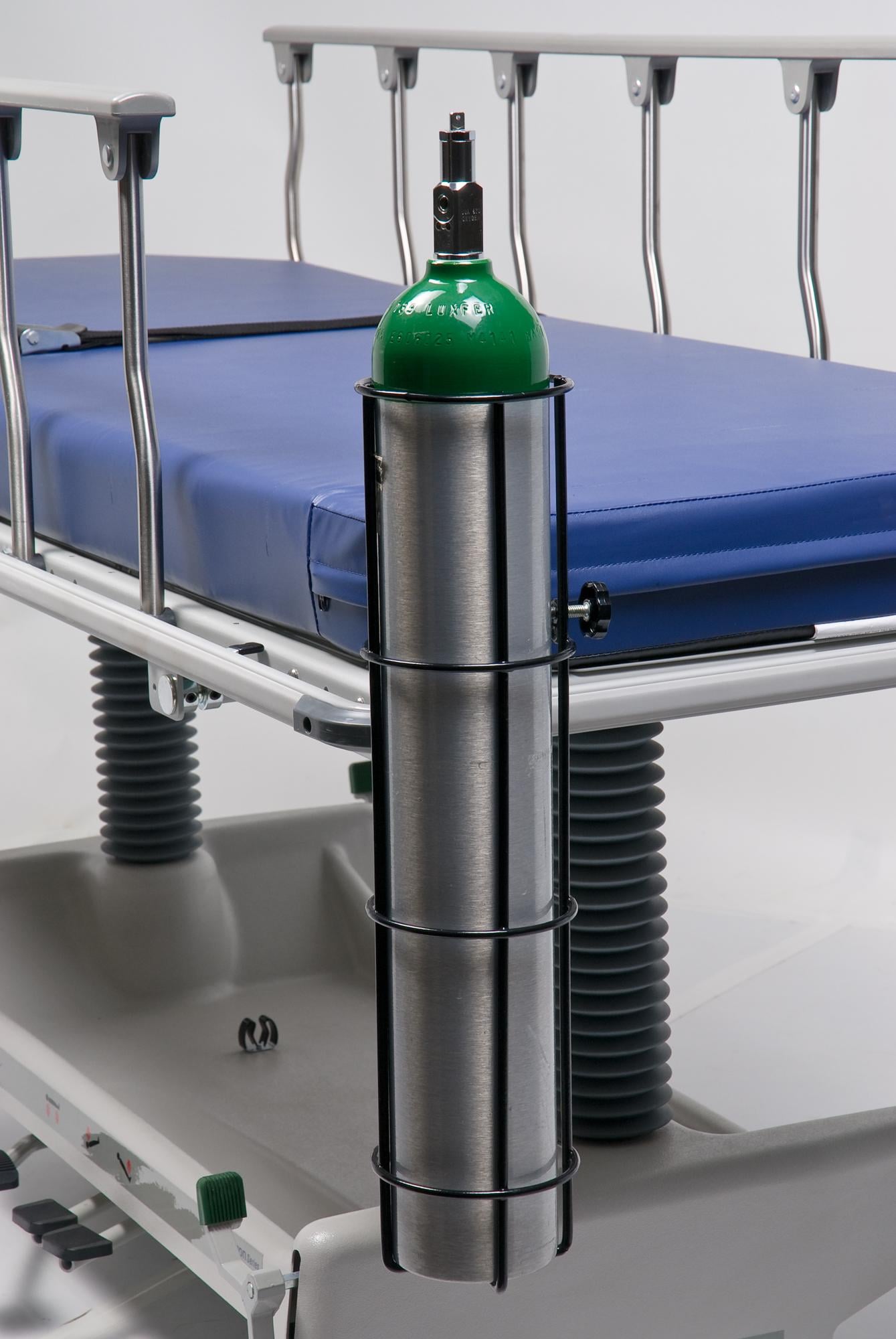

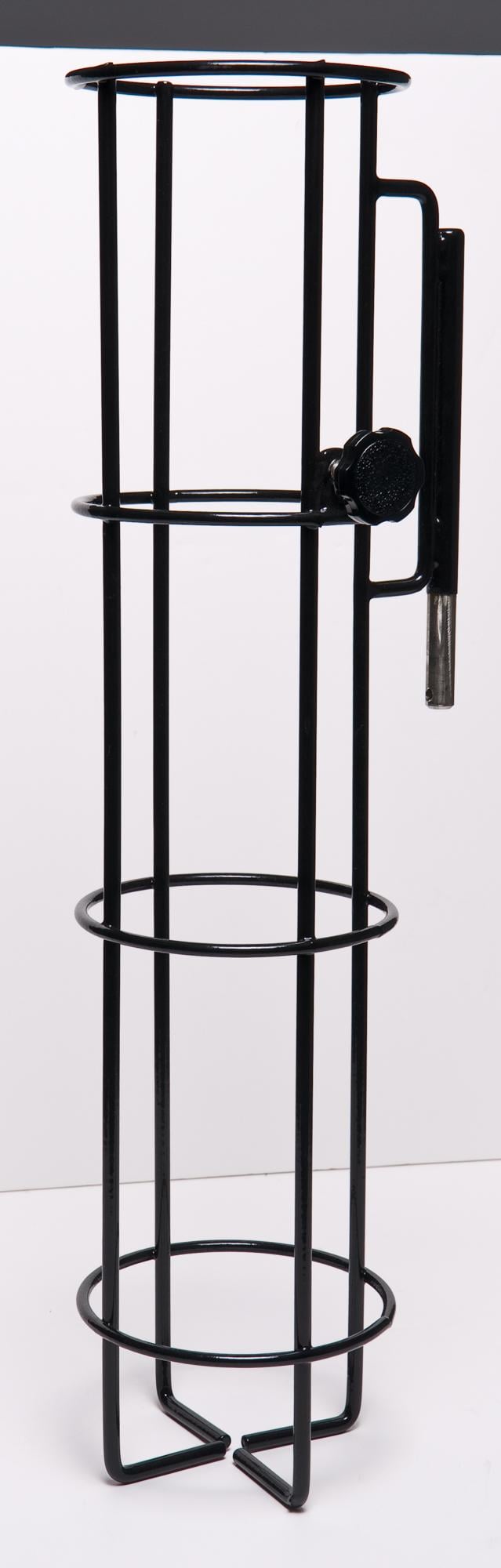

  • H12845000 Vertical Oxygen Tank Holder Assembly

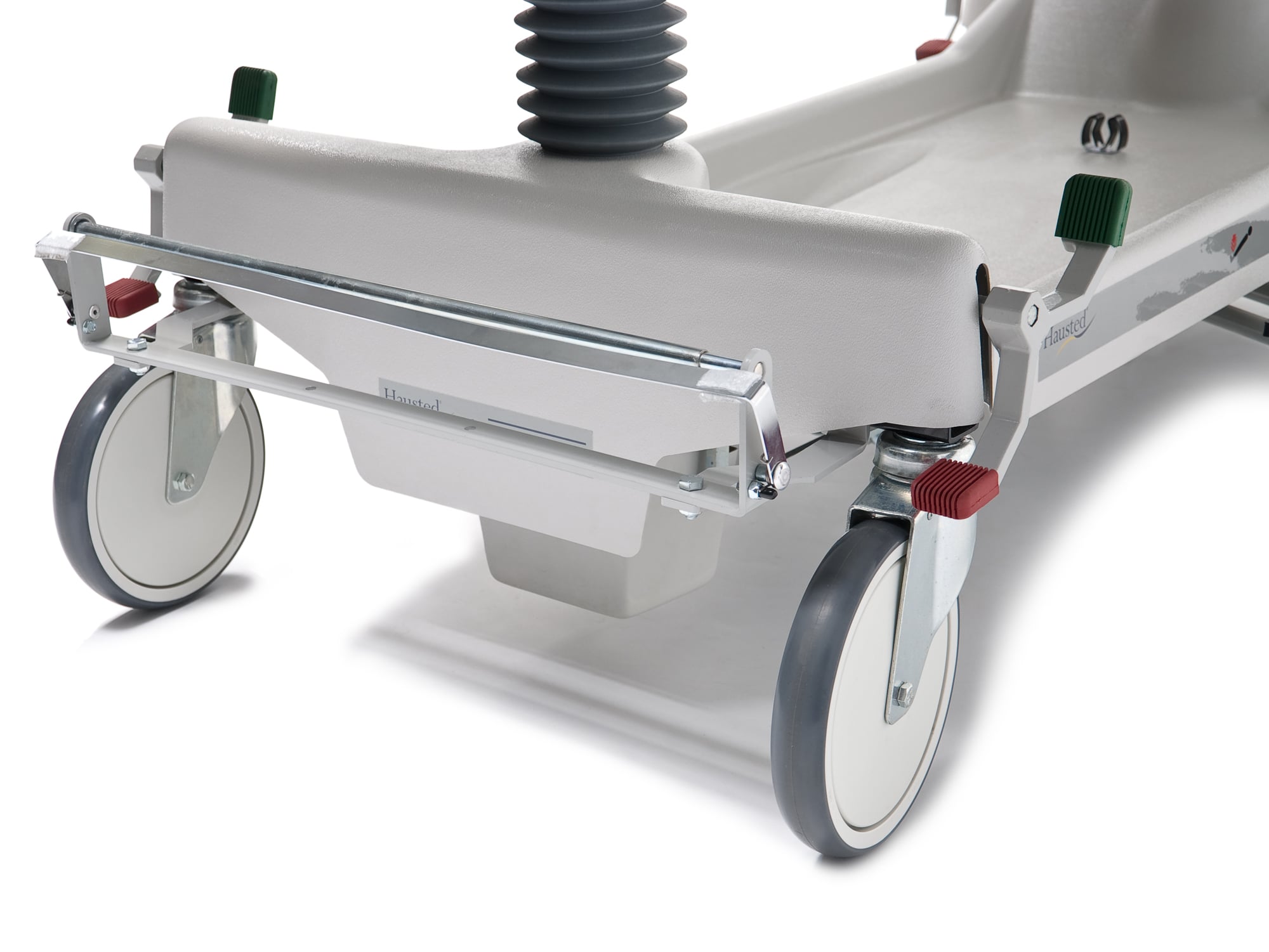

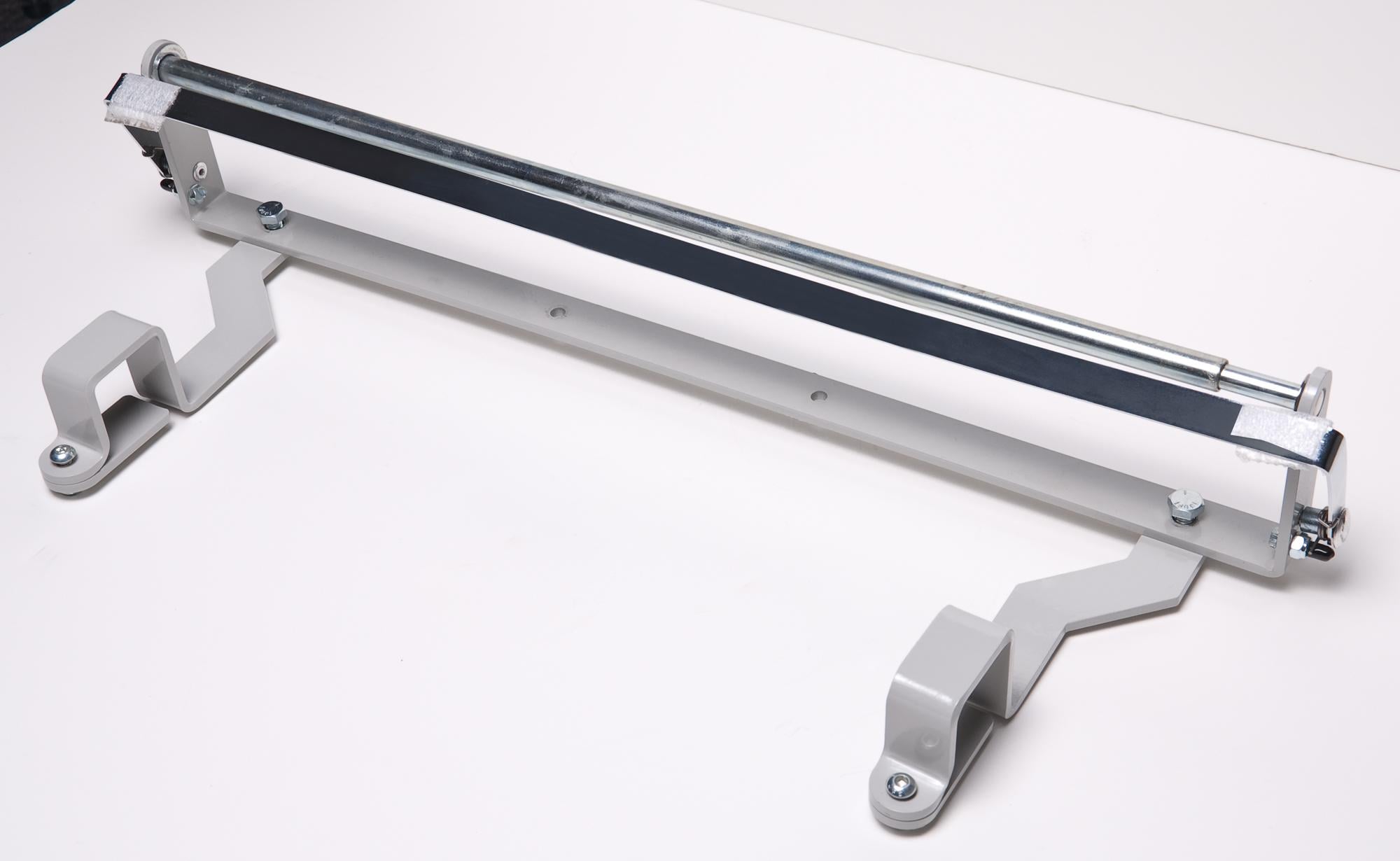

  • H06925700 Paper Roll Holder

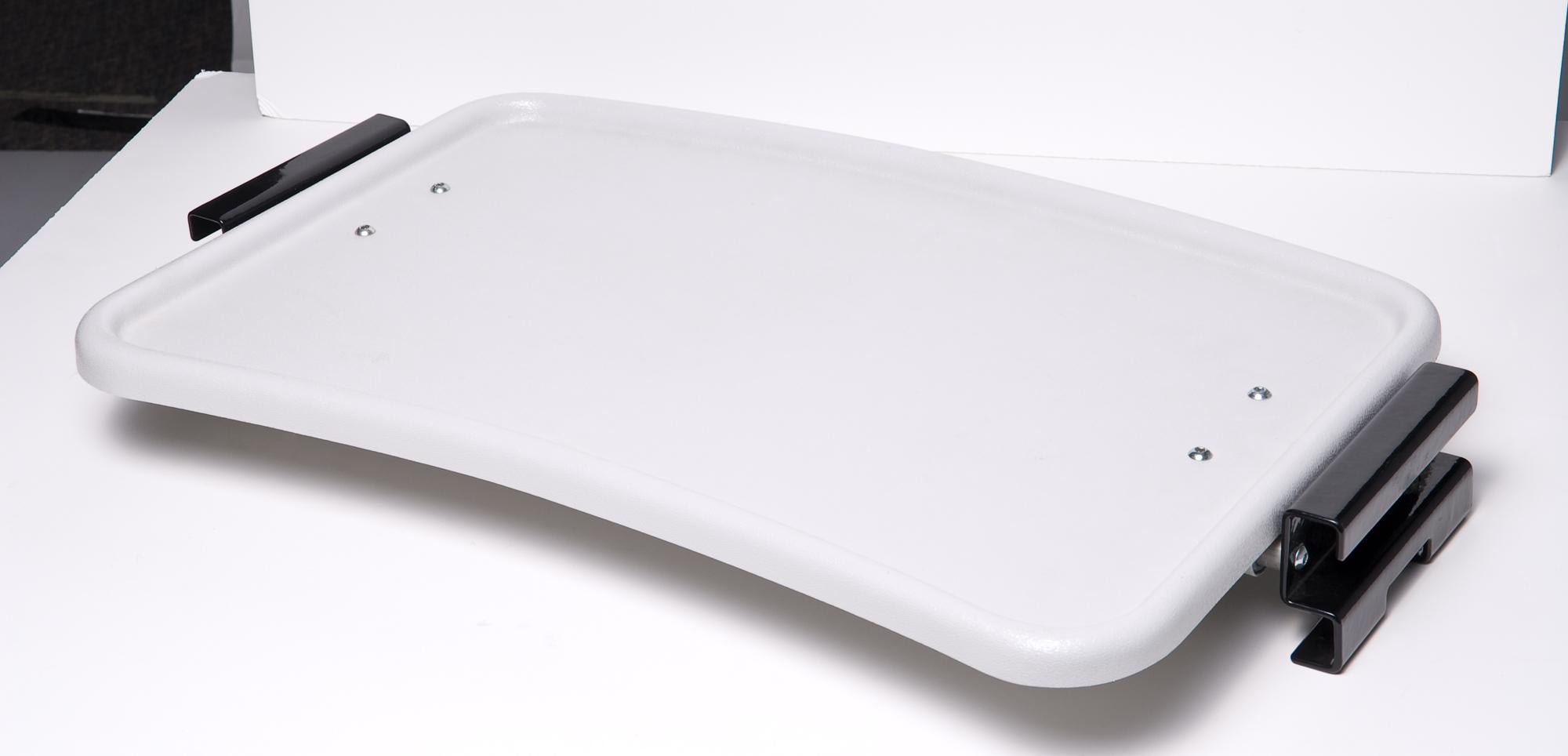

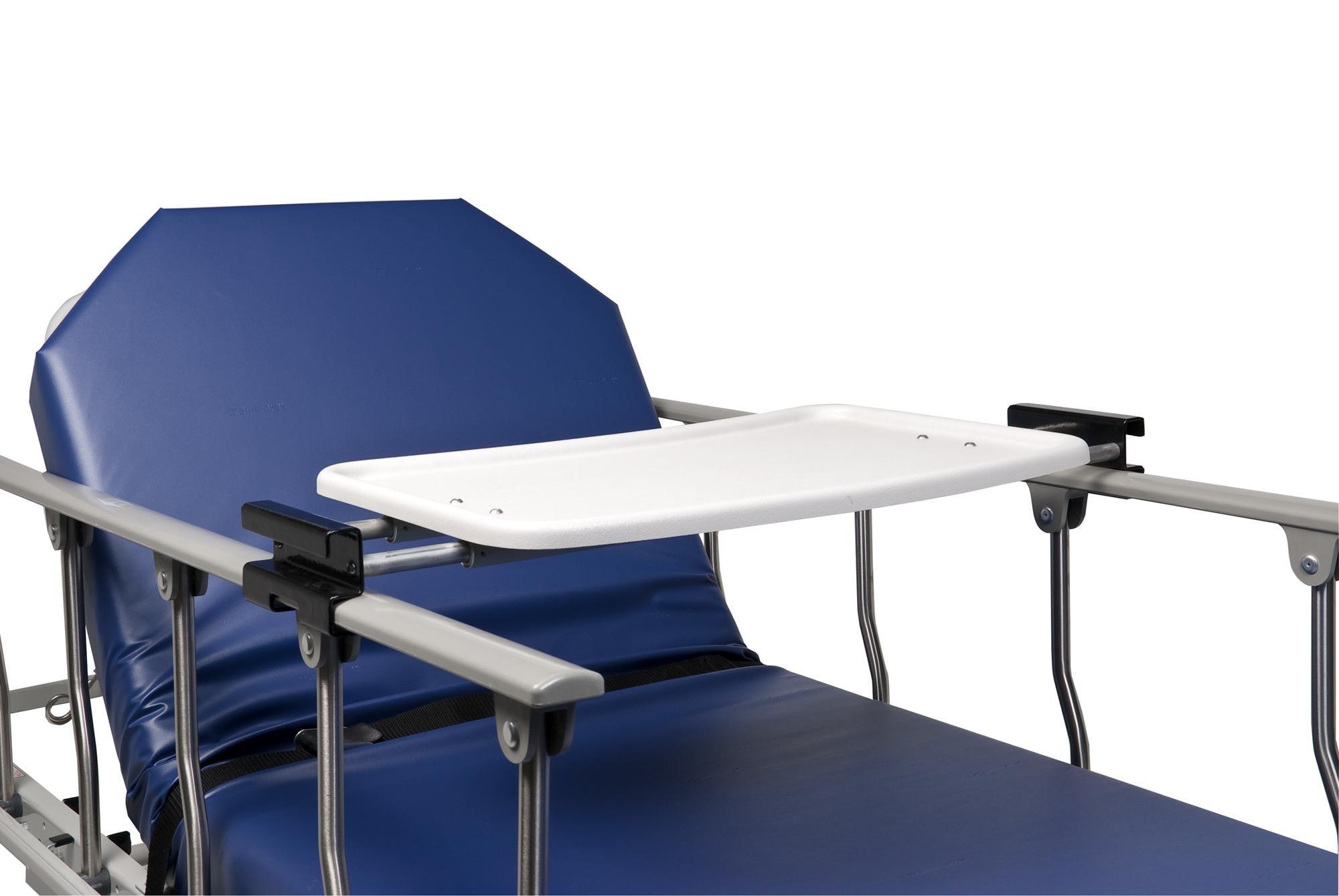

  • H06536600 Universal Patient Tray

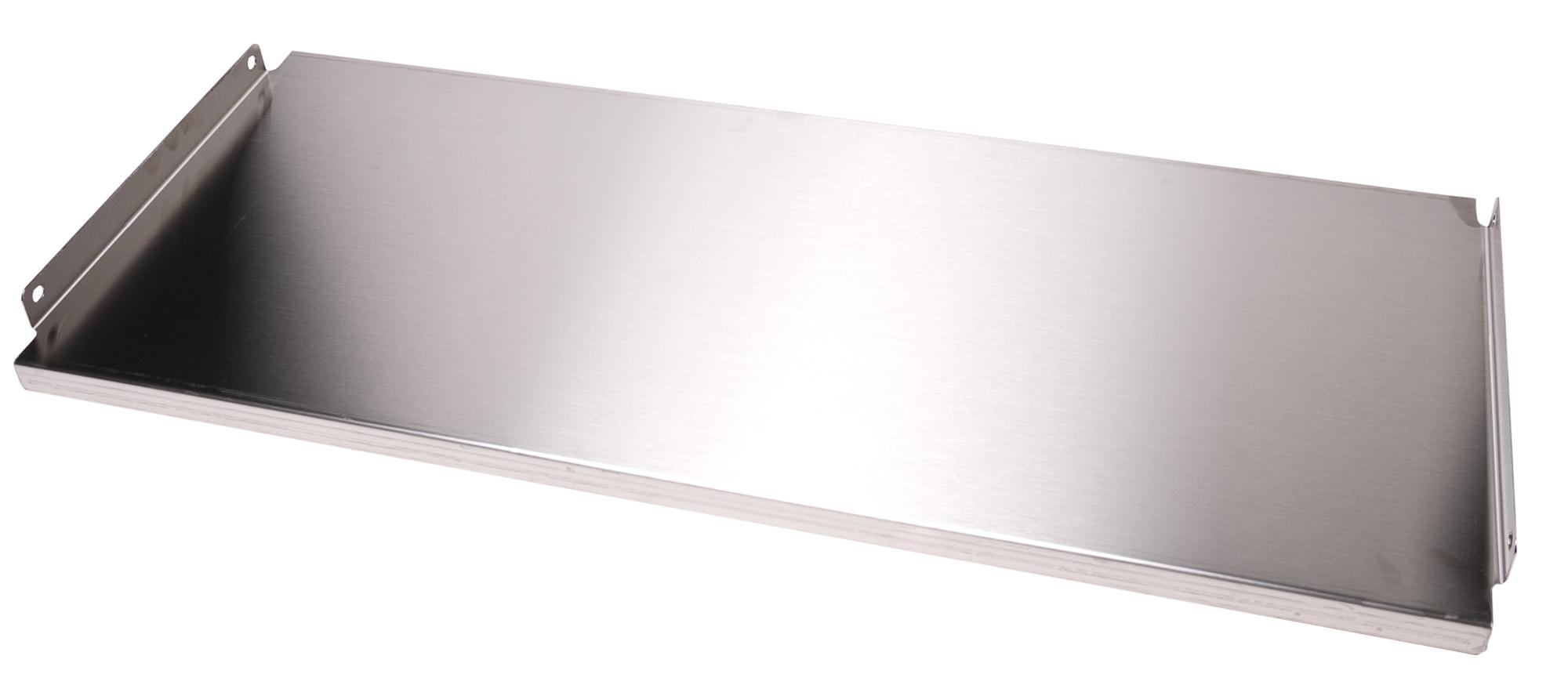

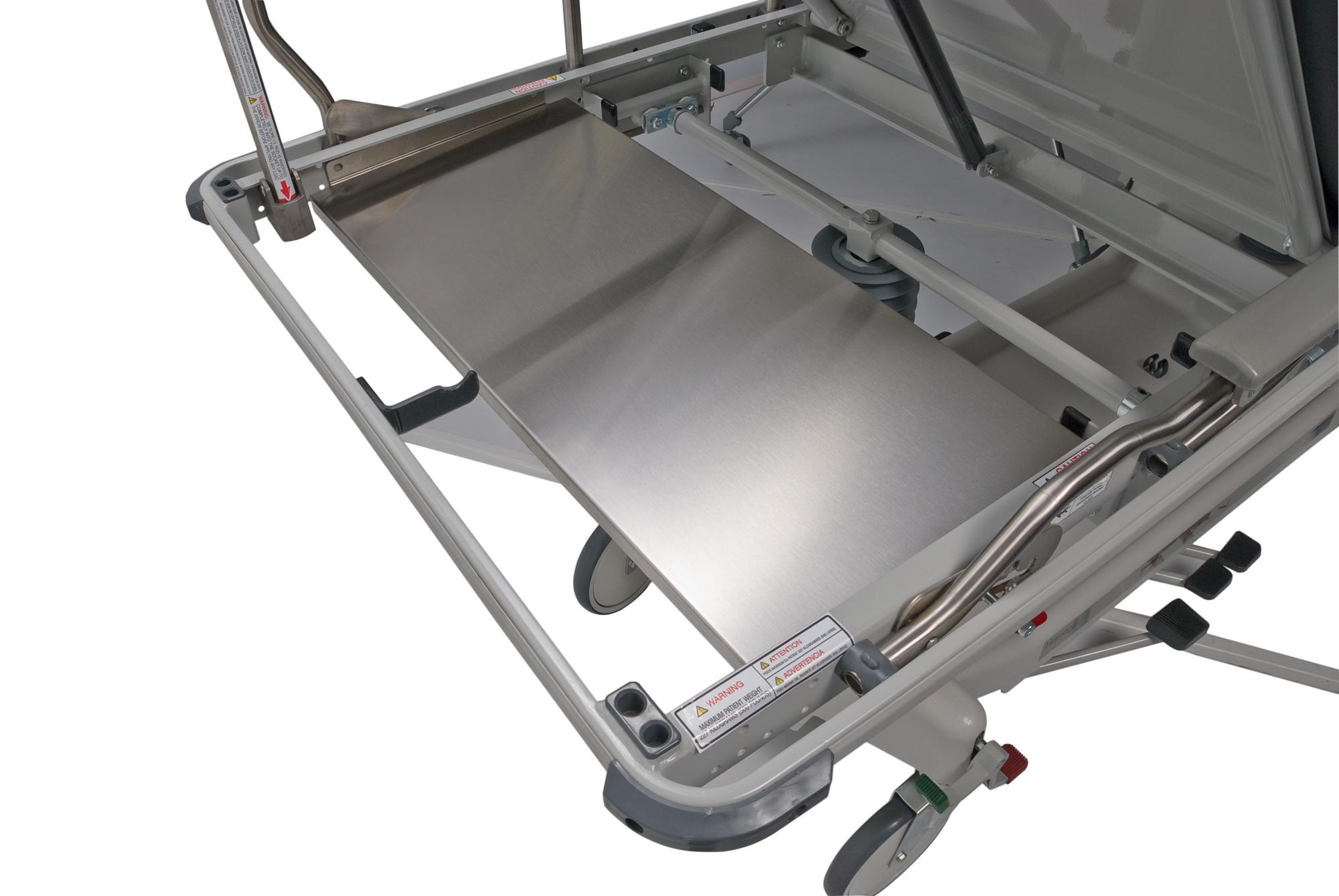

  • Under Fowler Utility Tray
    • Standard Width (462EMCST & 462GMCST)– H13317000
    • Wide (462HMCST) – H13317100
  • Push Handle Assembly – H07565600
  • Retracto Rails – H076336
  • Rail Pad Cover (6 Leg Retracto Rail) – H07562600
  • Safety Straps with Buckle – H00001200
