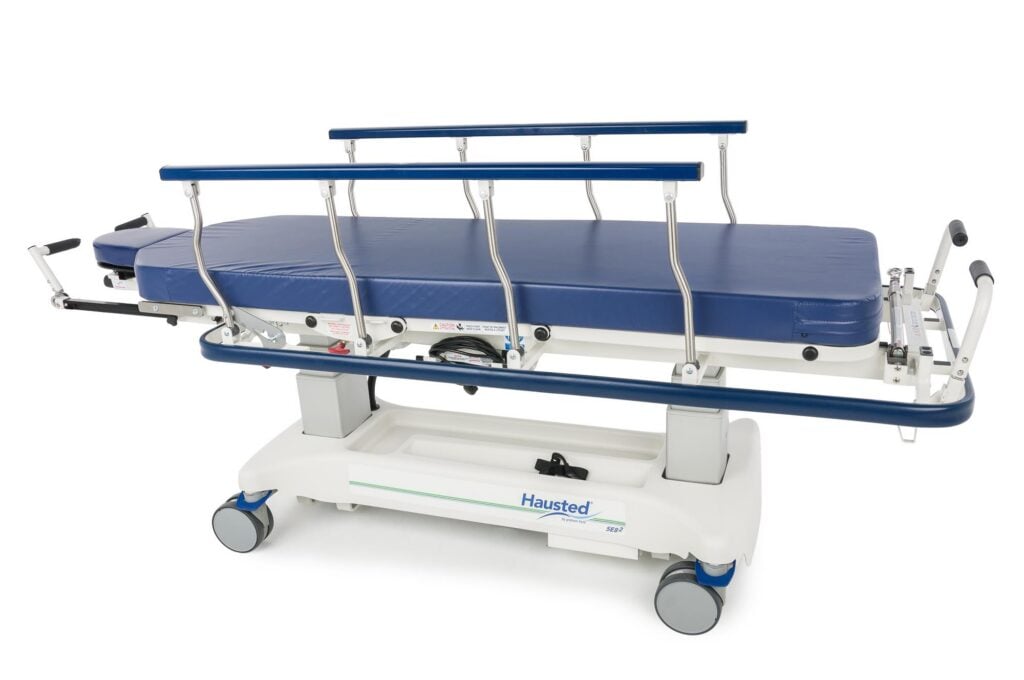

5E82 Electric Surgi-Stretcher Series

The Surgi-Stretcher Series is designed as a mobile surgical platform for EYE/ENT and plastic surgery procedures.

5E82EYEST – standard width
5E82EYXST – wide width

Versatility:

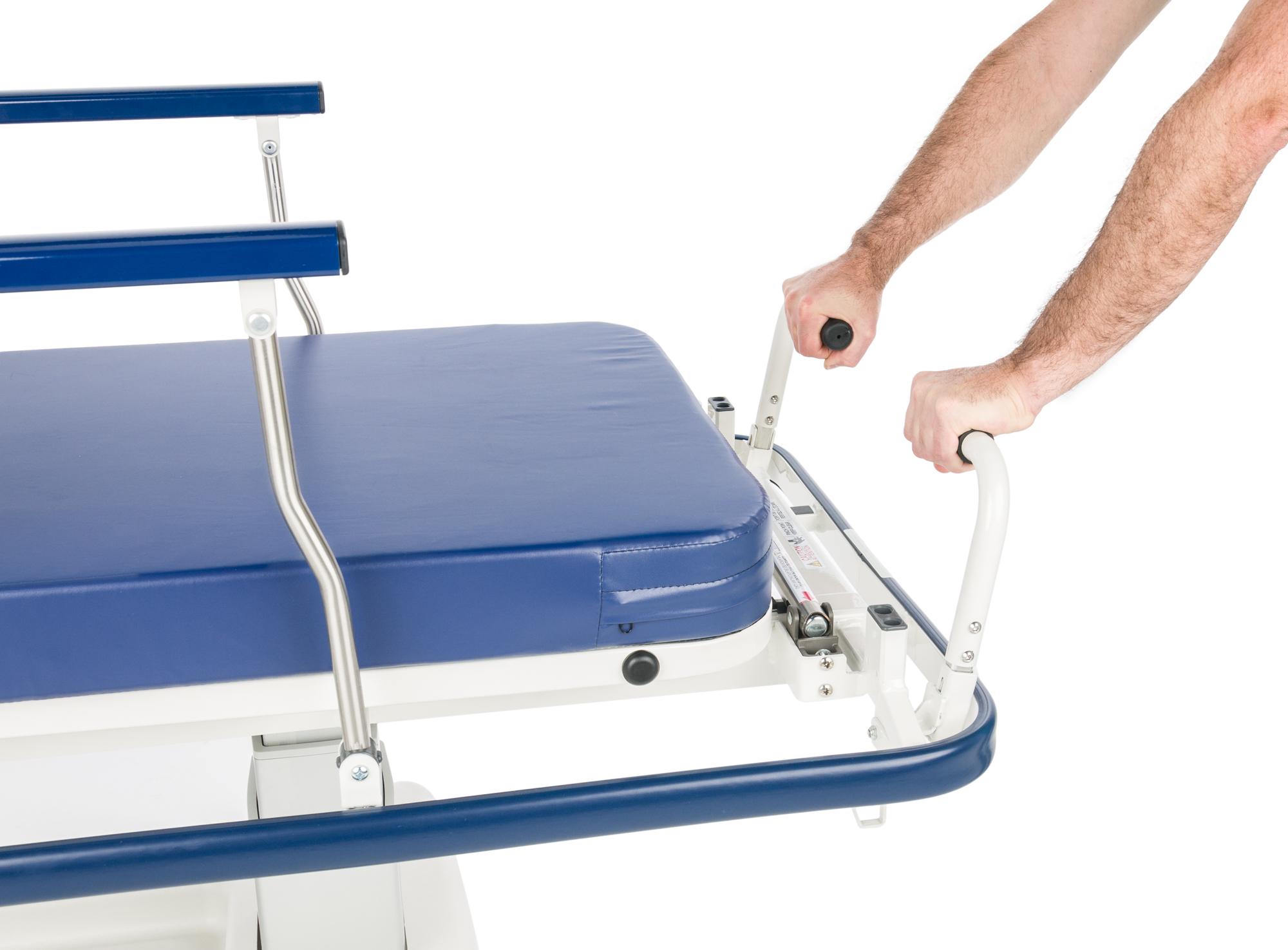

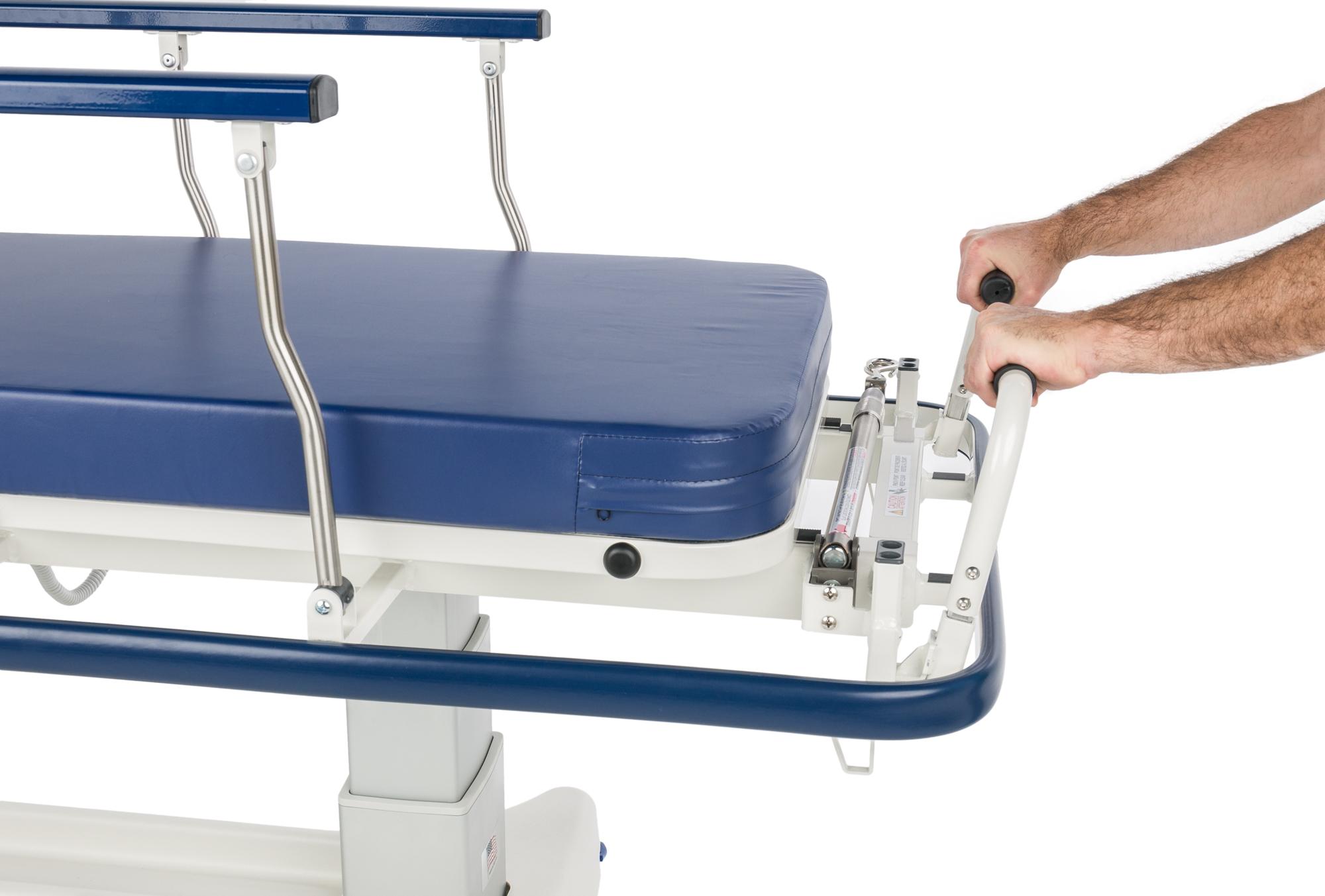

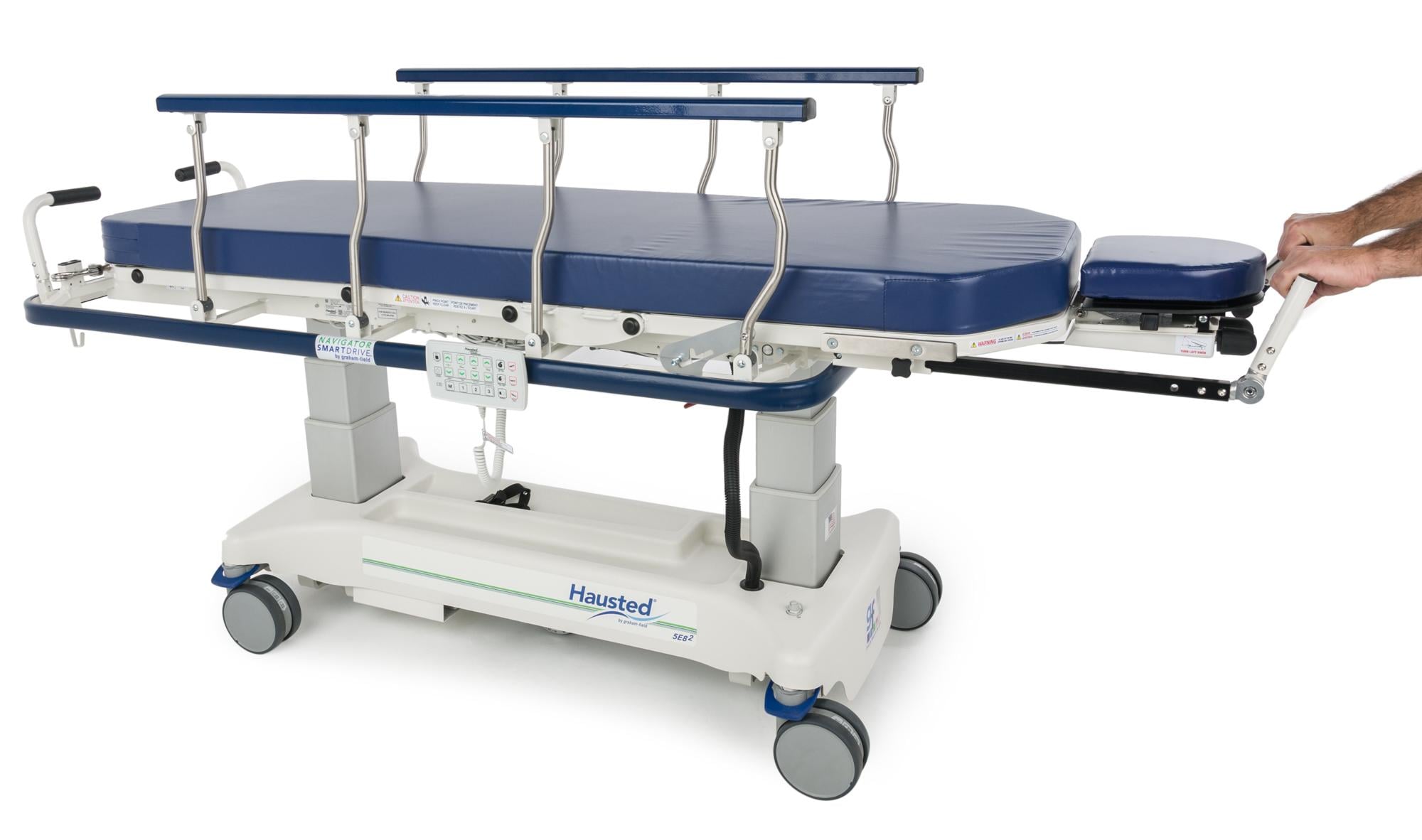

• Articulating head piece with dual operating knobs allow infinite adjustability and precise microscopic movement of the head section
• Designed with a low-profile head piece allowing site access for both superior (over brow) and lateral (side approach) procedures
• Battery powered stretcher with easy to use interactive hand pendant.
• Leg flex operated controls are available for height adjustment, backrest, leg section, and Trendelenburg/Reverse Trendelenburg

Standard Features:

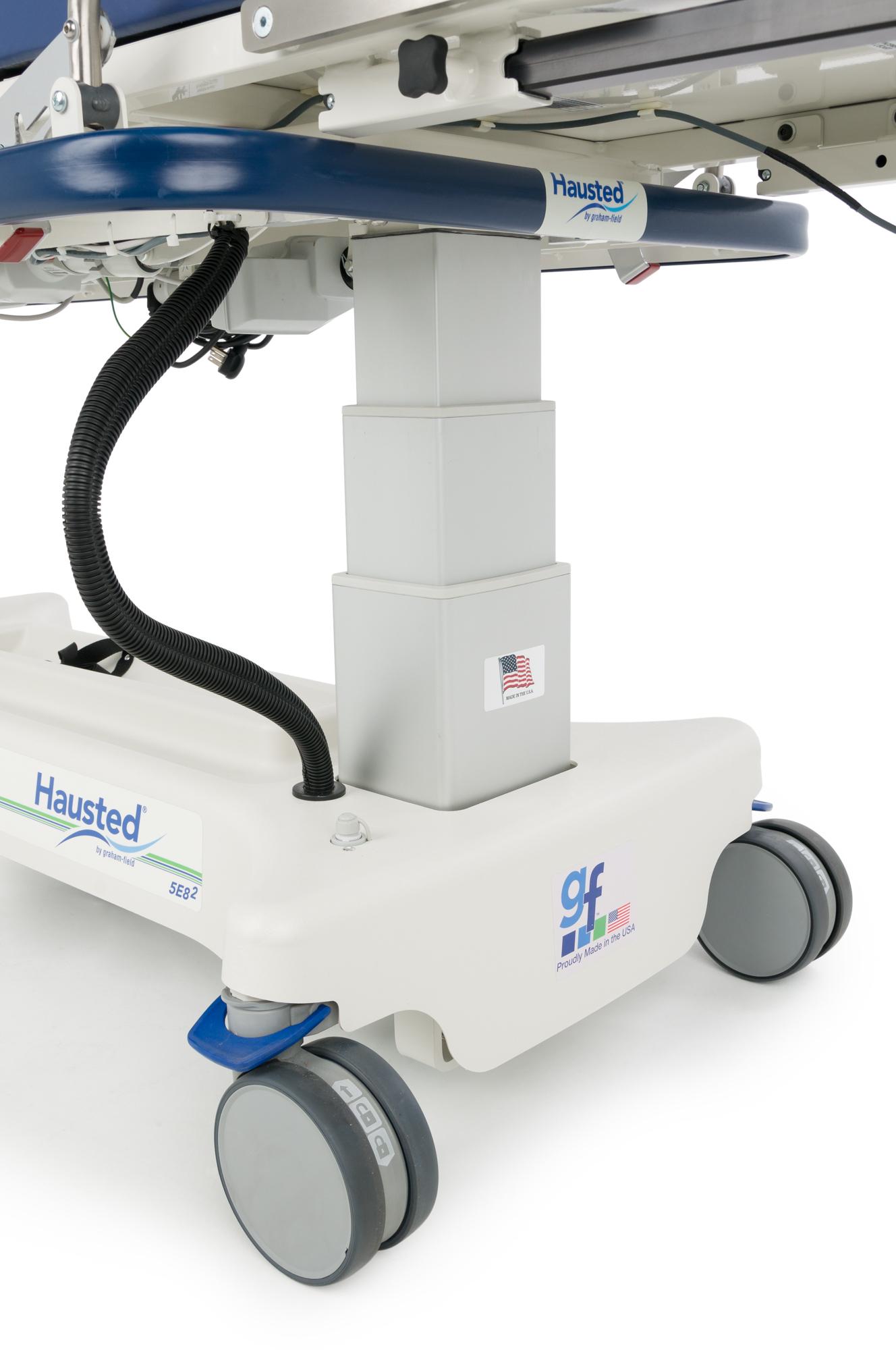

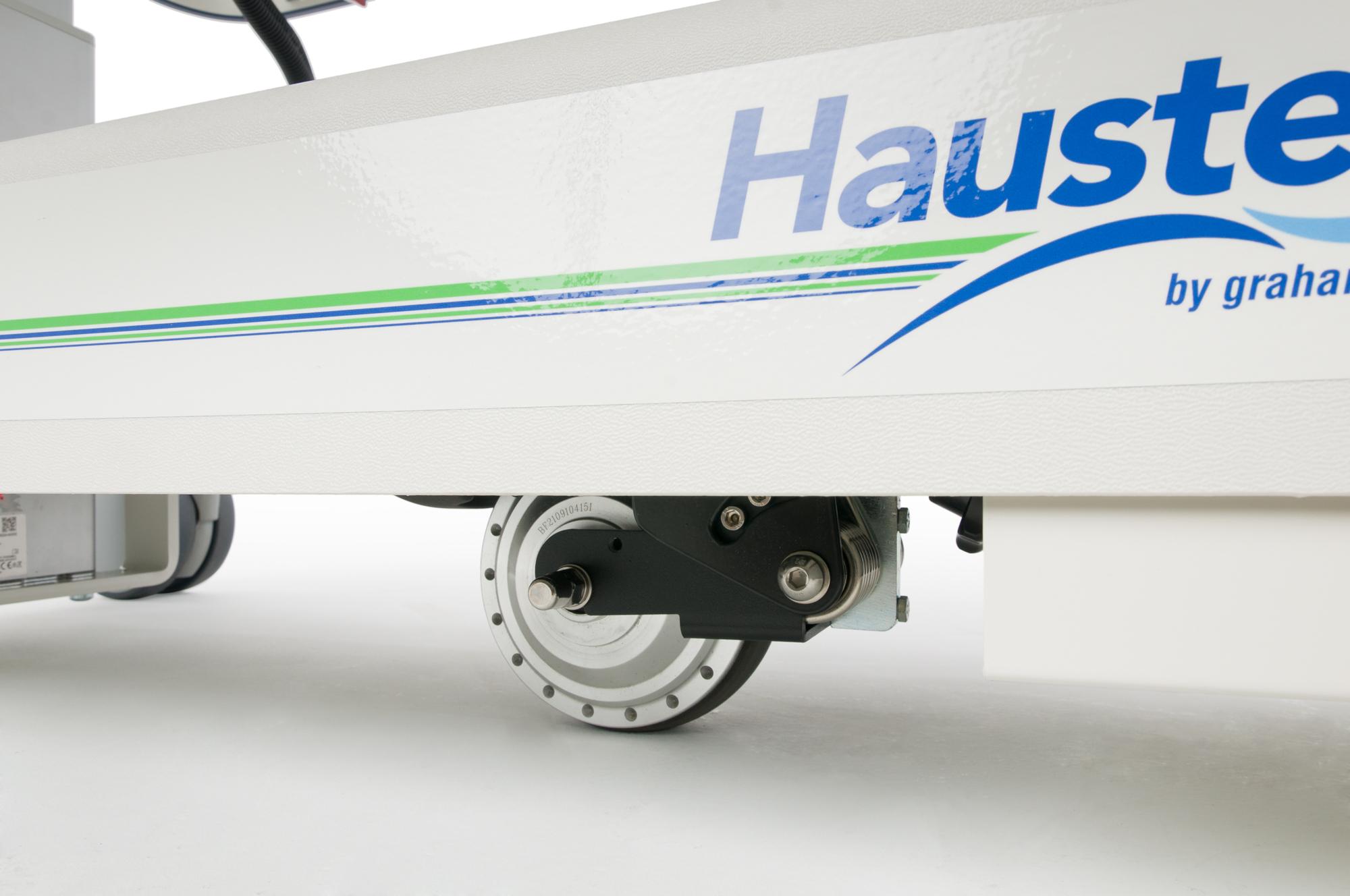

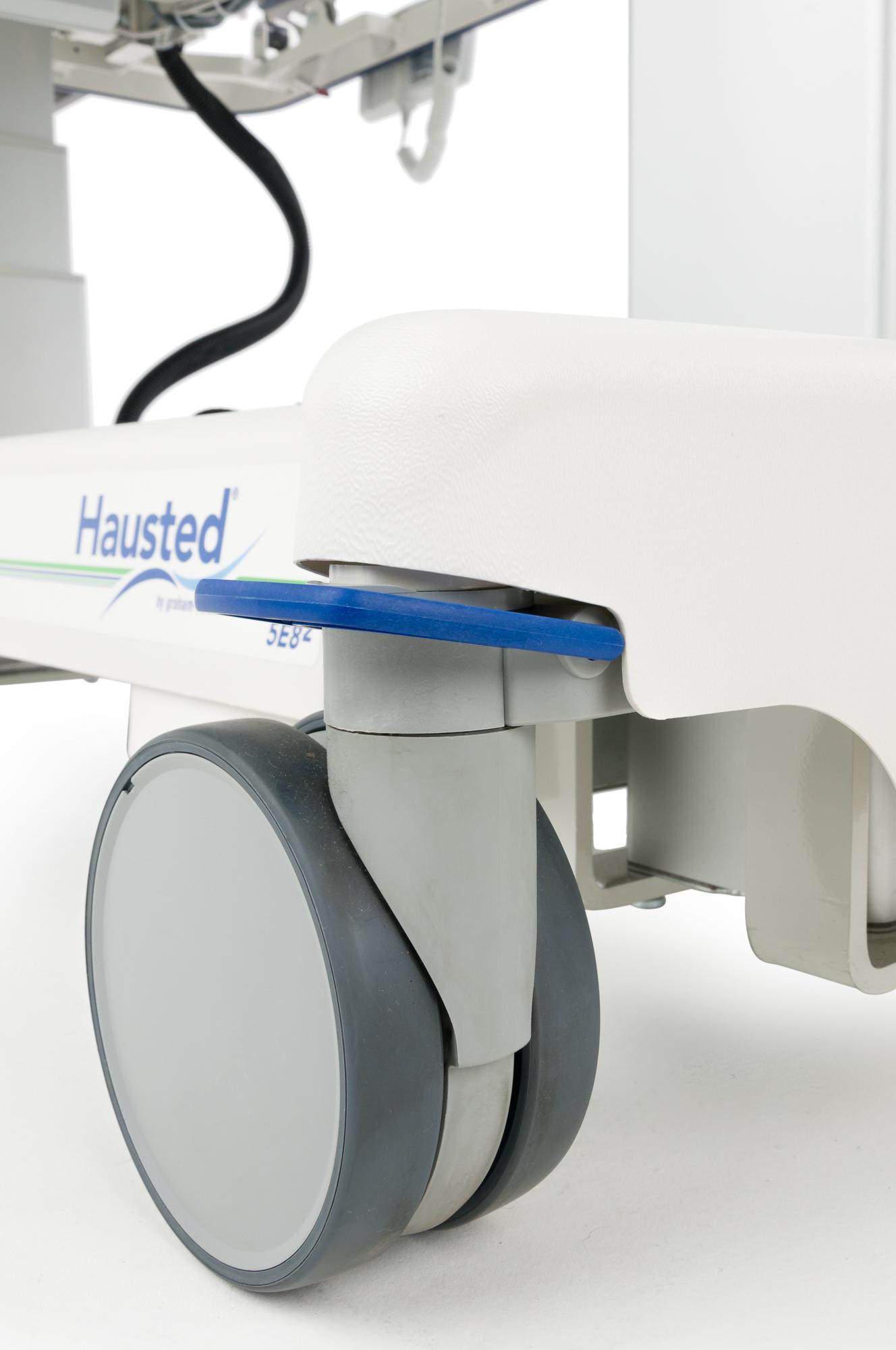

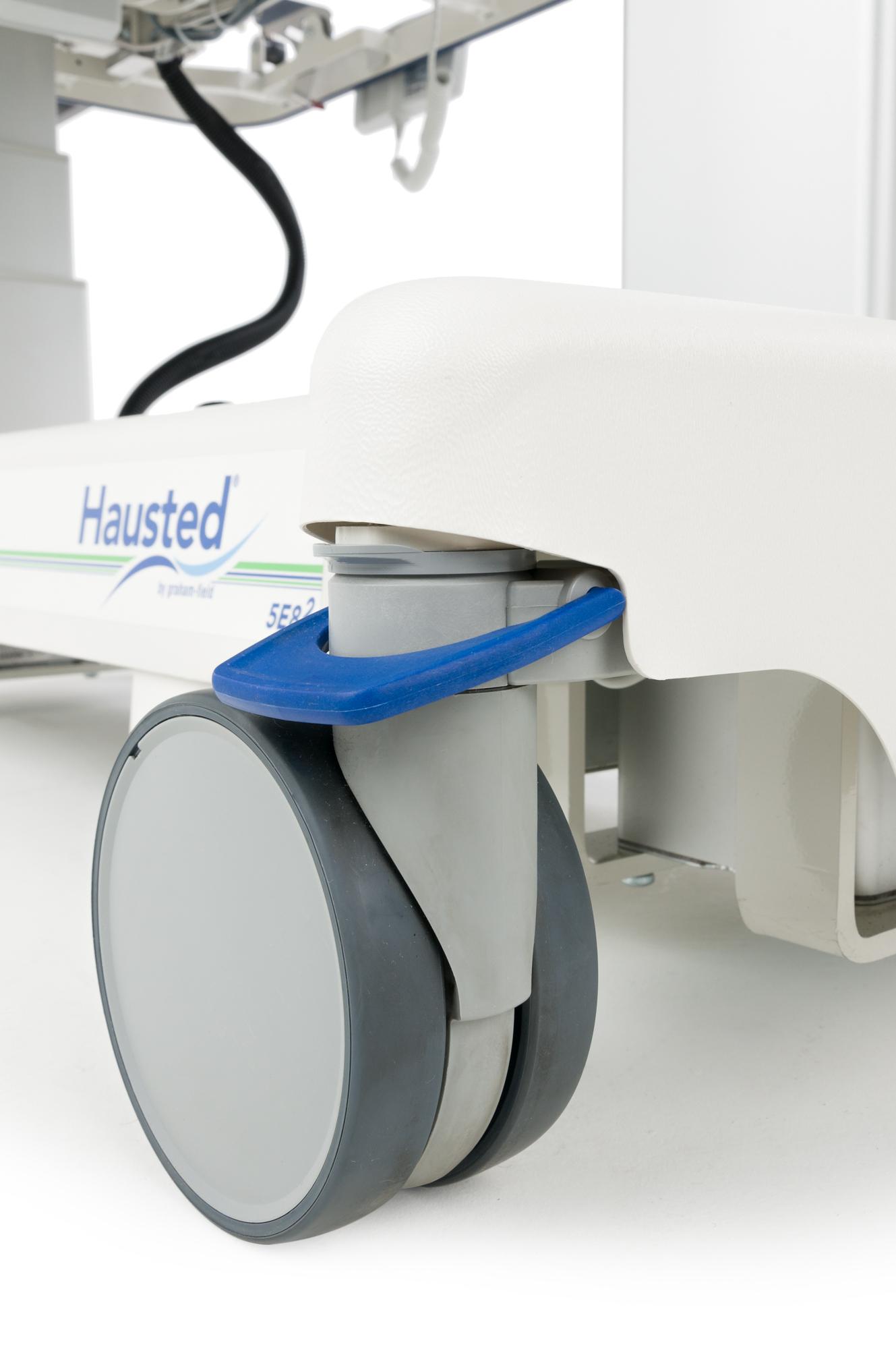

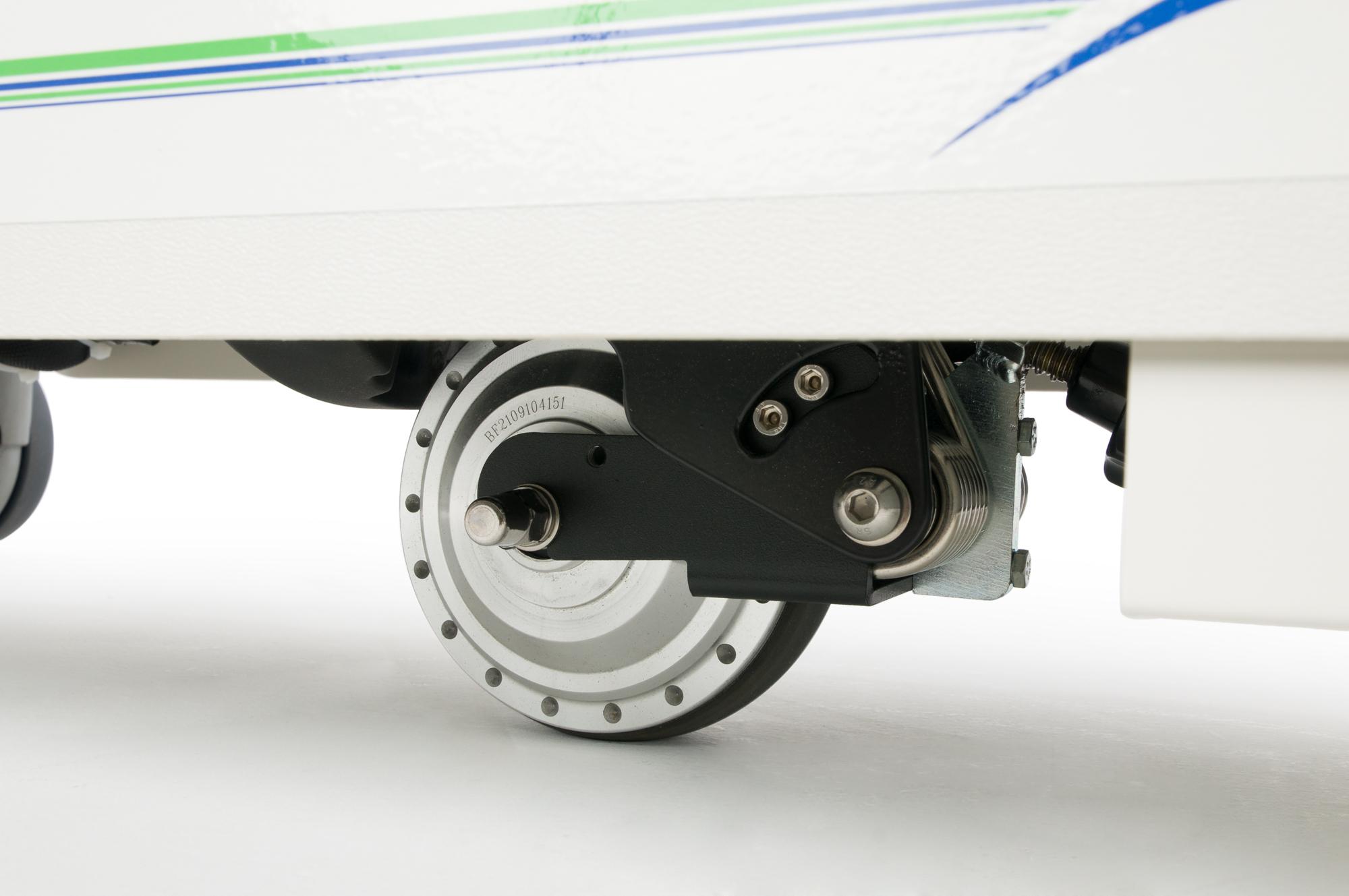

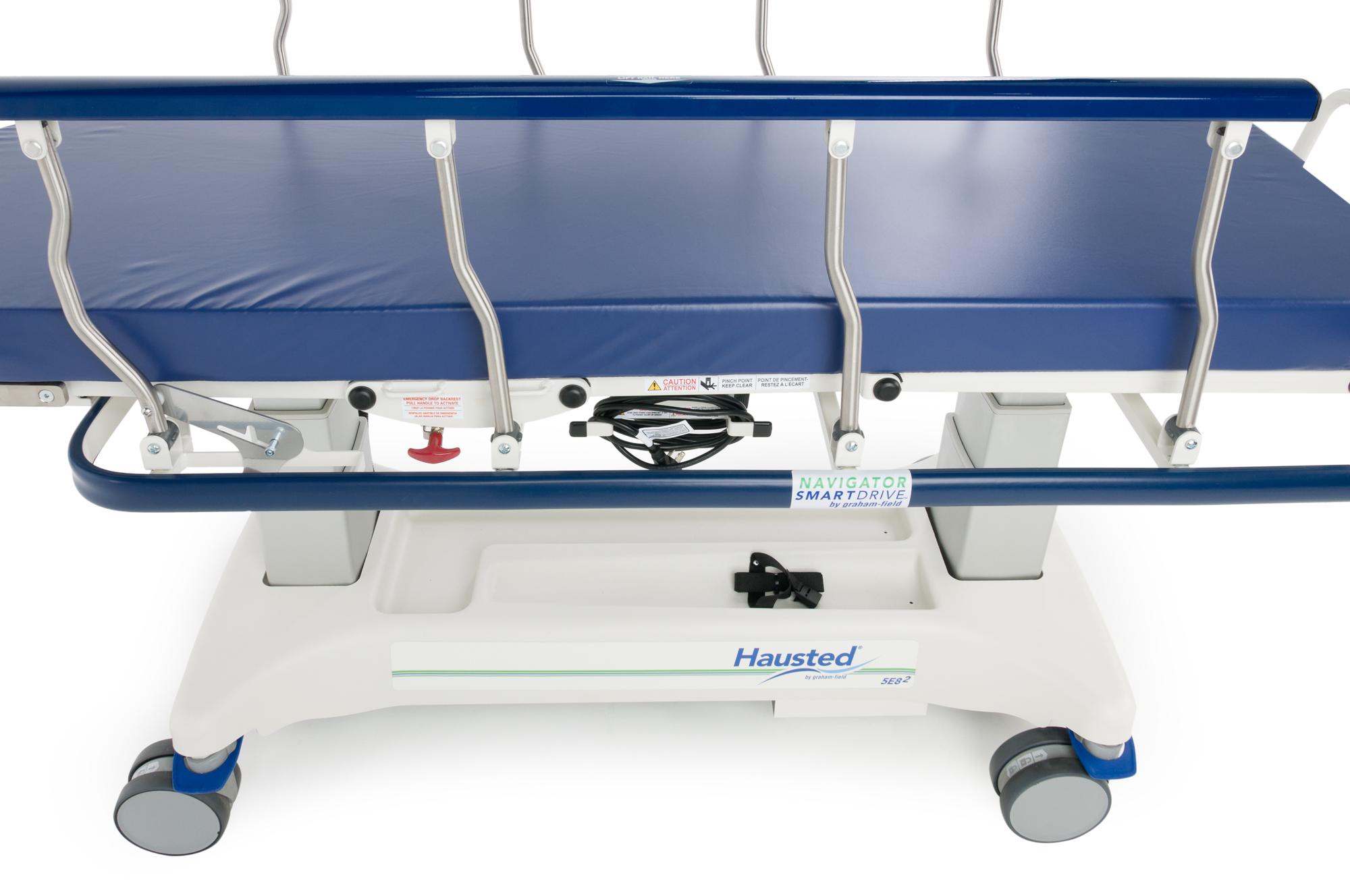

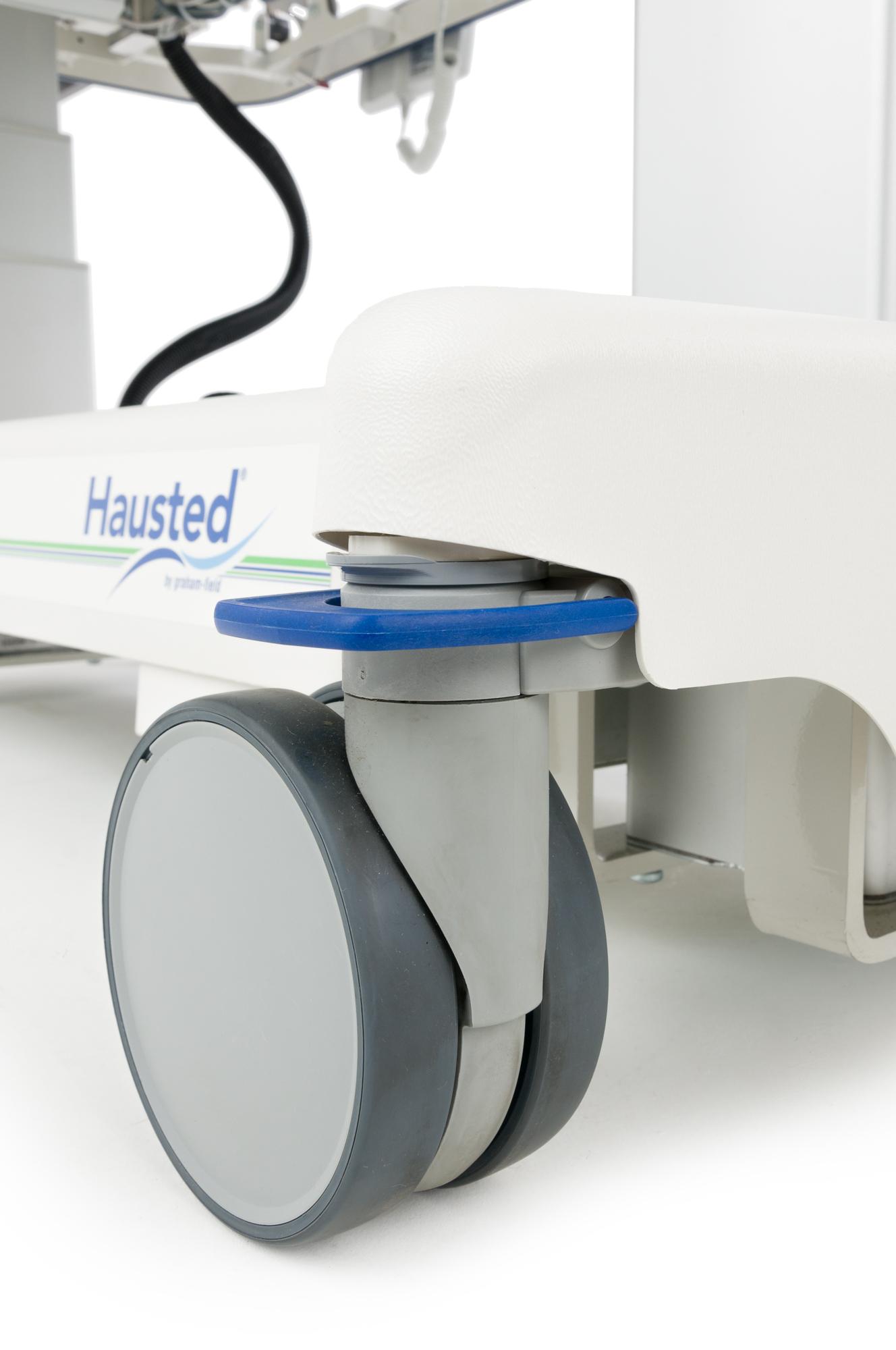

• Four wheel brake and steer with electric casters system
• Base cover with built in O2 tank holder and ample storage space
• 3-Stage Telescoping I.V. pole [permanently mounted at foot]

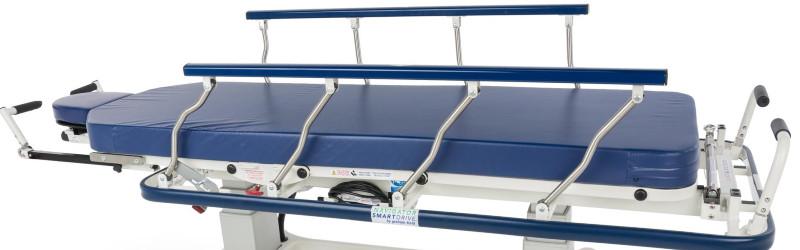

• Stainless steel Retracto® Side Rails with rail caps

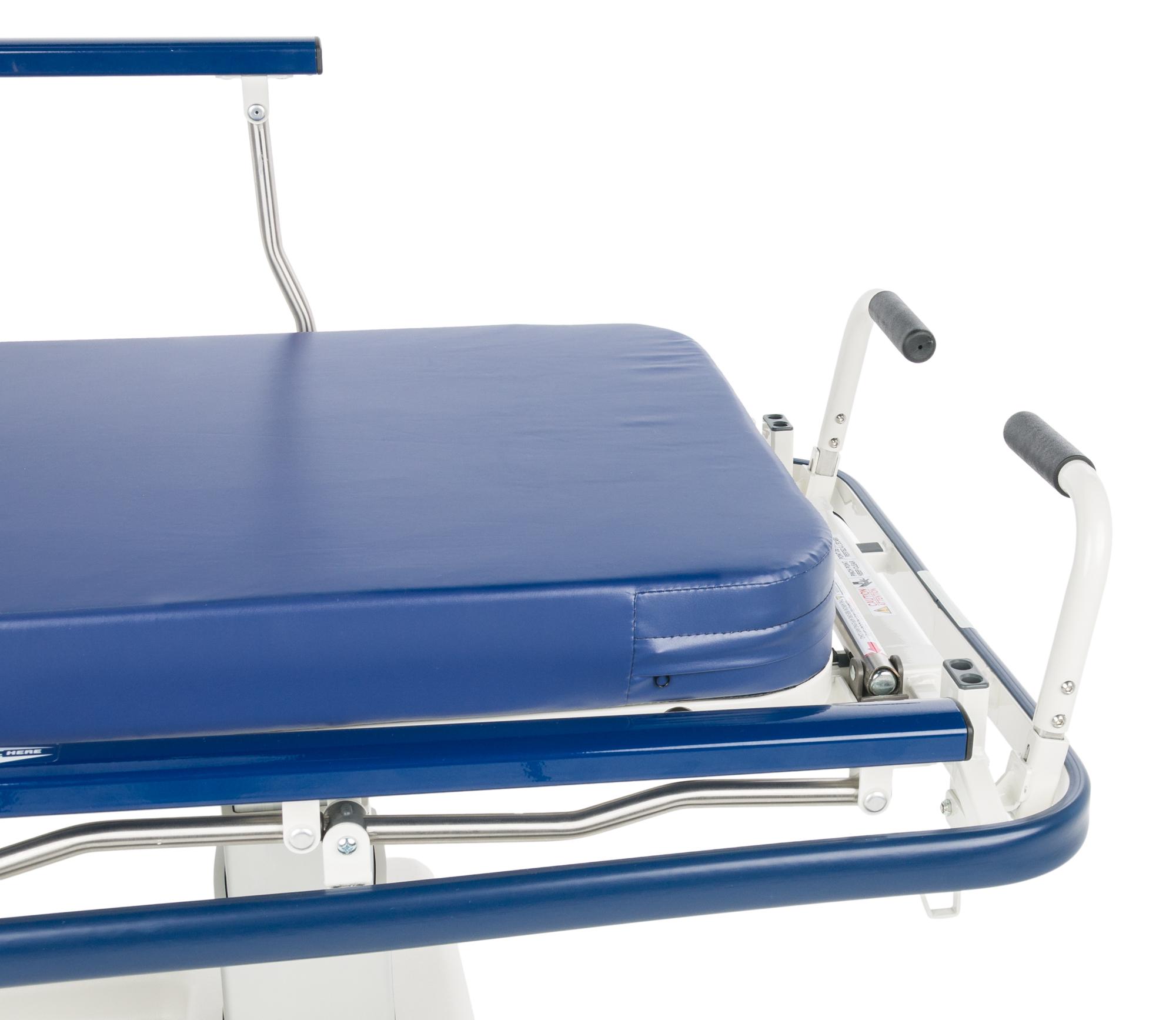

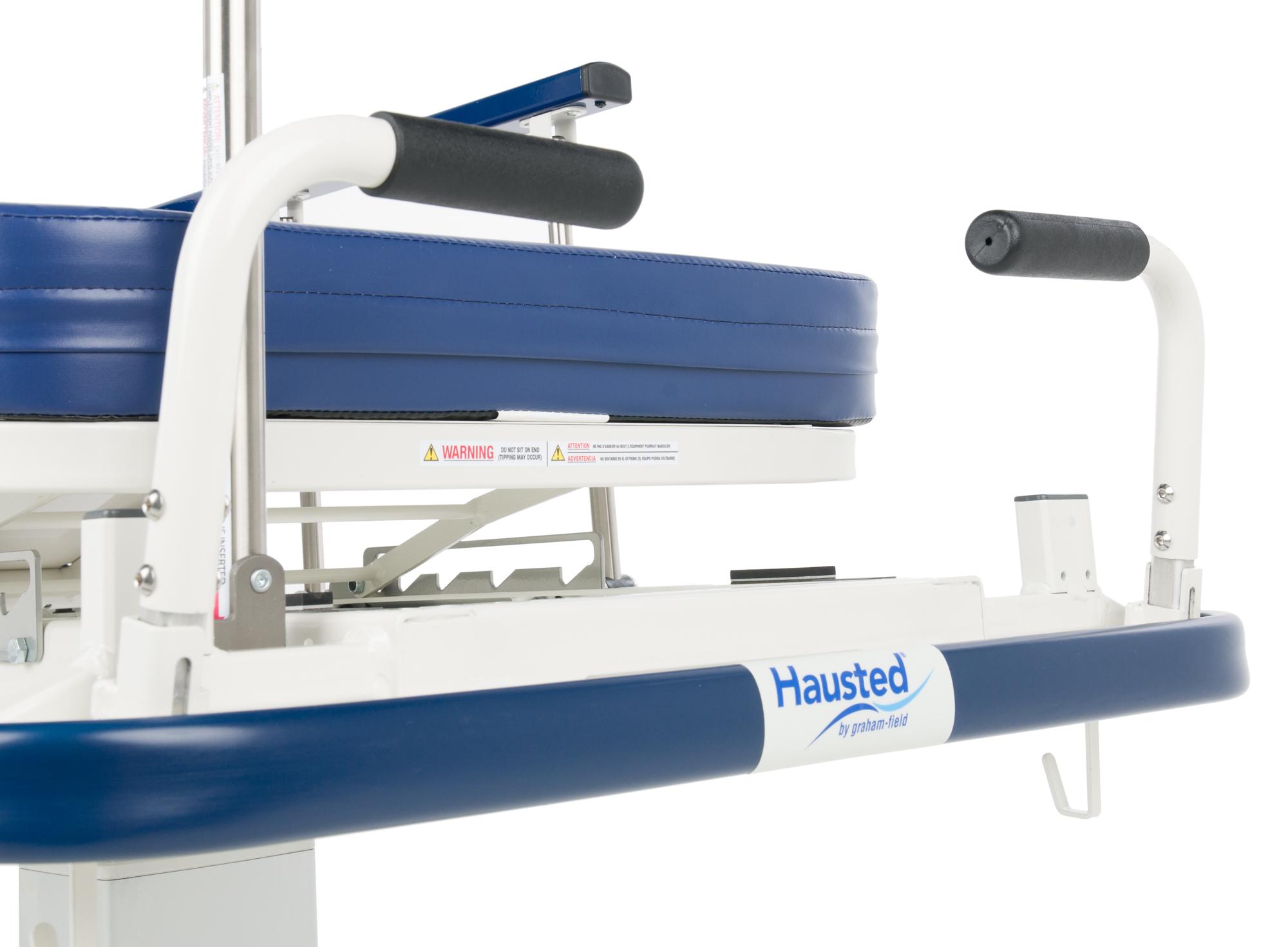

• Low profile articulating head piece with dual operating control knobs
• Comfort mattress and head pad

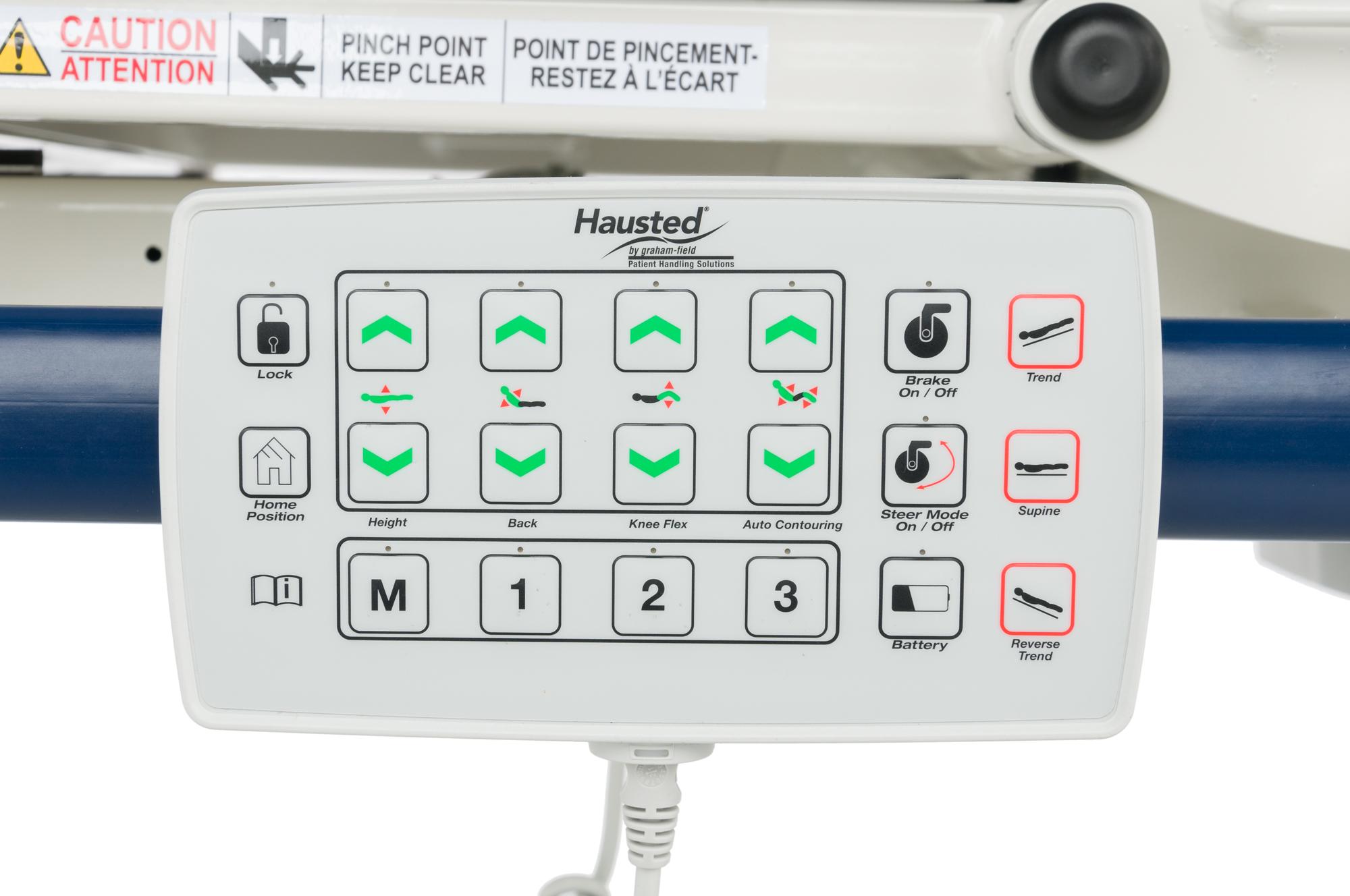

• Hand held controls:
  • Height Adjustment
  • Trendelenburg/Reverse Trendelenburg
  • Backrest Adjustment
  • Knee Flex Adjustment
  • Auto Contouring Adjustment

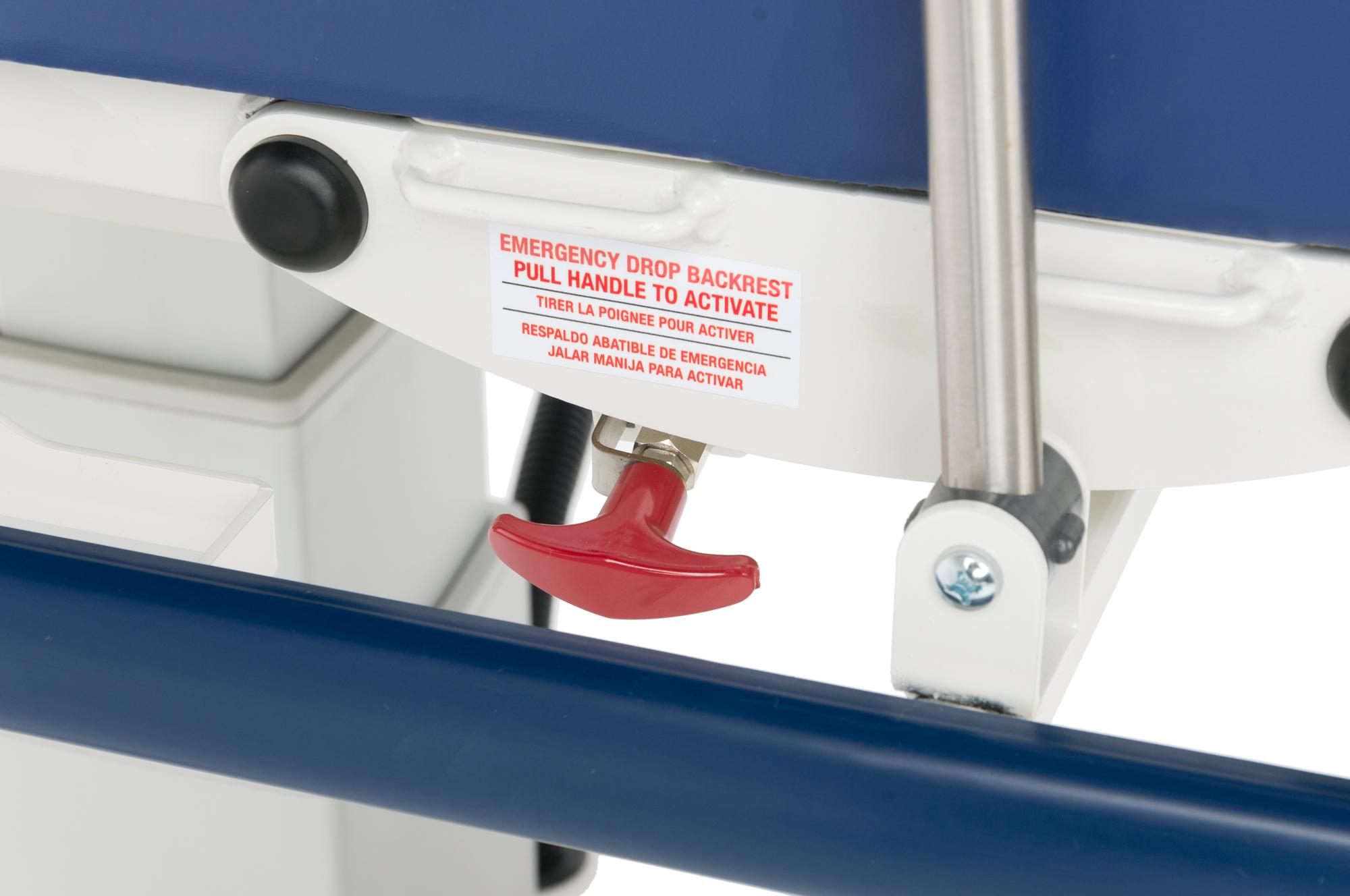

• Emergency Backrest Release to override electric/battery

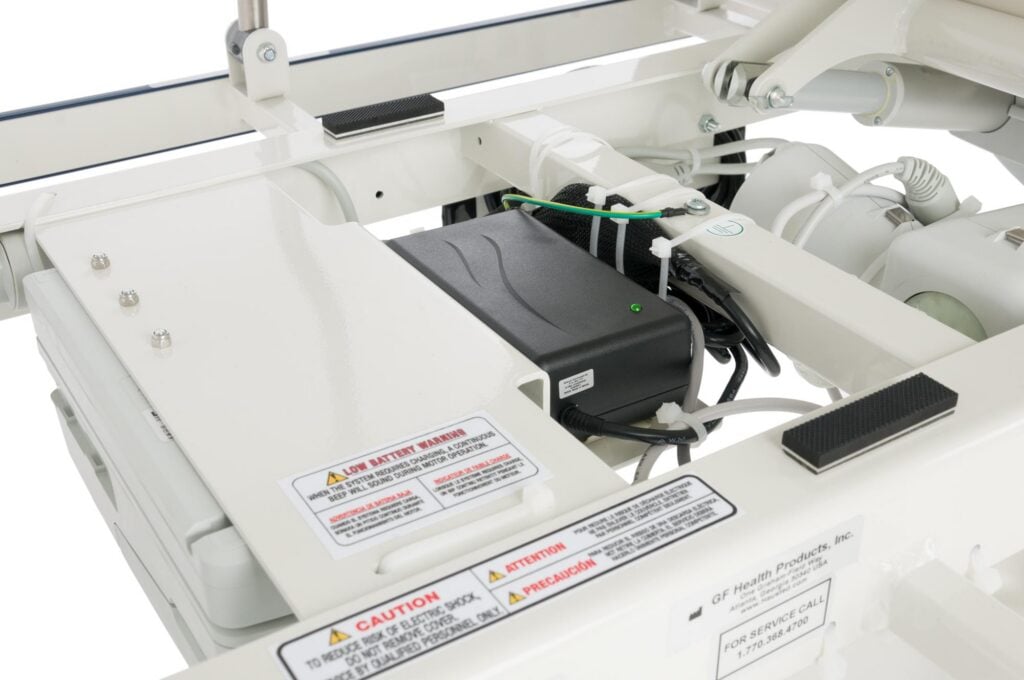

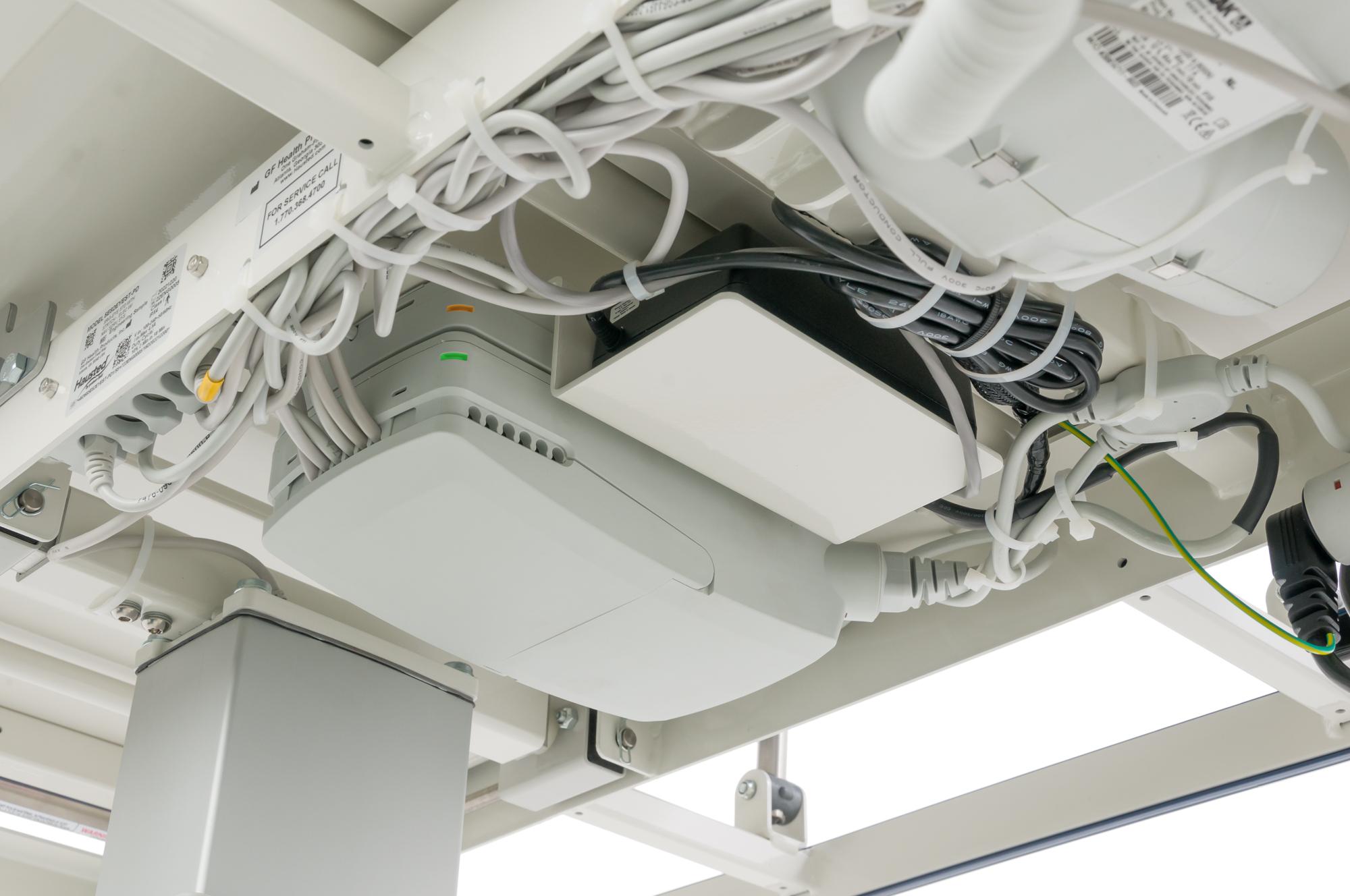

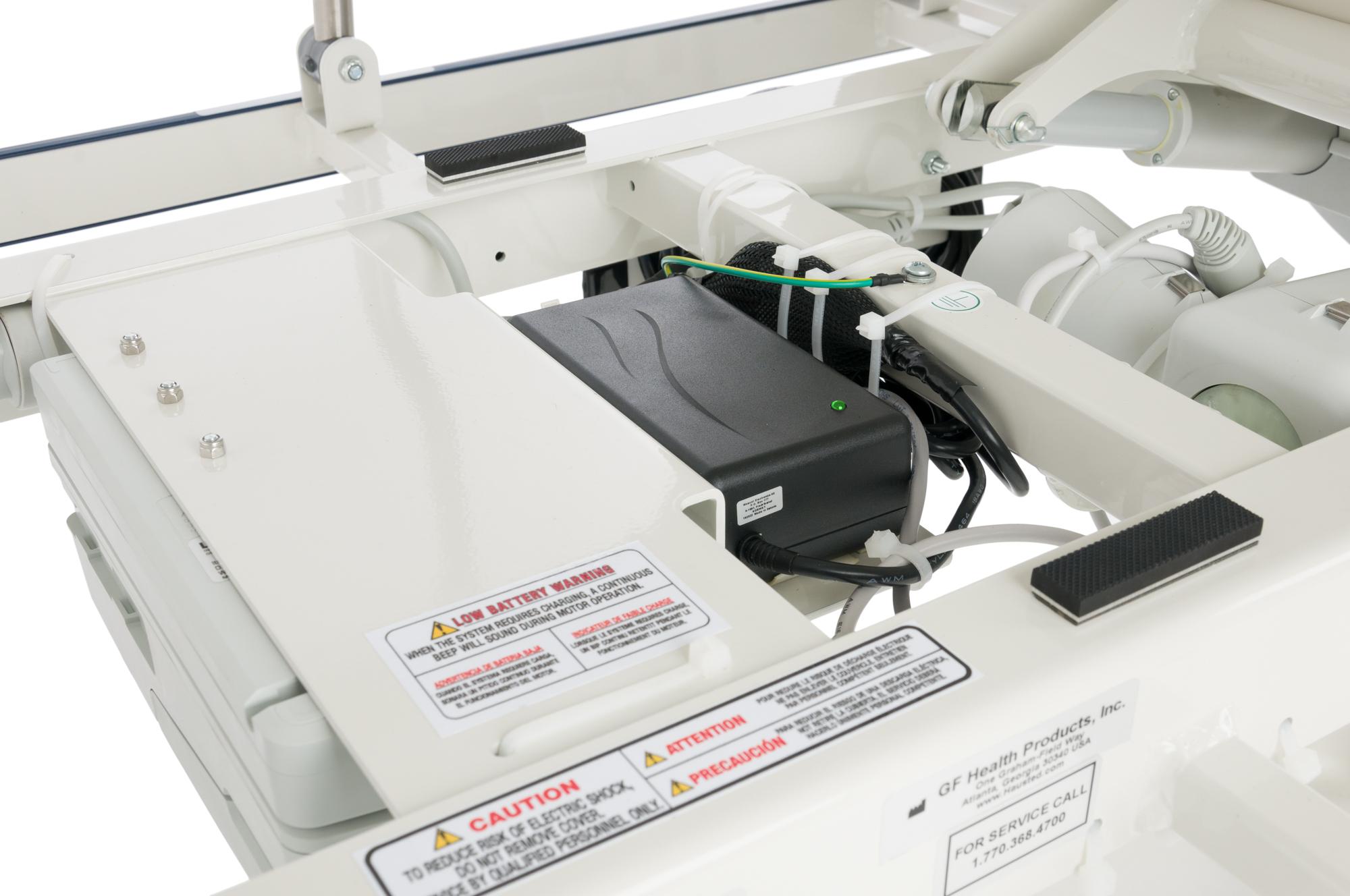

• Battery back-up allows power functions when not plugged in

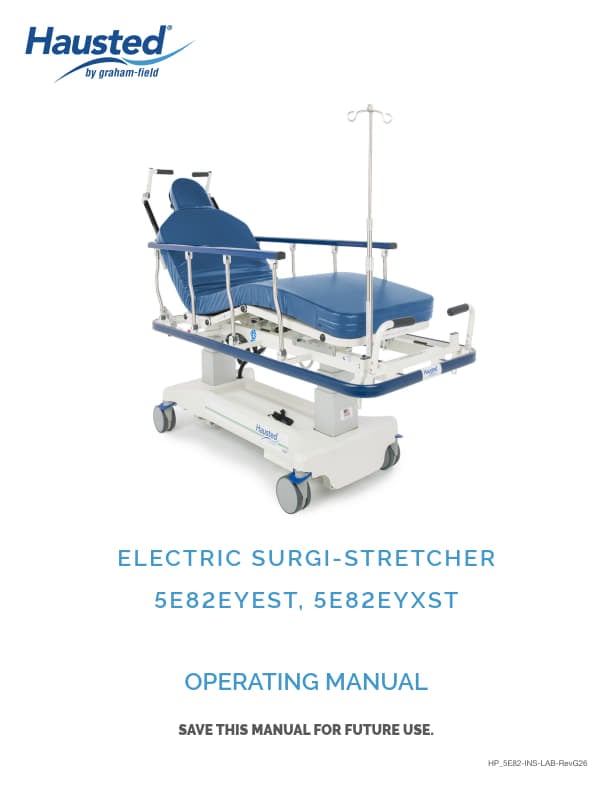

Literature

5E82 Image Gallery

Accessories

Accessory Rails

HSA400700 Surgical
HSA080025 Surgical Back Section

Armboards

HSA080017-xxx Surgical

Cassette Holder

HSA080023 Lateral X-Ray

Footboards

H00CR6B00 – Chartholder Only
H0CRW6B00 – Chartholder Only – extra wide

Footboards/Headboards – w/ Chartholder

H00006B00 Stationary
H00CR7B00 Folding Combo Extension – regular width

Footboards/Monitor Shelf – w/ Chartholder

H06883600 Extension – regular width
H06884600 Extension – extra wide

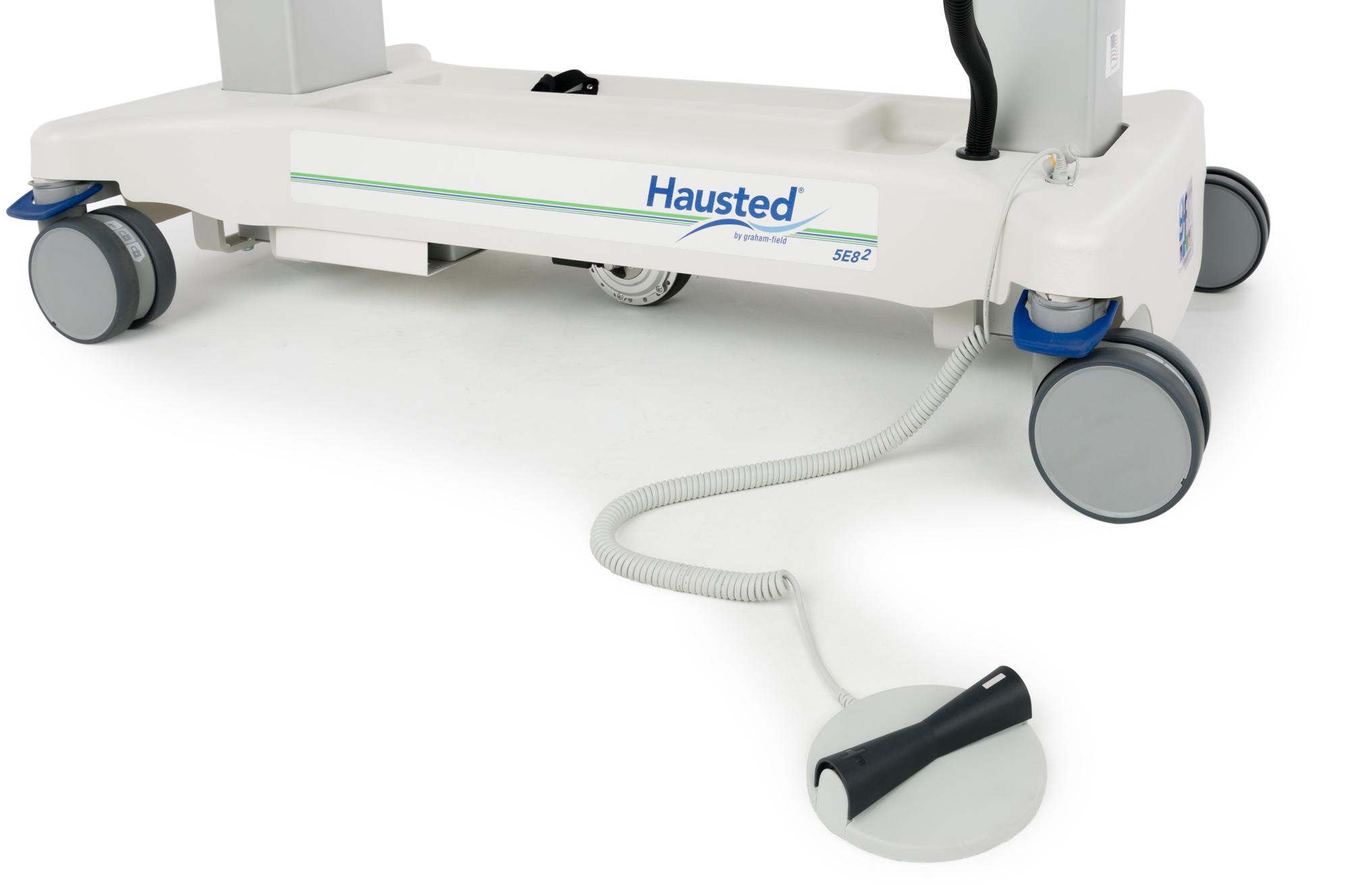

Foot Control

HSA080014 FS3 Switch – Hi/Low

Headboards

HSA078700 Pre-Op/Post-Op Extension – regular width
HSA079000 Pre-Op/Post-Op Extension – extra wide
HSA080029-xxx Ortho Hand Surgery Board

Headrests

H0101ST-xxx – Navy Set of Sizes Below:
HSA063500-xxx — Individual — Small 2″
HP150830448B-xxx — Individual — Medium 3″
HSA063500B-xxx — Individual — Large 4″

Holders

HSA080010 Vertical O2 Tank Holder
H06925700 Paper Roll

Heel Stirrups

H00N16A00 with Mounting Adapter
H00C16H00 w/o Mounting Adapter pair
H00L16M00 Adapter Clamps

IV Poles

H000E1700 Fixed Height
H000018 Stainless Telescoping
H080770 and Monitor Rod – Telescoping Stainless Steel
HSA080018 Pendant Holder

Monitor Shelf

H000N4500 – Standard
H00WN4500 – Wide

Oxygen Delivery Systems

HSA400600 – Oxyflex II Kit — Flexible Support Structure, Adapter, and Well Mount
HSA008000 – Disposable Oxyflex II Diffusion Trays — Includes 24 inch Tube 25/cs
HSA007900 – Oxyflex II Kit — Flexible Support Structure and Tuck Plate

Rail Covers

HPD0612-xxx Retracto® Pad – 6 Leg Set

Safety Straps

HSA080015 with Buckle and Clip

Trays

H06536600 Universal Patient
HSA080022 Patient – next generation

Wrist Rests

HSA078500 Dual Lateral – Half “U”
HSA078600 Full “U” – over brow
HSP100400 Full “U” – Tall – gray
