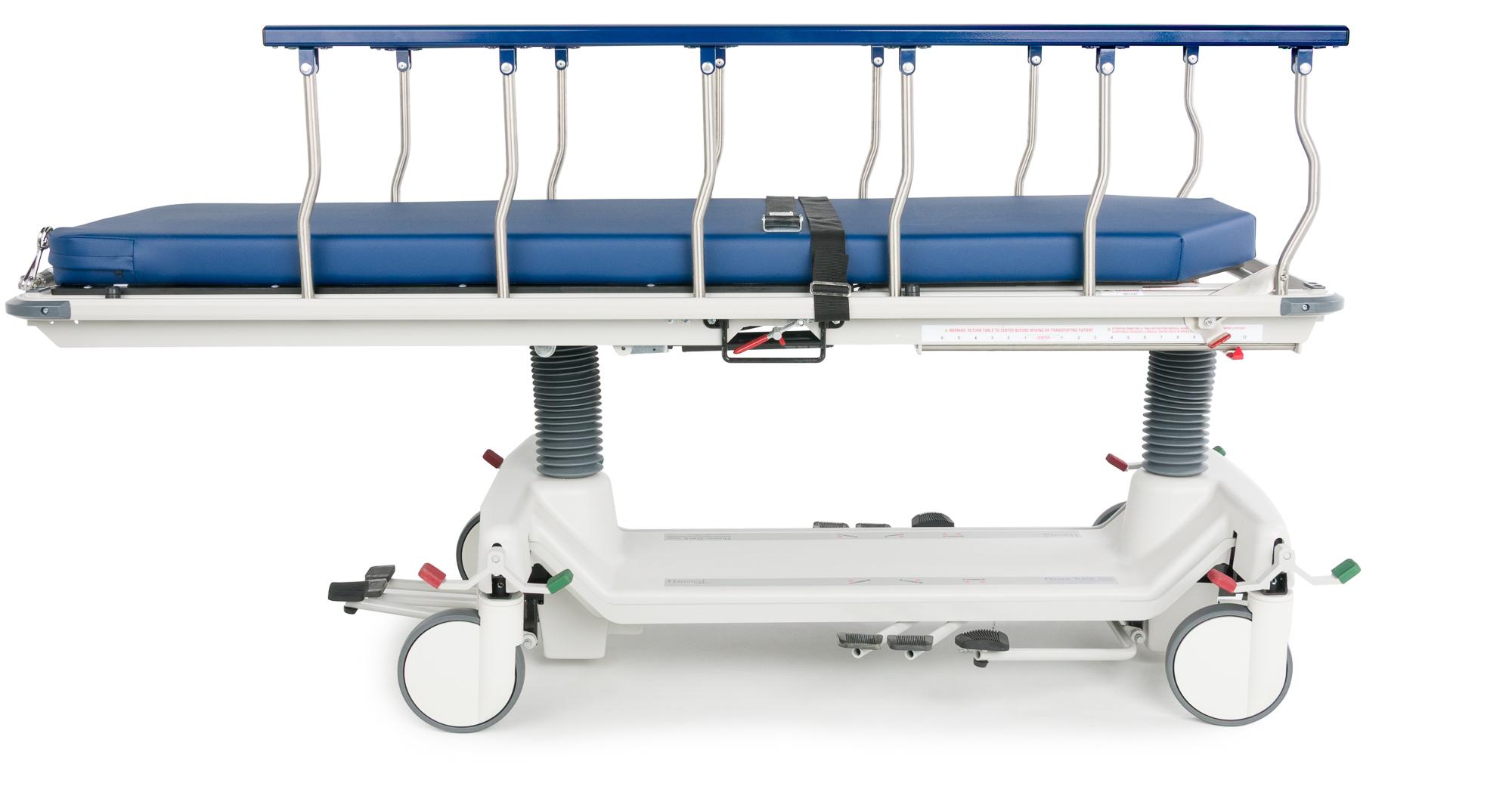

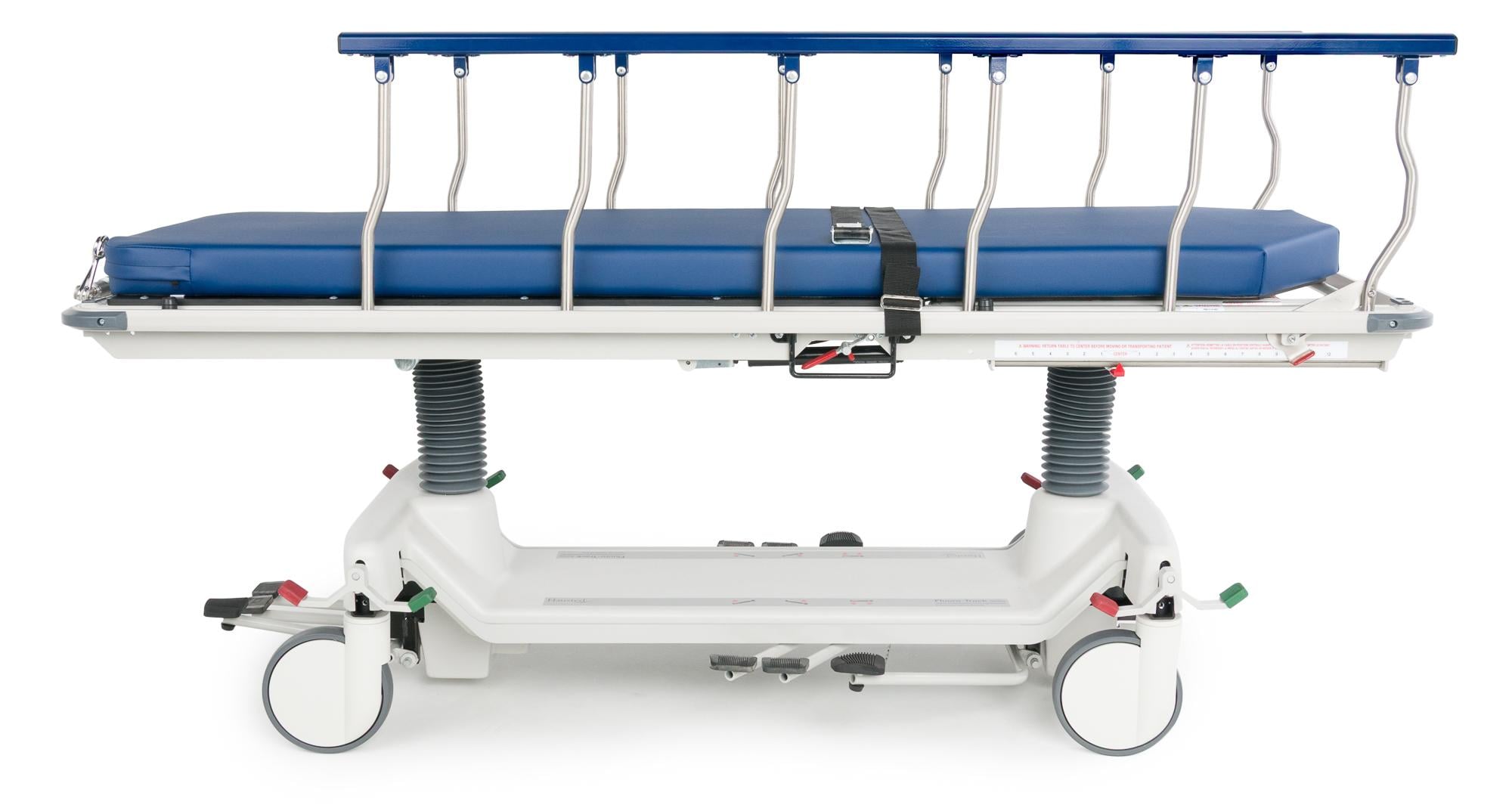

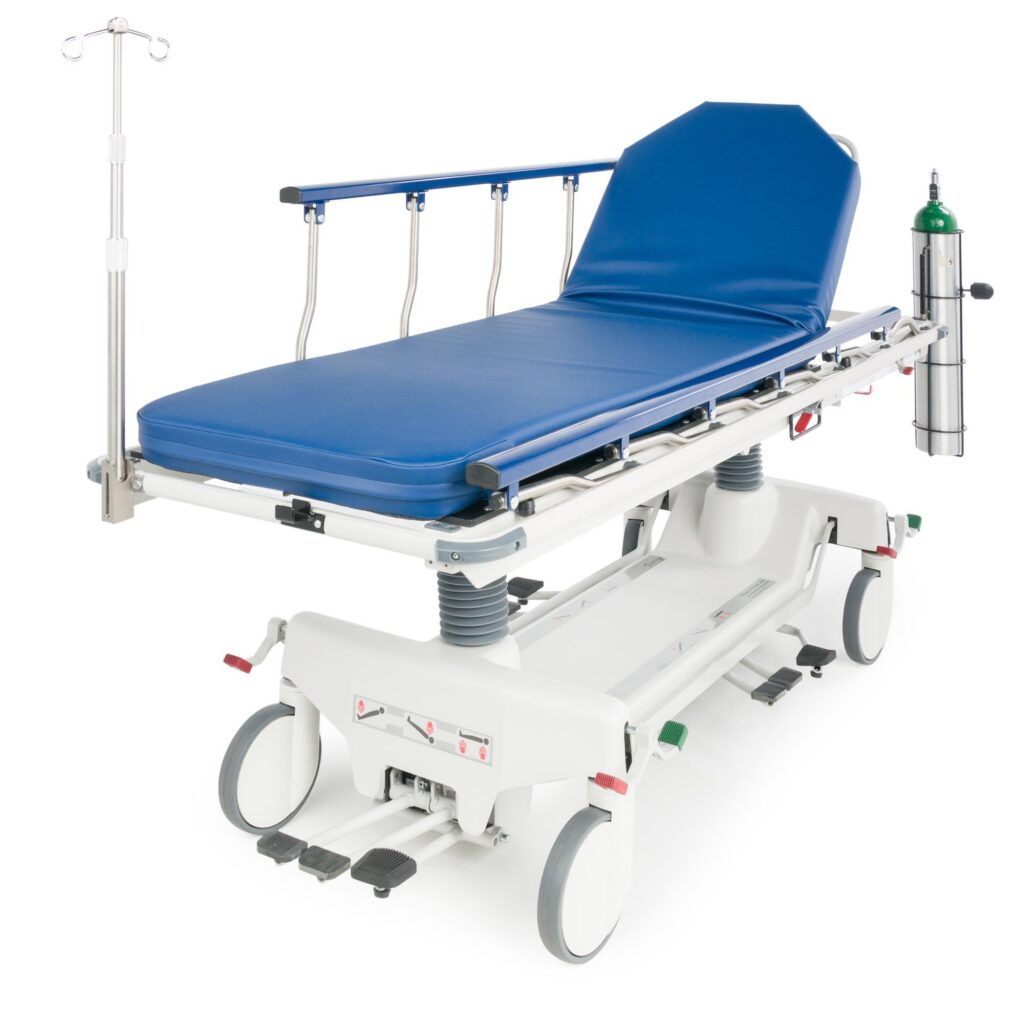

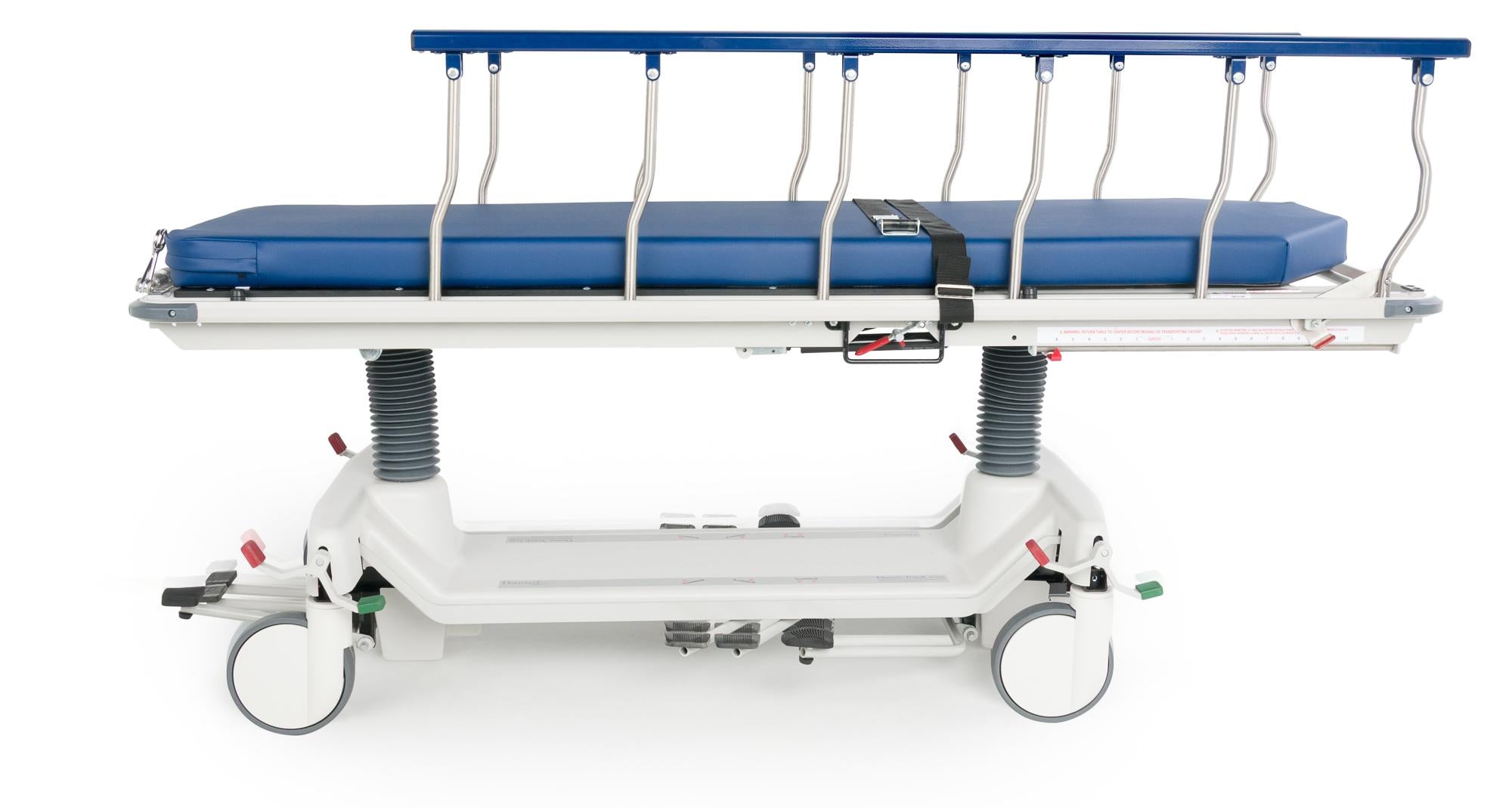

The Fluoro-Track™ stretcher is designed for use with C – Arms for fluoroscopy-guided procedures. The unique design, with a proprietary sliding top, enables a broader range of imaging capacity without repositioning the patient. The hourglass-shaped trim base accommodates a wide range of C – Arms, and offers the security of a specialty imaging table with the mobility of a stretcher.

493RPCST

Features

  • Weight Capacity – evenly distributed: 500 lb (227 kg)
  • Full length, radiolucent top translates to either end
  • 6 inches (15.24 cm) towards the head and 12 inches (30.48 cm) towards the foot
  • Hourglass base design with trimmed sides creates an excellent window for C – arm access from both sides
  • 23 inch (53 cm) C – arm clearance
  • Increased maneuverability with dual column base support
  • Stainless steel 6 leg, 3 position Retracto™ Rails with built-in push-steer handles
  • Dual side foot controls for easy height adjustment and Trendelenburg
    positioning
  • 3 inch (8 cm) comfort mattress pad with Sure-Check cover

Accessories

  • 3 Stage permanently mounted IV pole
  • Built-In oxygen tank holder (Base)
  • Safety strap

Optional Accessories

  • Surgical Accessory Rail (Retracto™ Rails) – H076336
  • Armboard and Surgical Rail Adapter – H07633400
  • Lateral X-Ray Cassette Holder – H00005400
  • Drainage Bag Hook – H12884A
  • Articulating Headrest 22 inches (57 cm) – H131490
  • Footboard with Monitor Shelf and Chartholder – H06883600
  • Head/Footboard (Stationary) – H00006B00
  • Footboard with Chartholder – H00CR6B00
  • Heel Stirrups with Mounting Adapter – H00N16A00
  • Fixed Height IV Pole, 42 inch (107 cm) – H000E1700
  • Telescoping IV Pole 27 inches (68cm) – 54 inches (137 cm) – H000018
  • Mobile IV Stand Attachment – H06589700
  • Monitor Shelf (Standard Width) – H000N4500
  • Vertical Oxygen Tank Holder Assembly – H12845000
  • Paper Roll Holder – H06925700
  • Universal Patient Tray – H06536600
  • Under Fowler Utility Tray – H13317000
  • Push Handle Assembly – H07565600
  • Retracto™ Rails – H076336
  • Rail Pad Cover (6 Leg Retracto™ Rail) – H07562600
  • Safety Straps with Buckle – H00001200
