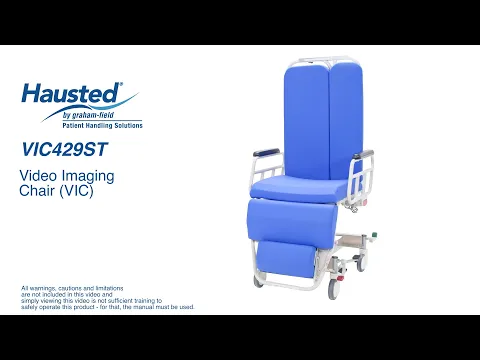

VIC429ST

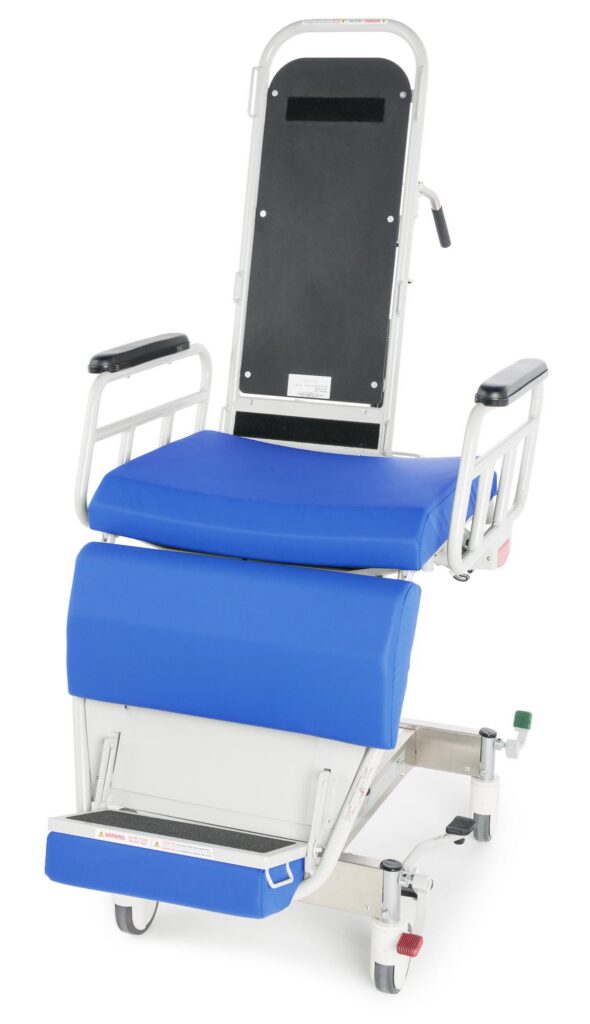

The Hausted Video Imaging Chair (VIC) is designed specifically for modified barium swallow studies and AP and lateral imaging and functions as a procedural chair for diagnosis and treatment.

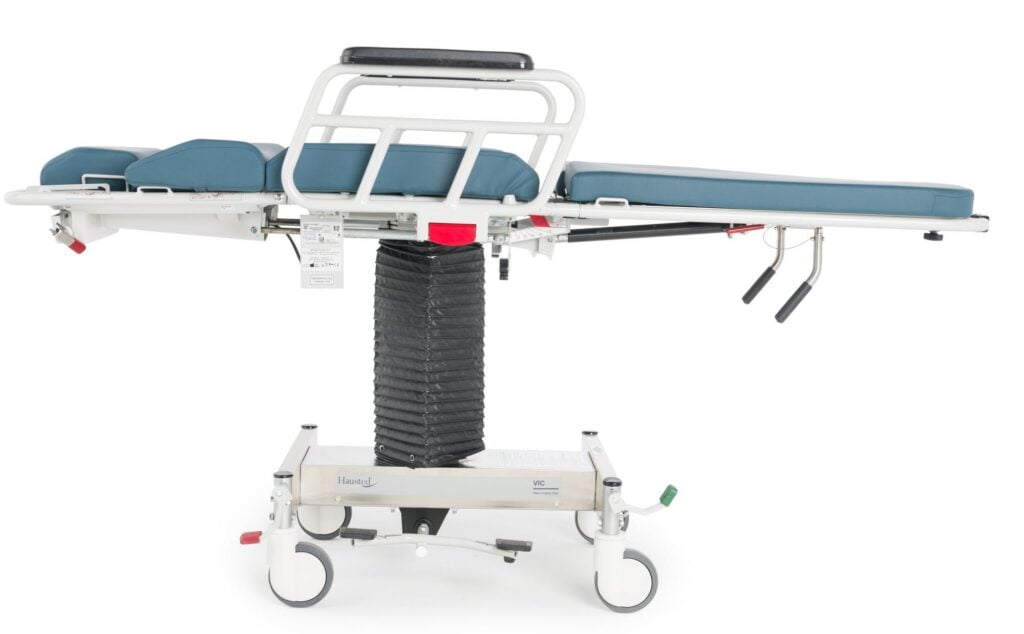

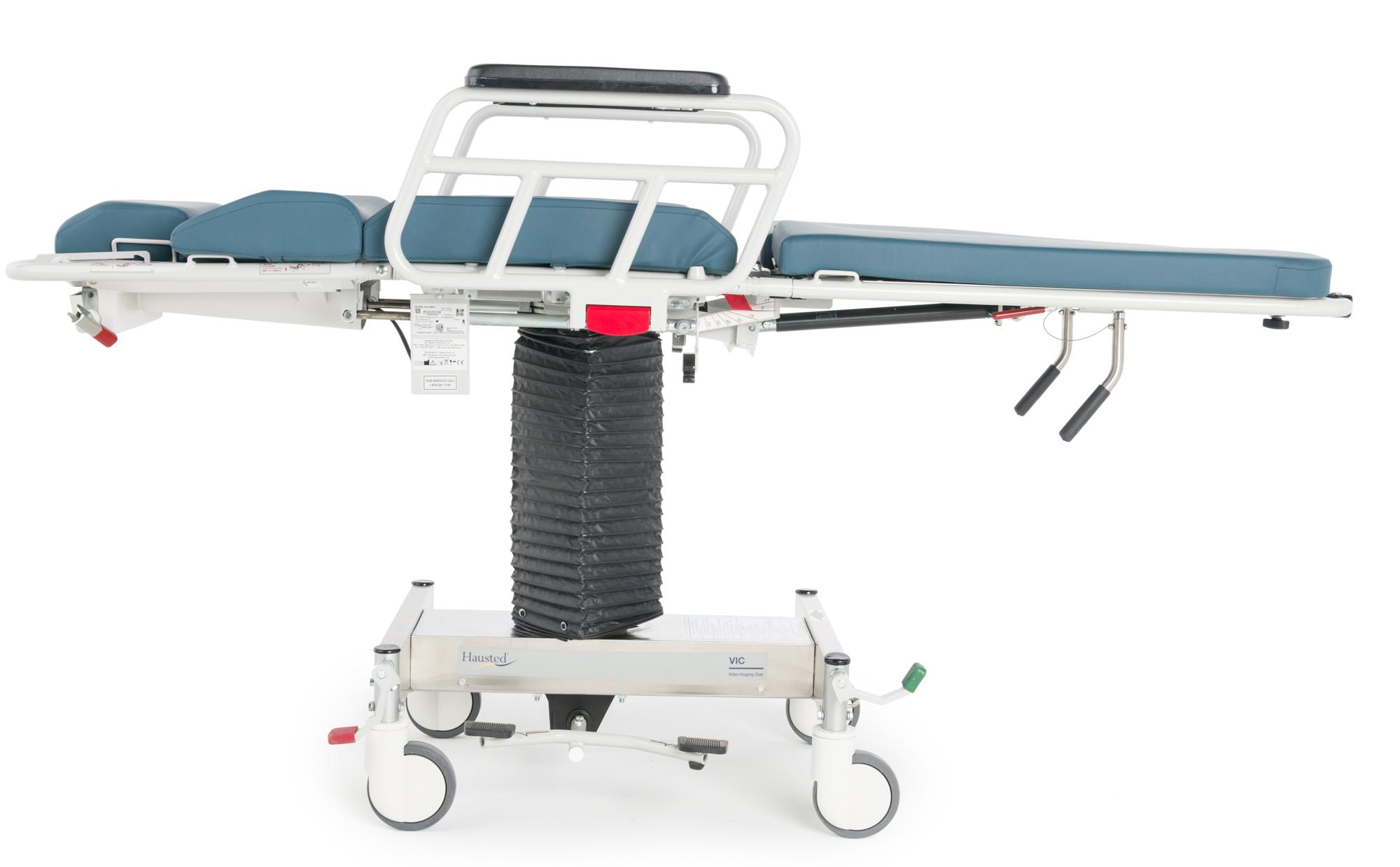

A short base is easy to maneuver in small rooms with large imaging equipment. Radiolucent backrest adjusts to a fully upright position of 90° for clear, unobstructed view for imaging. Positioners are available for pediatric procedures. This unit adjusts easily from sitting to supine and provides a 90° rotating seat section with a stable work surface during patient treatment.

Transport, treatment, procedure, and recovery can be performed in the same unit to improve case turn-around and stream-line patient handling.

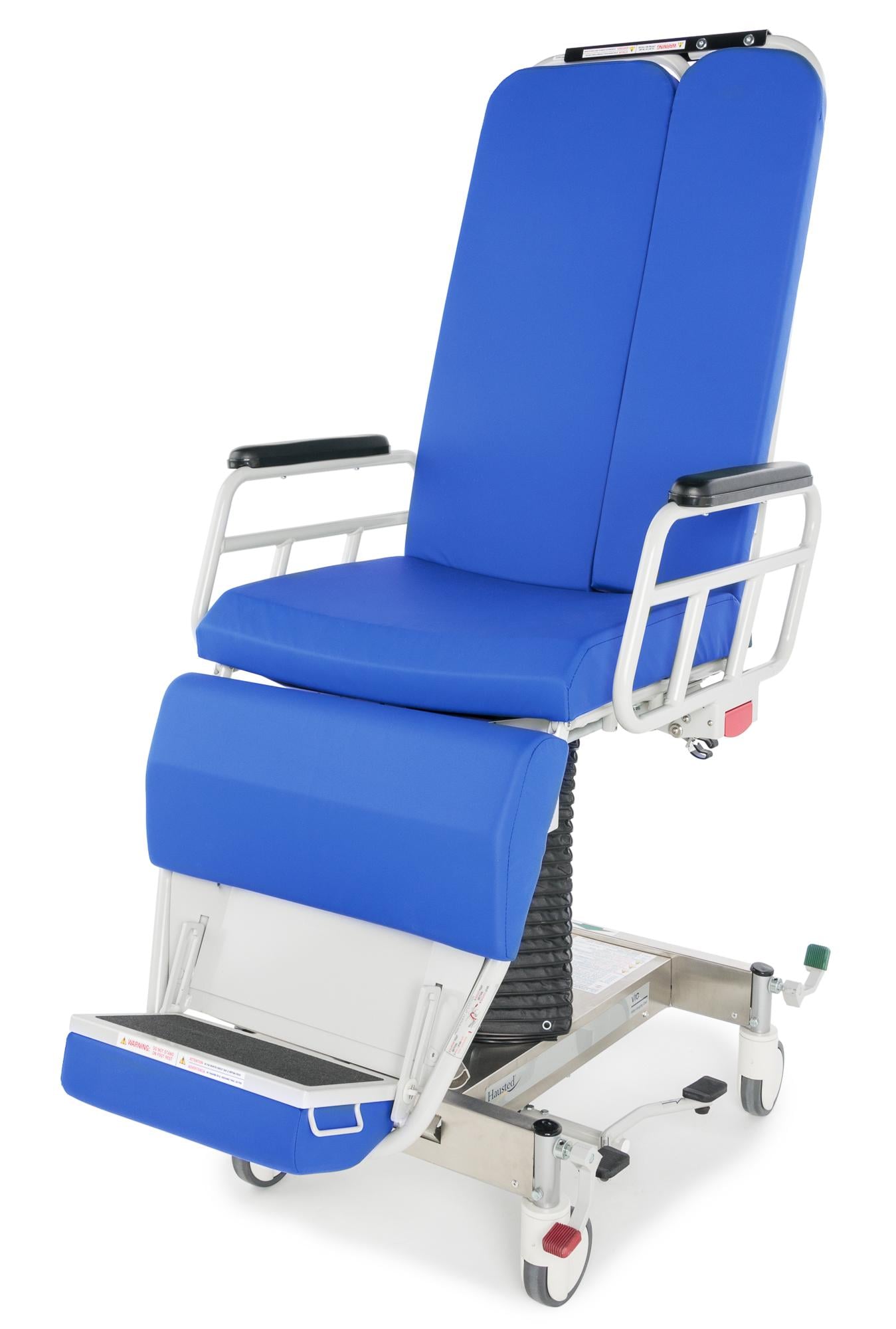

Hausted® Video Imaging Chair

Features

  • Specially-designed back Section accommodates the space confinements of large imaging equipment.
  • The radiolucent back section provides a clear, unobstructed site for imaging used during transport, easy to remove for radiological procedures.

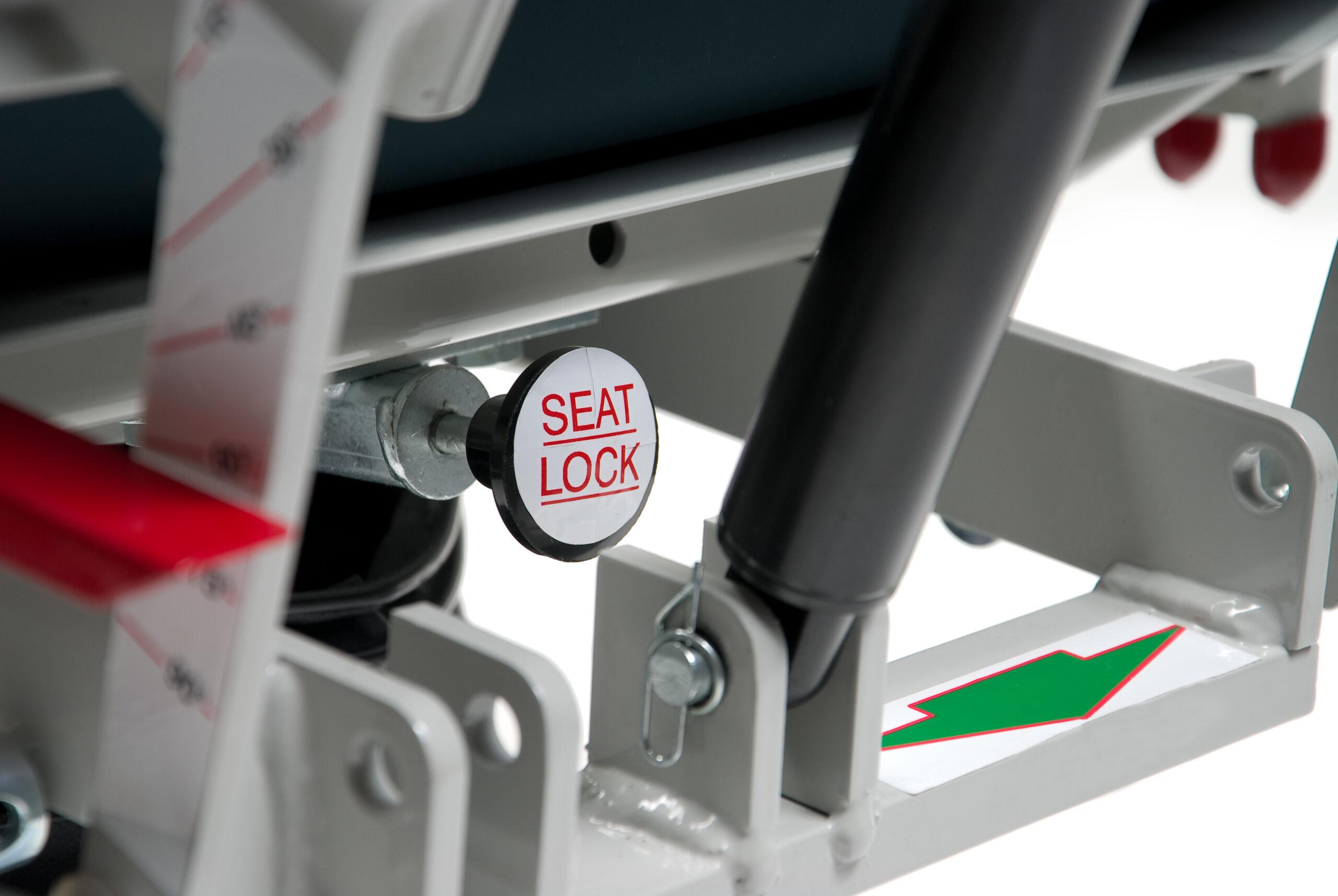

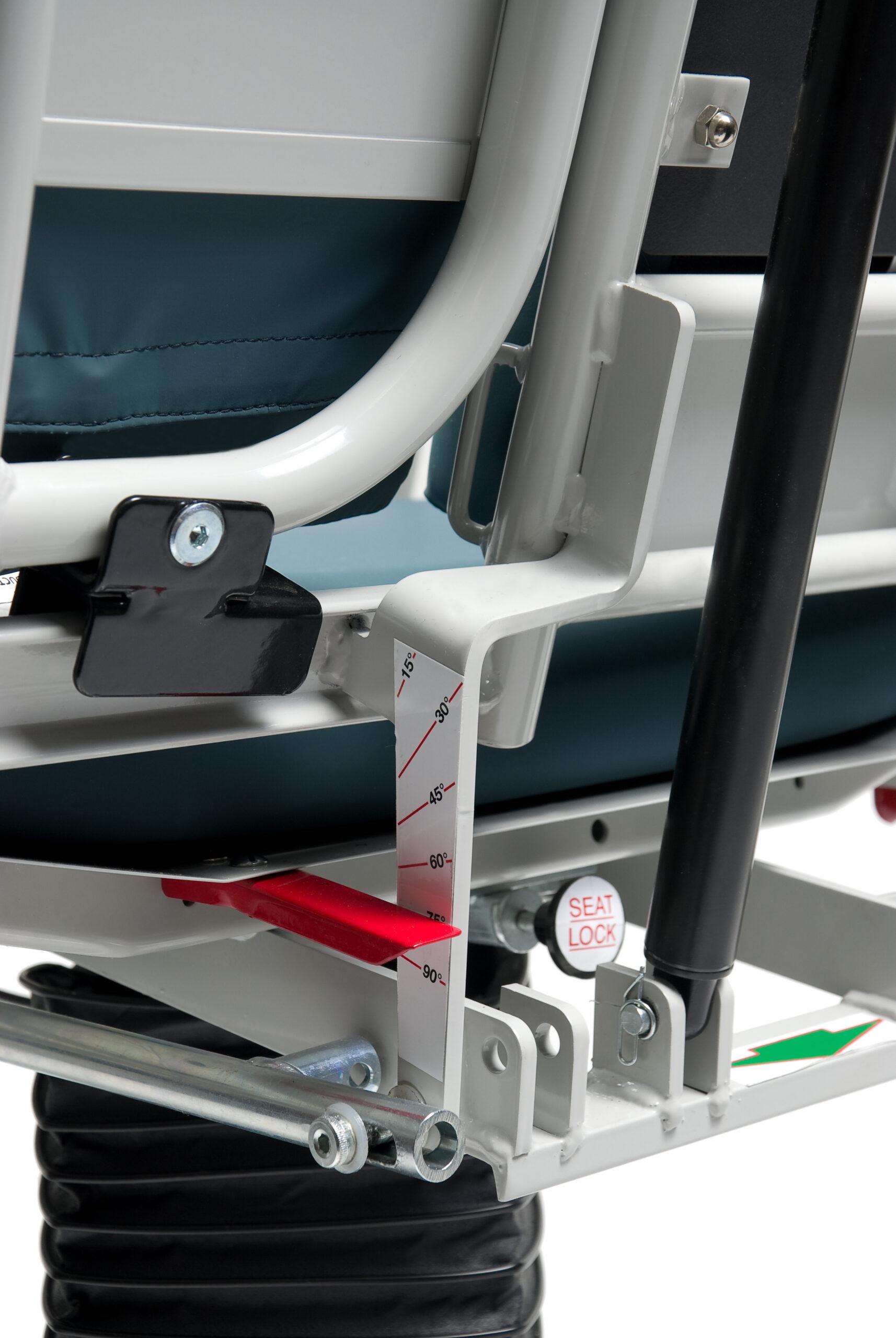

  • Easy-to-operate rotating seat section saves time in repositioning the patient for anterior-posterior and lateral imaging views.

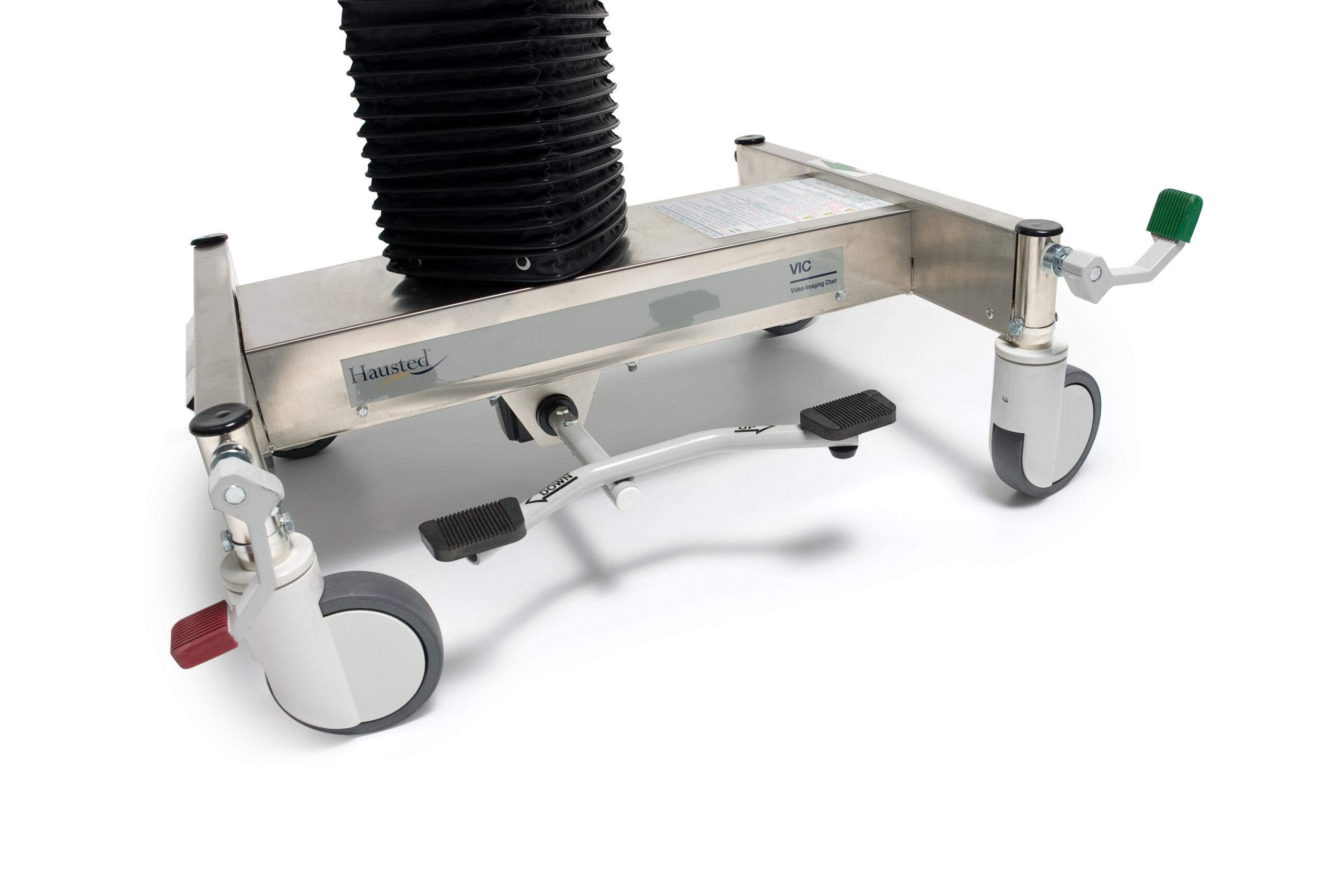

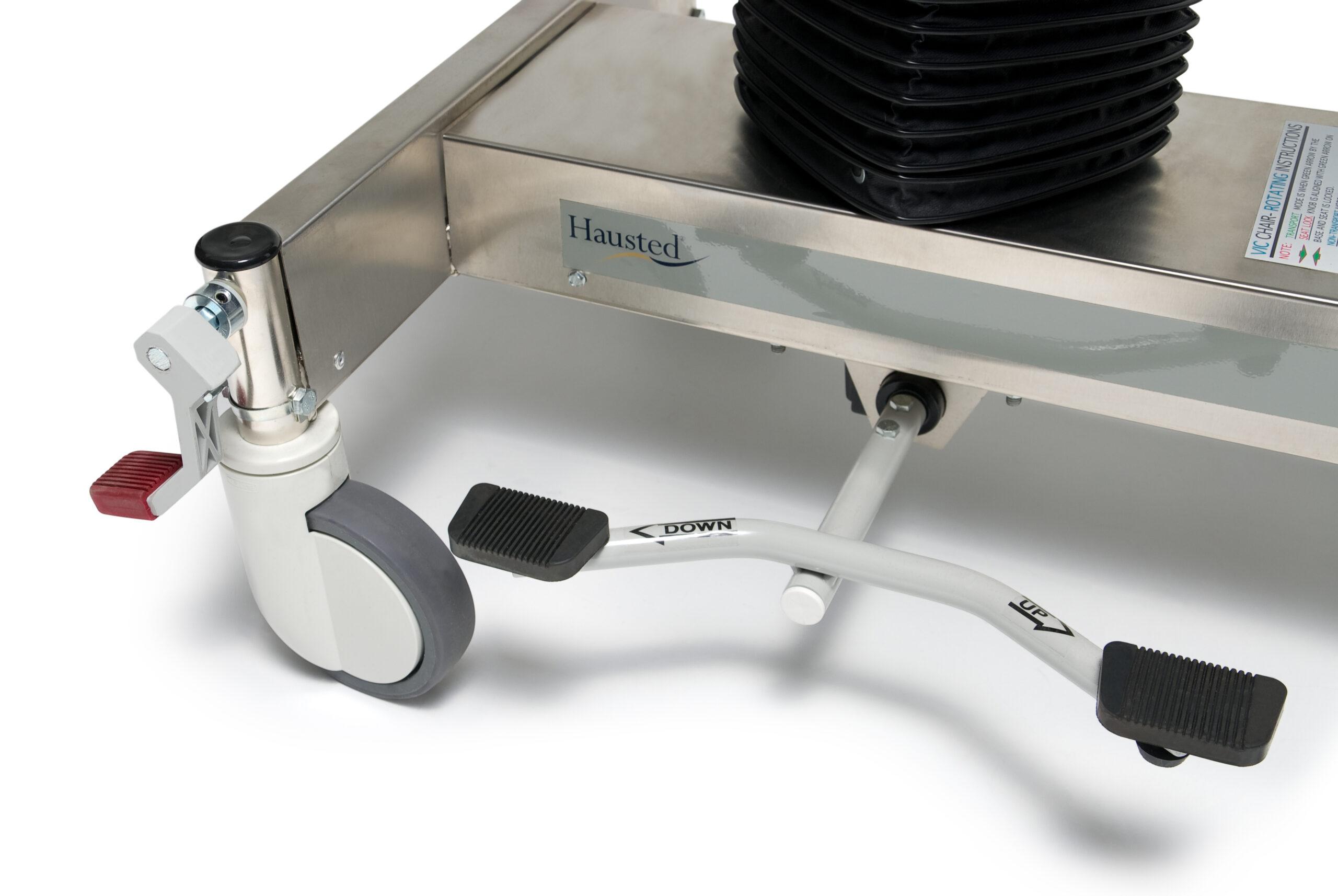

  • Dual side hydraulic foot pedal controls for height adjustment: 23.50 inches (60 cm) to 31.50 inches (80 cm)

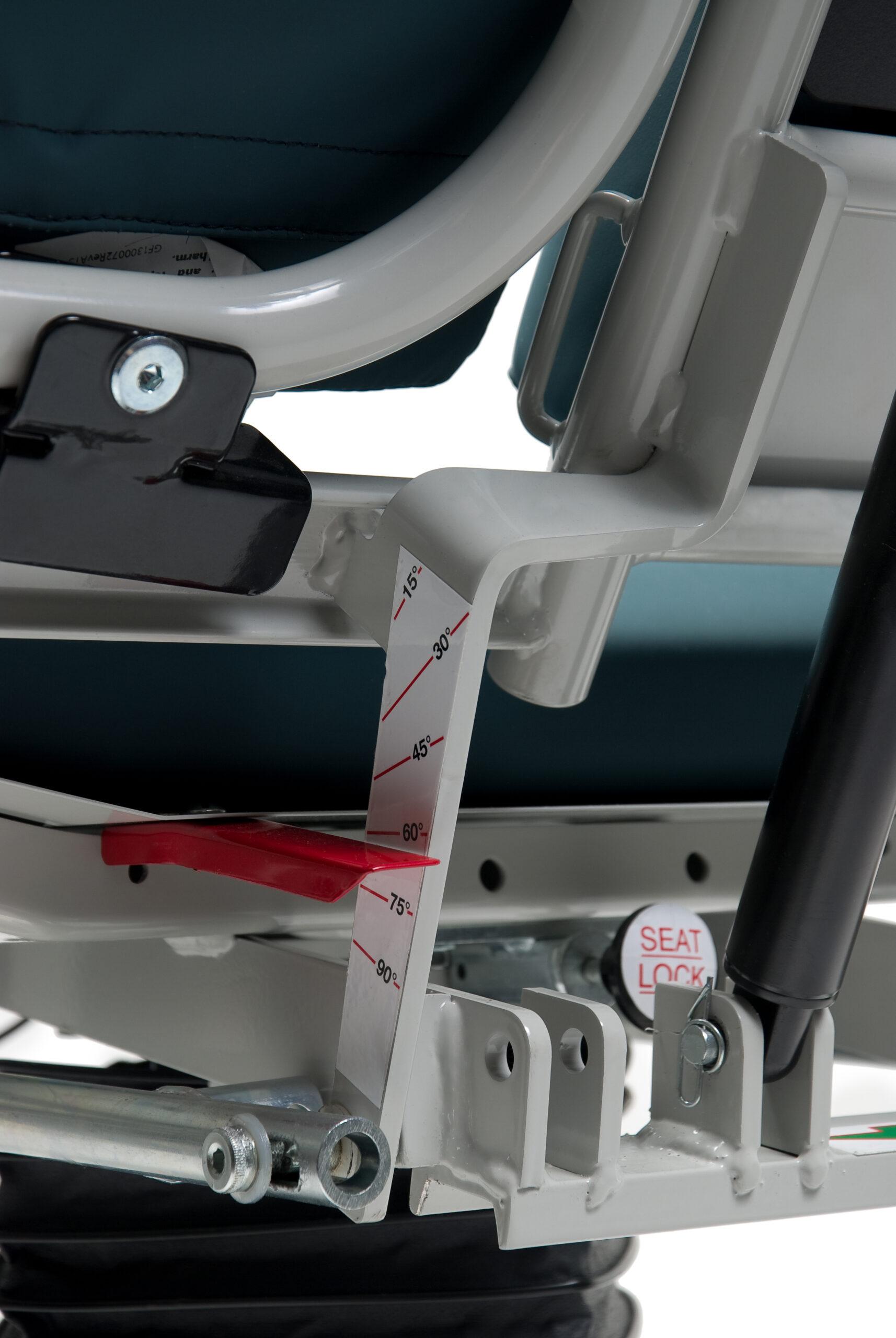

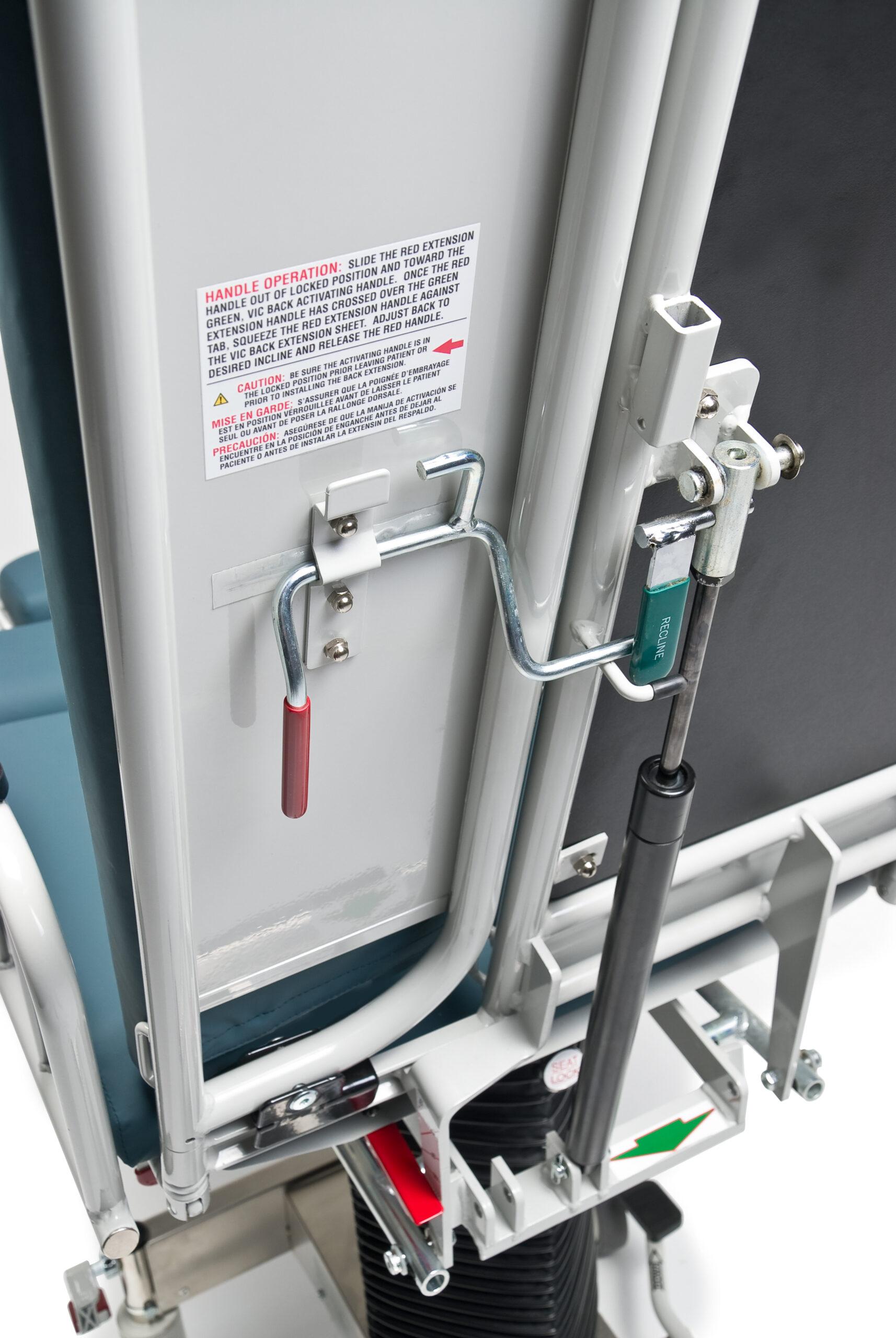

  • Pneumatic assist backrest: 0° to 90°
  • Trendelenburg: 10°

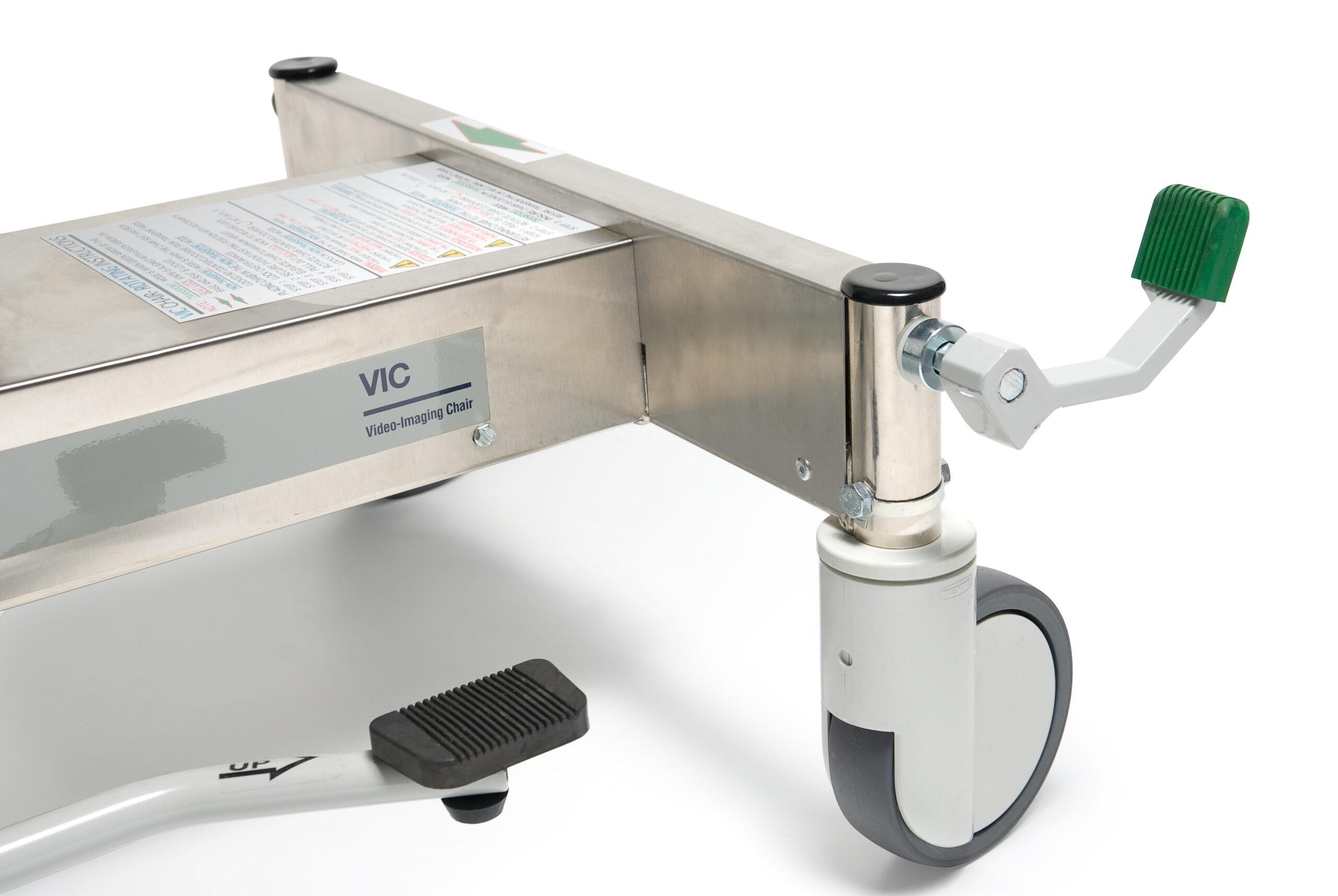

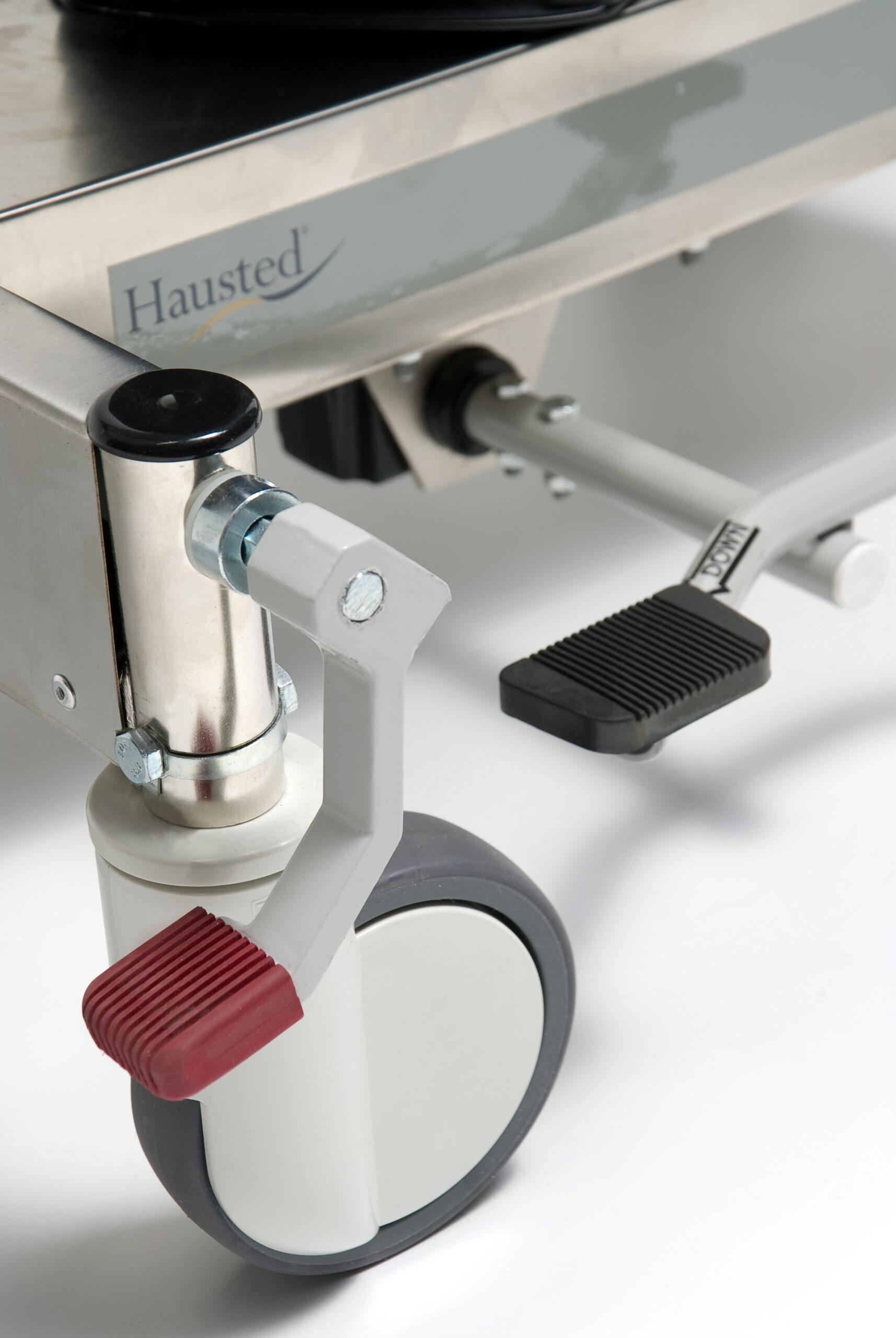

  • Four-Wheel brake and steer system operable from patient’s left side of unit feature 5 inches easy-rolling casters

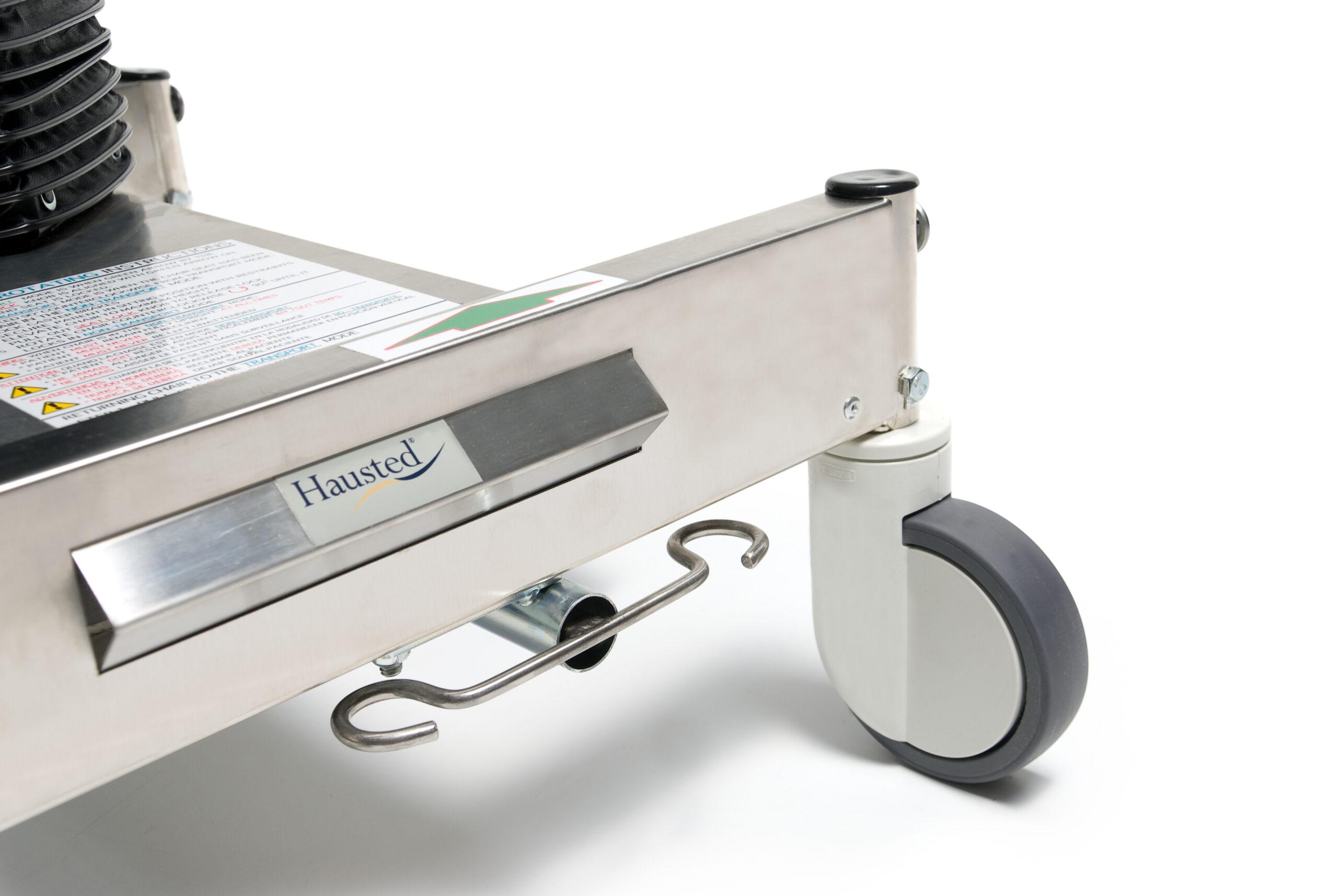

  • Easy to clean stainless steel base cover
  • Polymer coated steel litter top

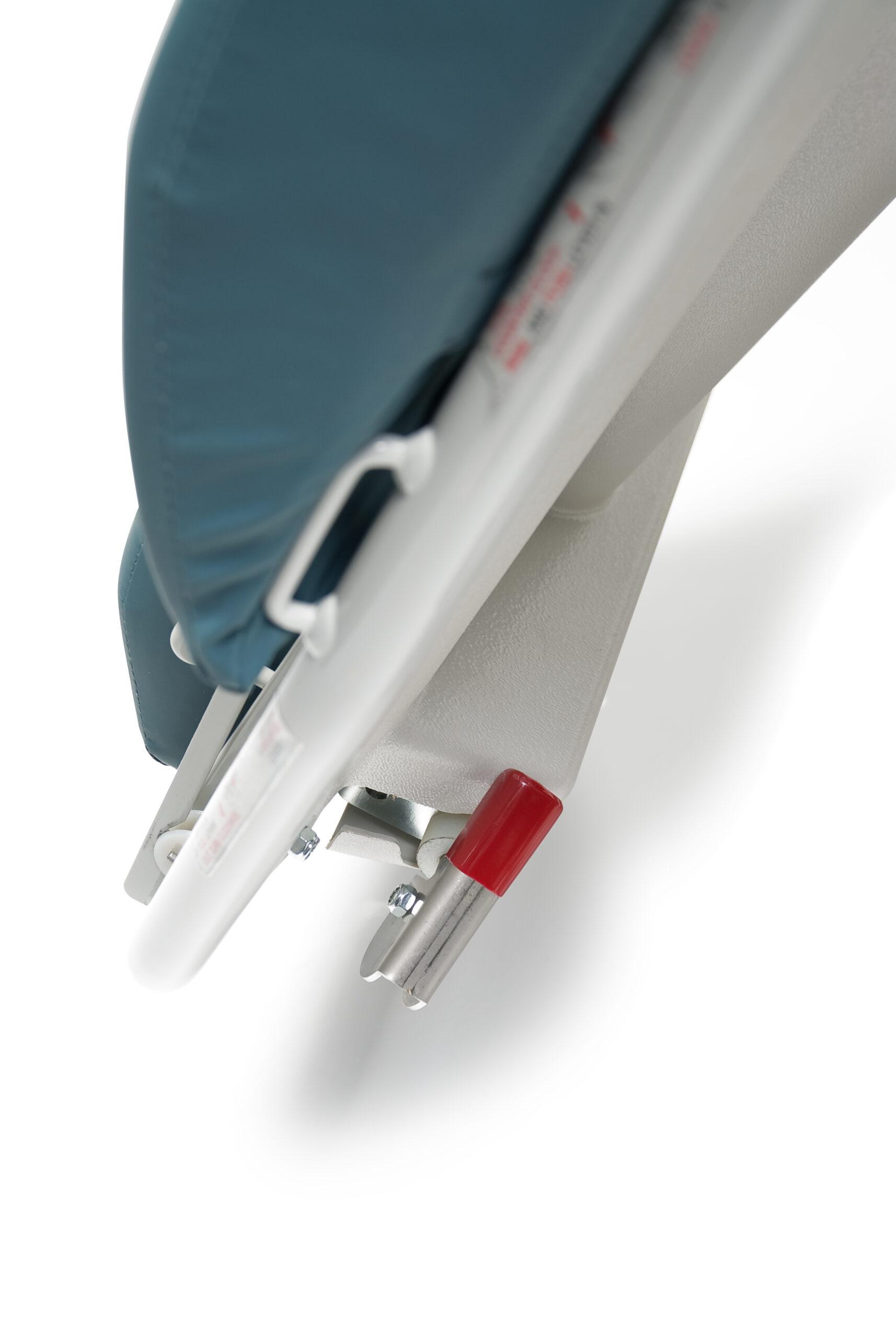

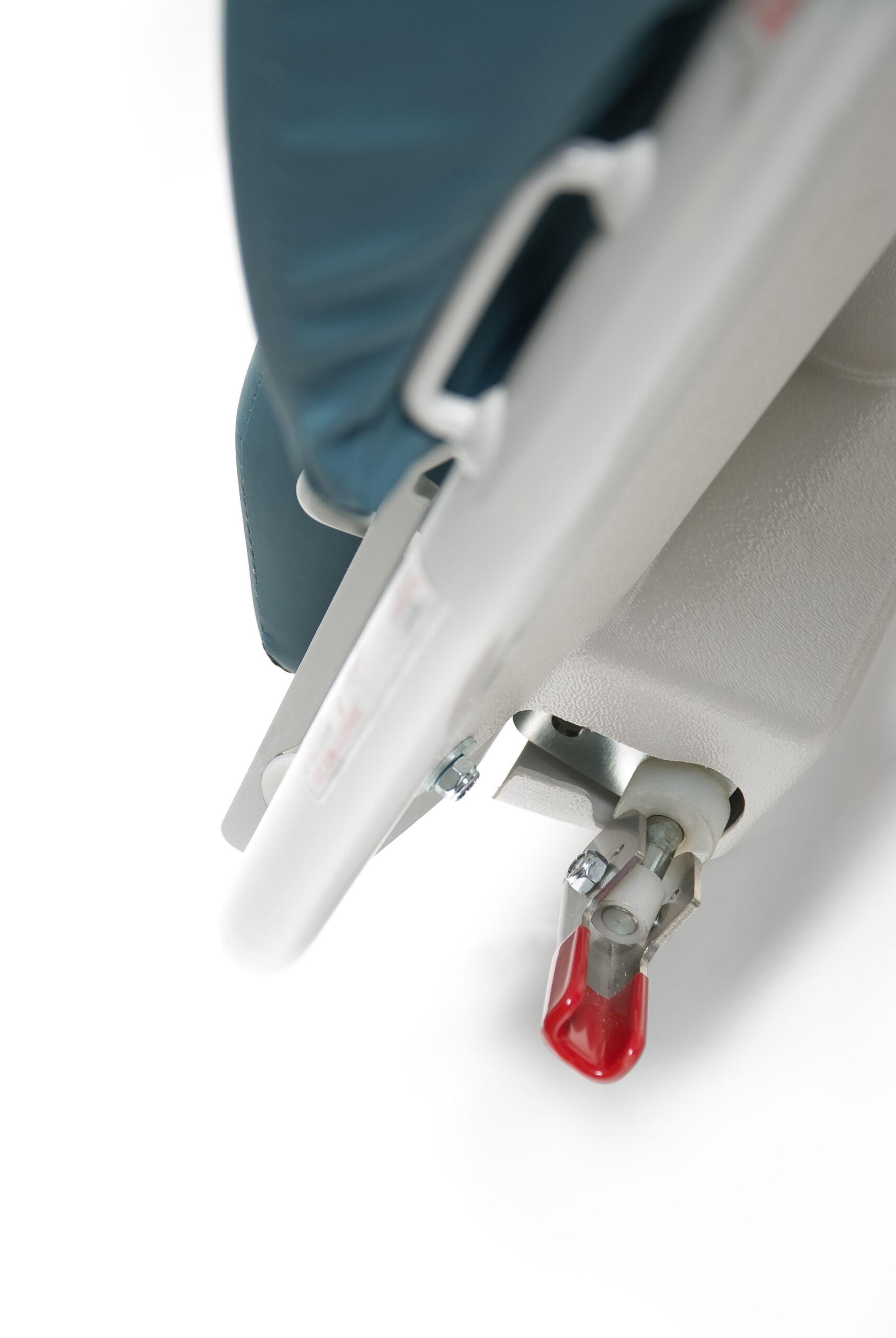

  • Fold-Down footrest (height adjustable)
  • Accessory wells (2 on each side)
  • Built-In chart holder and removable push handles
  • Swing Down – tuck-under rails with padded armrests maintain patient security
  • Patient surface: 22 inches (56 cm) x 70.50 inches (179 cm)
  • Maximum Weight Capacity 325 lb (147 kg) – EVENLY DISTRIBUTED
  • 3 inch (8 cm) Sectional mattress pad, Primastretch Fabric.

Included Accessories

  • Telescoping IV pole
  • Safety strap set:
    • Safety Strap Hook and Loop – H066951
    • Safety Strap Extra-Wide Hook and Loop – HSA071600
    • Universal Head Restraint – HSA071700
    • Standard Safety Strap Hook and Loop – HAPC01200

Literature

Hausted® Everything Flyer
Hausted® Uncrating Instructions

Accessories

Accessory Mounting RailsHSA010000Surgical
ArmboardsH065990Seated without Pad
ArmboardsH06599000Seated Assembly with Pad
Foot Extension H080015Chair
HoldersH13008001Paper Roll

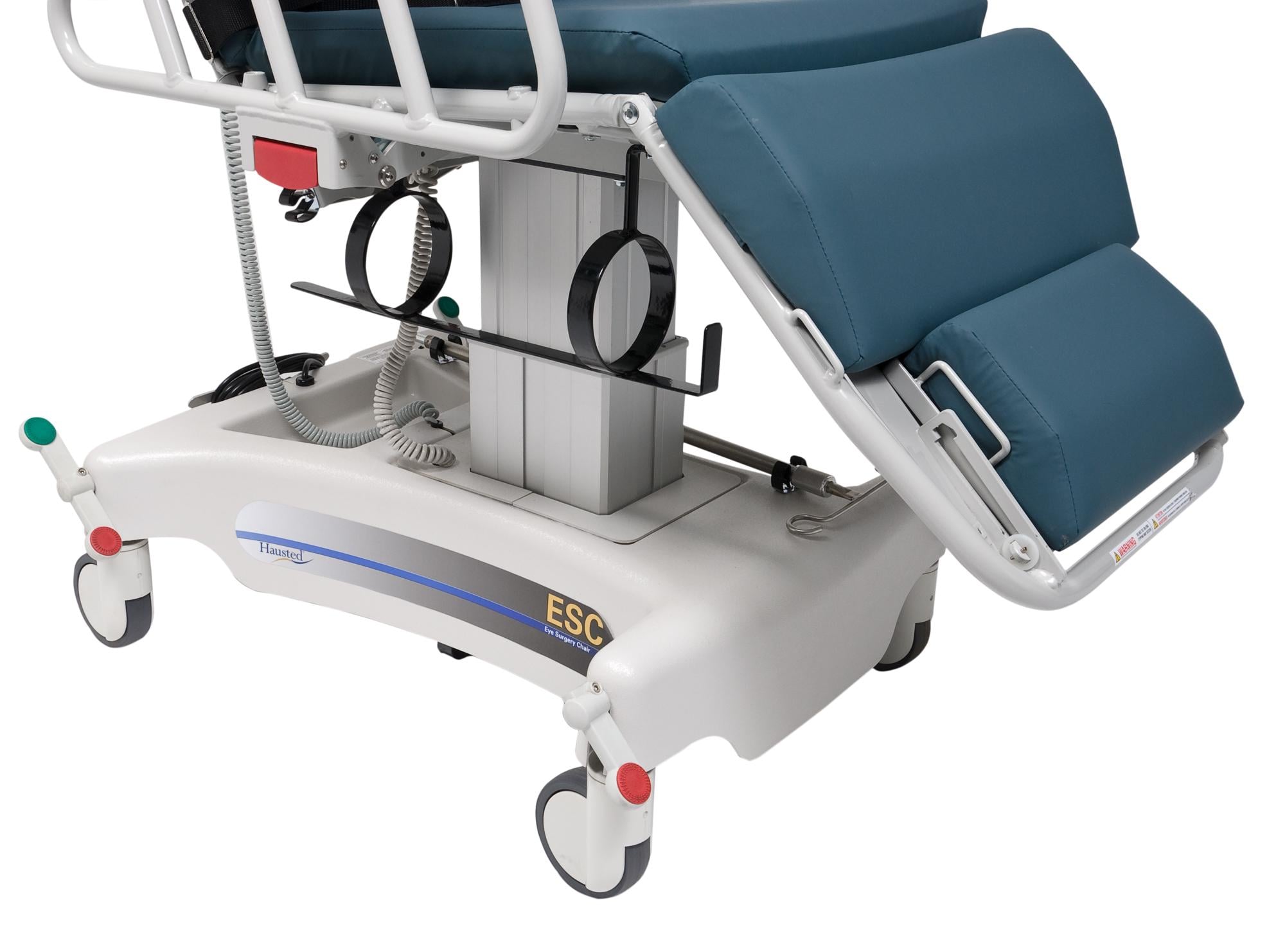

Holders HAPC14D00Oxygen Tank
IV Poles H000E1700Fixed Height, Removable
IV Poles H000018Telescoping
IV Poles HSA080018Pendant Holder
IV Poles H080770Monitor
Oxyflex II HSA008000Disposable Diffusion Trays
Oxyflex II HSA080003Delivery System

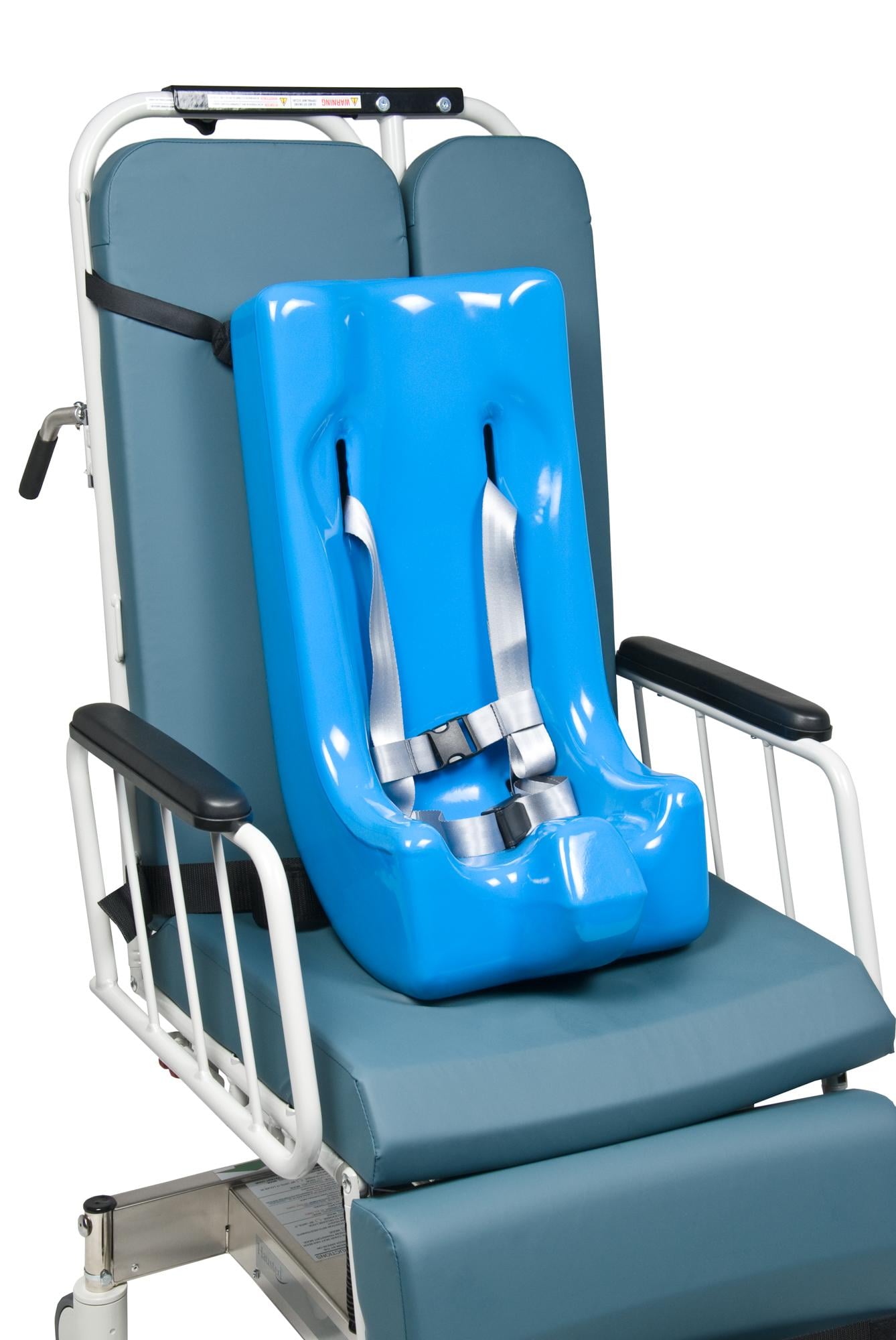

Positioners HSA063600Pediatric – small
Positioners HSA063700Pediatric – medium
Positioners HSA063800Pediatric – large
Safety Straps — Hook and Loop HAPC012LExtra-Long
Safety Straps — Hook and Loop HSA071600Extra-Wide
Safety Straps — Hook and Loop H066951Standard
Safety Straps — Hook and Loop HAPC01200Standard (with Two Straps)
Safety Straps — Hook and Loop HSA0716LExtra-Long
Trays H080268Side Utility (Stainless Steel)
Trays H06124000Utility
